32E2R042M16-SCRD16-CF
32E2R042M16-SCRD16-CF
32E2R042M16-SCRD16-CF

32E2R042M16-SCRD16-CF

UGC DOR7999353
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$321.00 CAD - $321.00 CAD
$321.00 CAD
$321.00 CAD - $321.00 CAD
$321.00 CAD

Vendu en lots de : 1

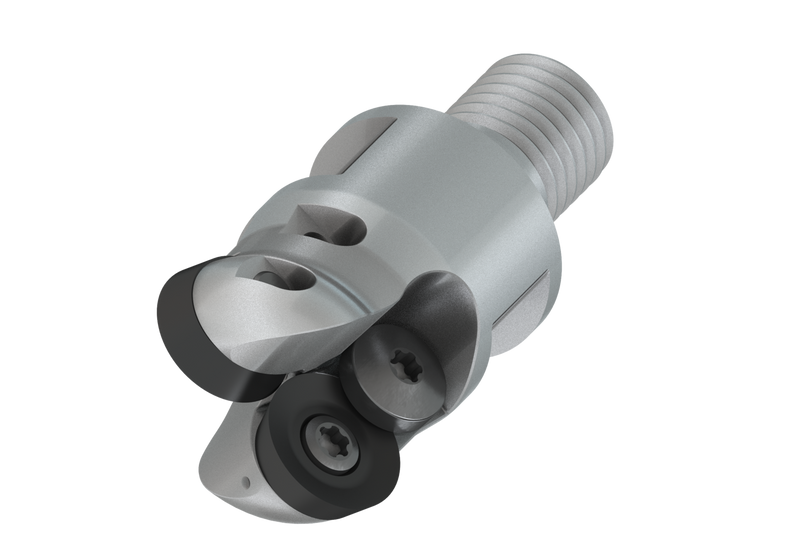

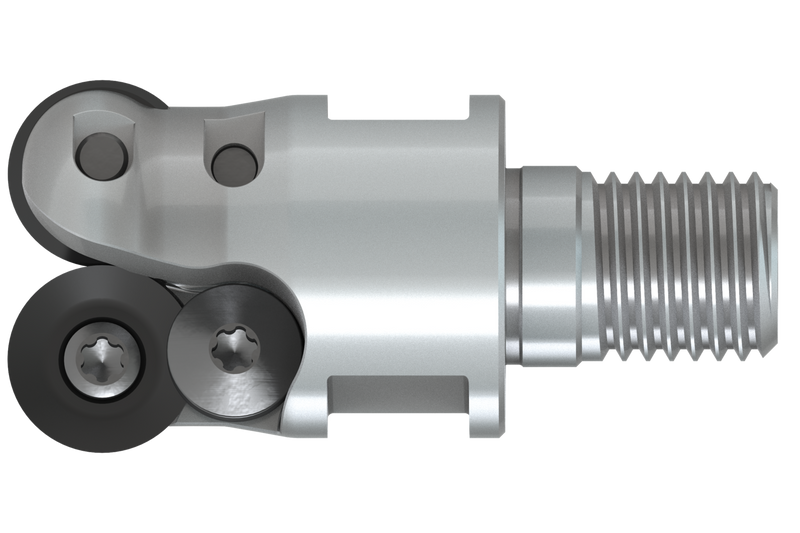

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face RD.. 1604MOT ou RDHT 1604MO-FA, diamètre de coupe jusqu'à 32 mm avec queue filetée M16 pour porte-outils modulaires standard, longueur fonctionnelle de 42 mm et longueur en porte-à-faux de 65 mm, arrosage central pour le surfaçage, le copiage, l'usinage en rampe, le plongée progressive et l'usinage hélicoïdal avec une profondeur de coupe maximale de 4 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E2R042M16-SCRD16-CF
Product Number7999353
Product FamilySRD16
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

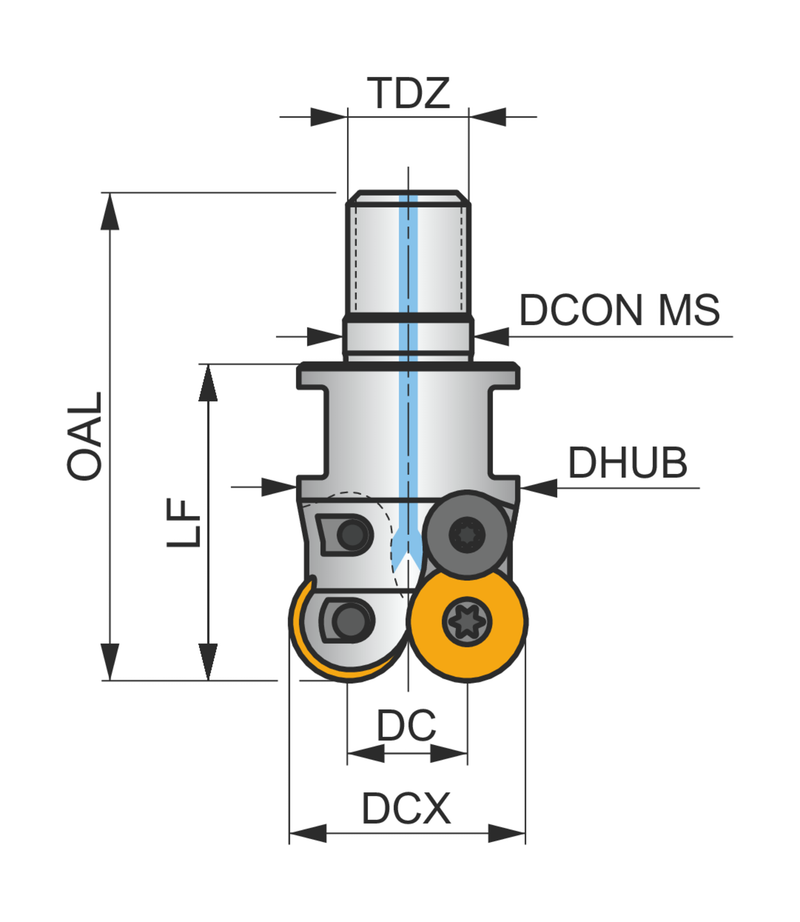

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSRD16
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999353
EAN3603603830059
File Type Download
32E2R042M16-SCRD16-CF — 3D Model STP Download
32E2R042M16-SCRD16-CF — 2D Model DXF Download
32E2R042M16-SCRD16-CF — Line Drawing PDF Download
