52A04R-SCMORD16-CF
52A04R-SCMORD16-CF
52A04R-SCMORD16-CF

52A04R-SCMORD16-CF

UGC DOR7999354
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$520.00 CAD - $520.00 CAD
$520.00 CAD
$520.00 CAD - $520.00 CAD
$520.00 CAD

Vendu en lots de : 1

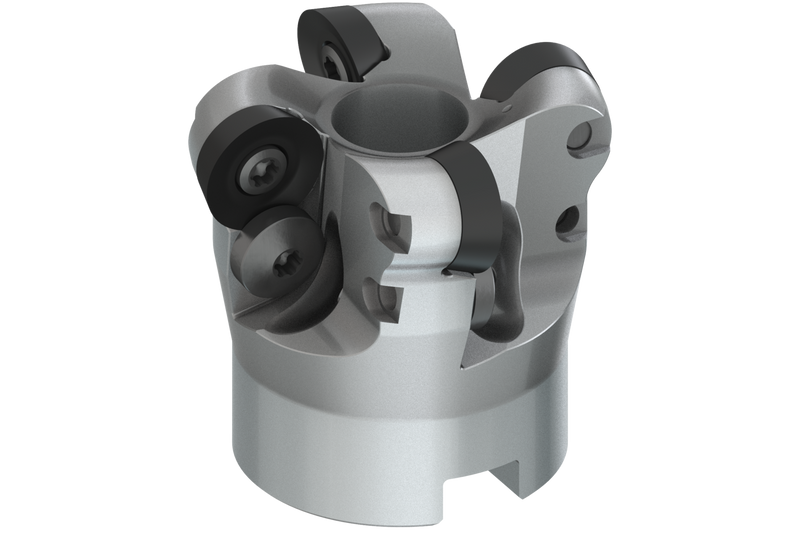

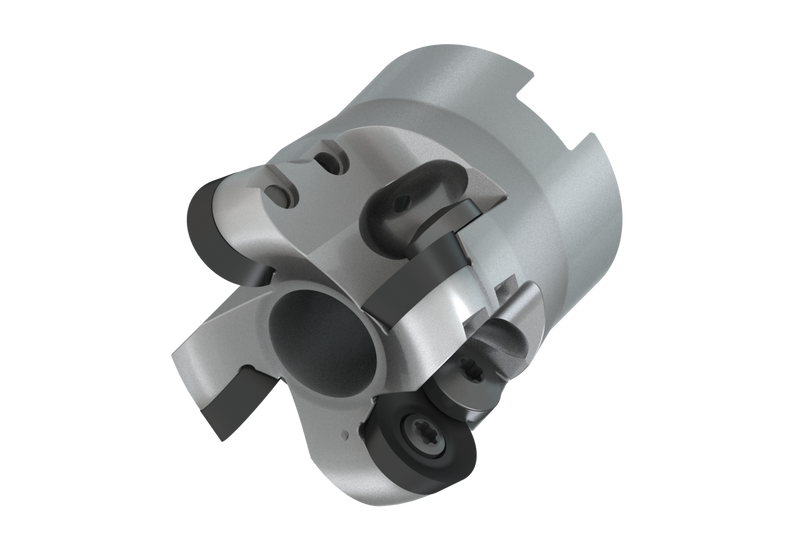

Fraise à copier avec une géométrie positive/négative qui utilise 4 plaquettes simple face RD.. 1604MOT ou RDHT 1604MO-FA, diamètre de coupe jusqu'à 52 mm maximum avec alésage de raccordement de 22 mm selon DIN 8030-A, 50 mm fonctionnel et arrosage au centre pour le surfaçage, le copiage, le rampement, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 4 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A04R-SCMORD16-CF
Product Number7999354
Product FamilySRD16
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

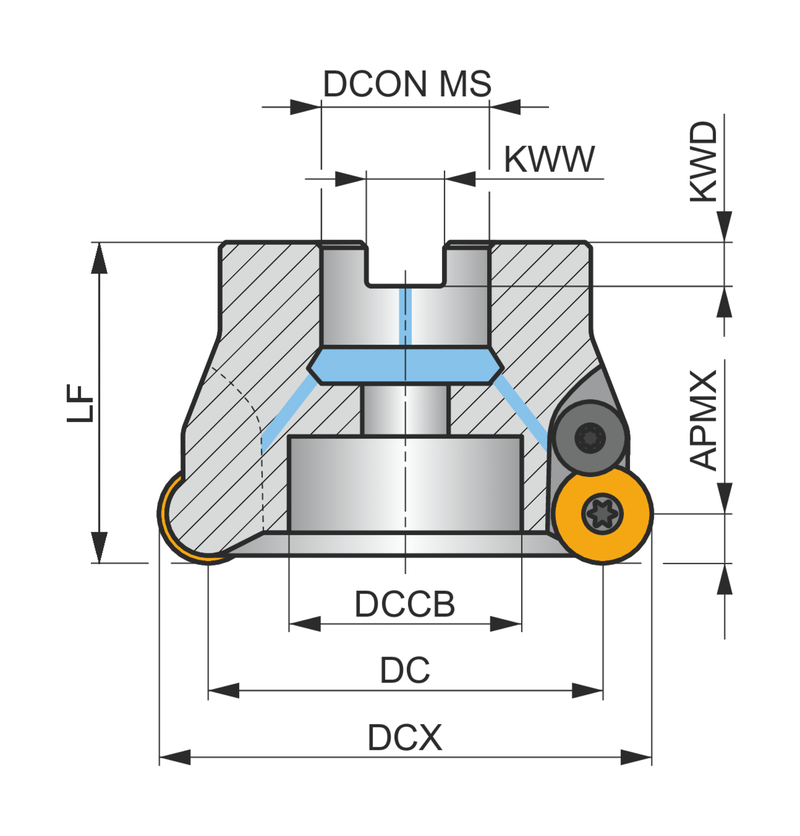

Dimensions
Cutting Diameter — in (DC)1.417"
Cutting Diameter — mm (DC)36.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSRD16
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999354
EAN3603603830066
File Type Download
52A04R-SCMORD16-CF — 3D Model STP Download
52A04R-SCMORD16-CF — 2D Model DXF Download
52A04R-SCMORD16-CF — Line Drawing PDF Download
