80A06R-SCMORD16-CF
80A06R-SCMORD16-CF
80A06R-SCMORD16-CF

80A06R-SCMORD16-CF

UGC DOR7999356
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$790.00 CAD - $790.00 CAD
$790.00 CAD
$790.00 CAD - $790.00 CAD
$790.00 CAD

Vendu en lots de : 1

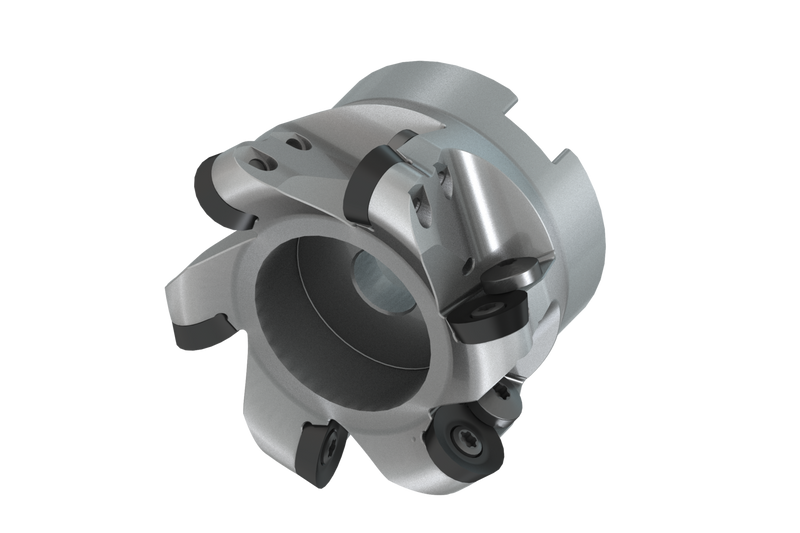

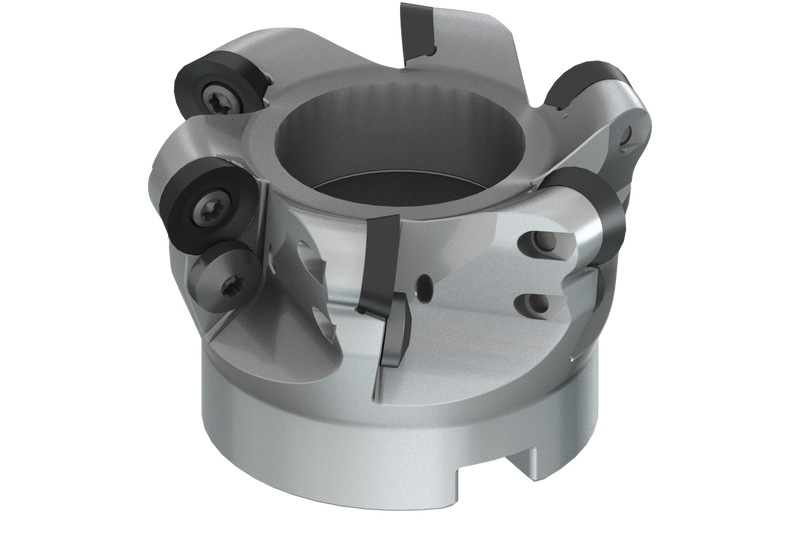

Fraise à copier avec géométrie positive/négative qui utilise 6 plaquettes simple face RD.. 1604MOT ou RDHT 1604MO-FA, diamètre de coupe maximum 80 mm avec alésage de raccordement 27 mm selon DIN 8030-A, 52 mm fonctionnel et arrosage interne pour le surfaçage, le copiage, le rampement, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 4 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A06R-SCMORD16-CF
Product Number7999356
Product FamilySRD16
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

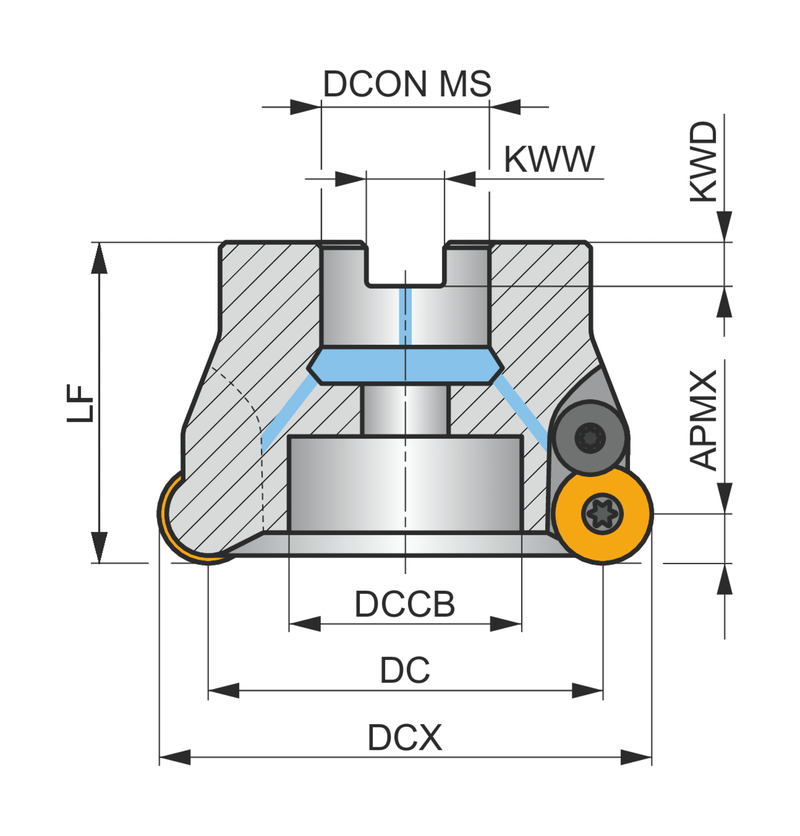

Dimensions
Cutting Diameter — in (DC)2.52"
Cutting Diameter — mm (DC)64.0 mm
Functional Length — mm (LF)52.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRD16
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999356
EAN3603603830080
File Type Download
80A06R-SCMORD16-CF — 3D Model STP Download
80A06R-SCMORD16-CF — 2D Model DXF Download
80A06R-SCMORD16-CF — Line Drawing PDF Download
