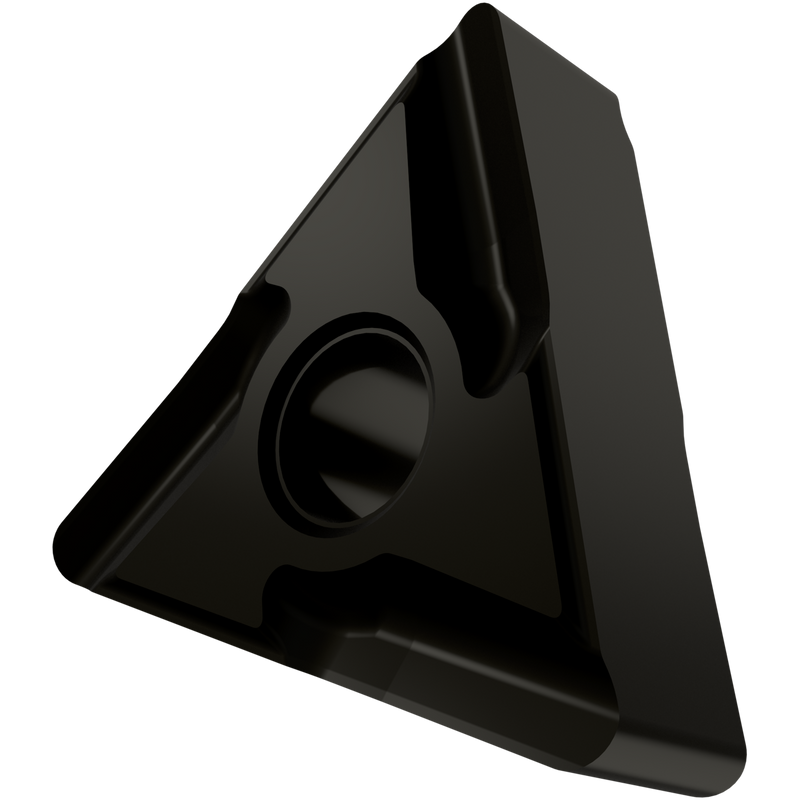

TNMG 331L-SI:T9335
TNMG 331L-SI:T9335

TNMG 331L-SI:T9335

UGC DOR8014998
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 9,525mm, 4,76mm d'épaisseur, rayon de bec de 0,4mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SI avec arêtes de coupe arrondies, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P20 -P45 et M15 -M40, pour l'usinage moyen à lourd des aciers et aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331L-SI:T9335
Product Name (ISO)TNMG 160404EL-SI:T9335
GradeT9335
Chipbreaker (CBMD)Oui
Product Number8014998
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8014998
EAN3603603844179
File Type Download
TNMG 331L-SI:T9335 — Line Drawing PDF Download
