GL3-S08AFL-.47-1.57
GL3-S08AFL-.47-1.57
GL3-S08AFL-.47-1.57

GL3-S08AFL-.47-1.57

UGC DOR8015991
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

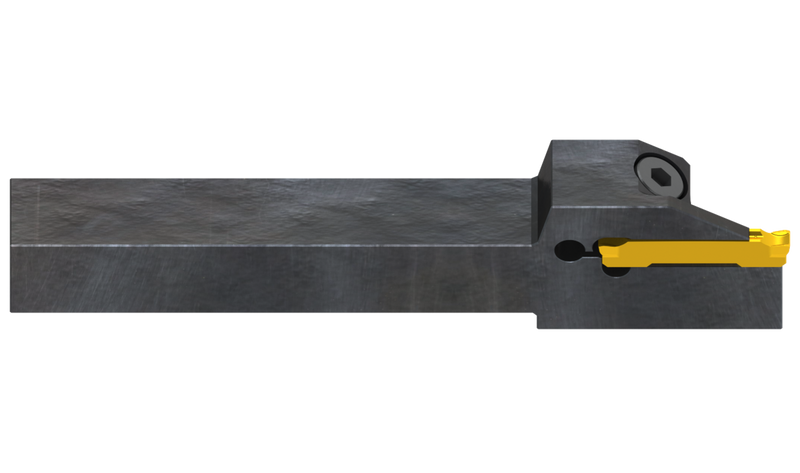

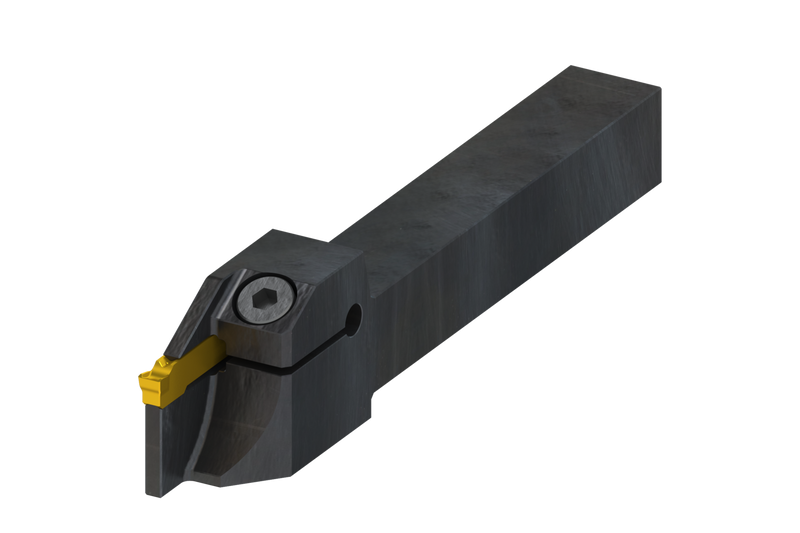

Le GL3-S08AFL-.47-1.57 est un porte-outil externe droit/gauche pour plaquettes GL, conçu pour les machines à tête coulissante et un accès facile au serrage de la plaquette. Convient pour le rainurage radial, le tronçonnage, le tournage et le profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL3-S08AFL-0,47-1,57
Product Name (ISO)GL3-S08AFL-.47-1.57
Product Number8015991
Product FamilyIGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.47"
Dimensions
Functional Length — in (LF)4.0"
Functional Length — mm (LF)102.0 mm
Shank Height — mm (H)0.5 mm
Tool Information
Reference Numbers
EDP Number8015991
EAN3603603842236
File Type Download
GL3-S08AFL-.47-1.57 — 3D Model STP Download

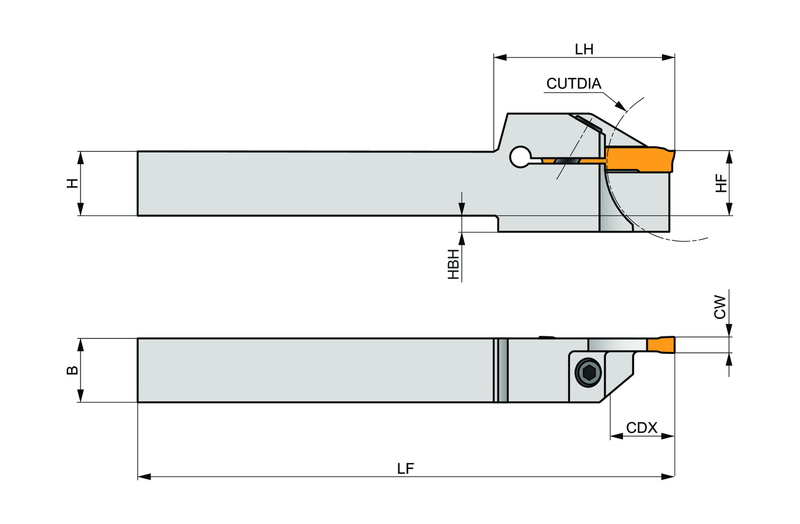

GL3-S08AFL-.47-1.57 — Line Drawing PDF Download
