GL4-S10CFL-.63-1.78
GL4-S10CFL-.63-1.78
GL4-S10CFL-.63-1.78

GL4-S10CFL-.63-1.78

UGC DOR8016002
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

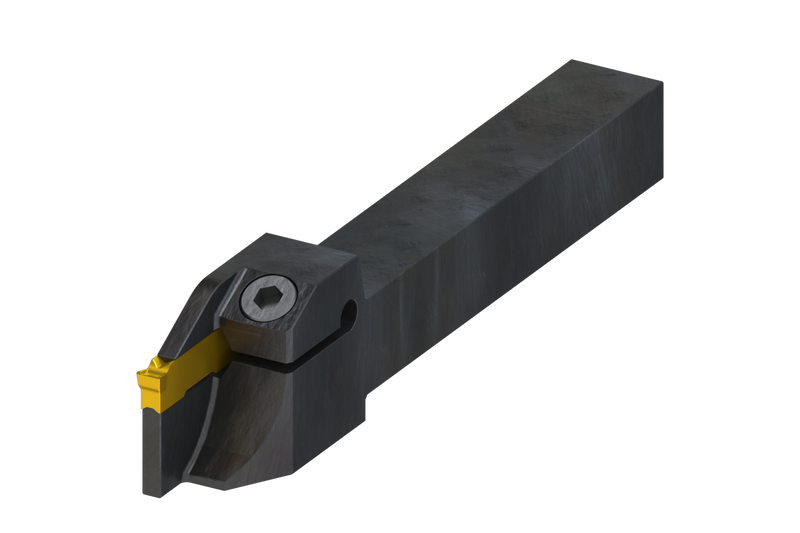

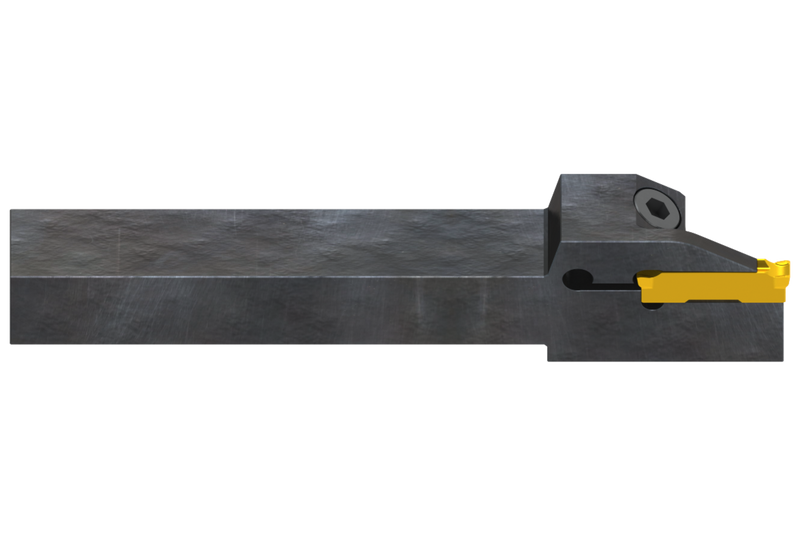

GL4-S10CFL-.63-1.78 est un porte-outil externe droit/gauche pour plaquettes GL, conçu pour les machines à poupée mobile et un accès facile au serrage des plaquettes. Convient pour les applications de rainurage radial, de tronçonnage, de tournage et de profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL4-S10CFL-,63-1,78
Product Name (ISO)GL4-S10CFL-.63-1.78
Product Number8016002
Product FamilyIGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

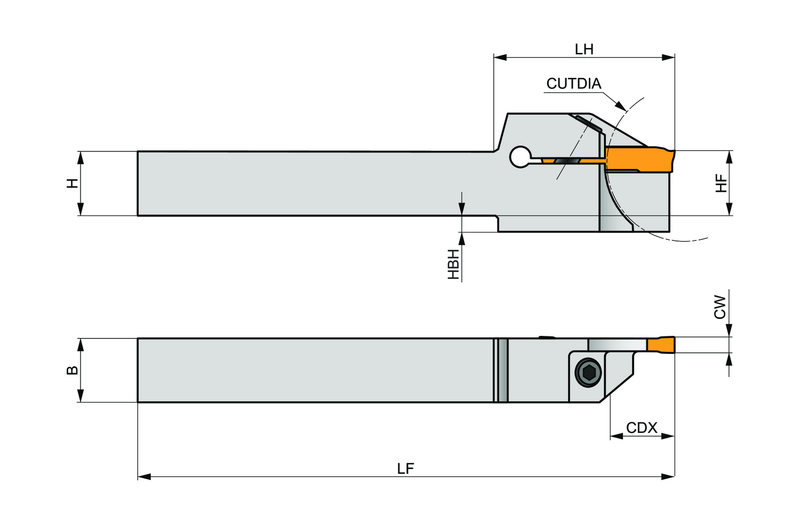

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Reference Numbers
EDP Number8016002
EAN3603603842335
File Type Download
GL4-S10CFL-.63-1.78 — 3D Model STP Download
GL4-S10CFL-.63-1.78 — Line Drawing PDF Download
