GL4-S12CFL-.47
GL4-S12CFL-.47
GL4-S12CFL-.47

GL4-S12CFL-.47

UGC DOR8016004
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

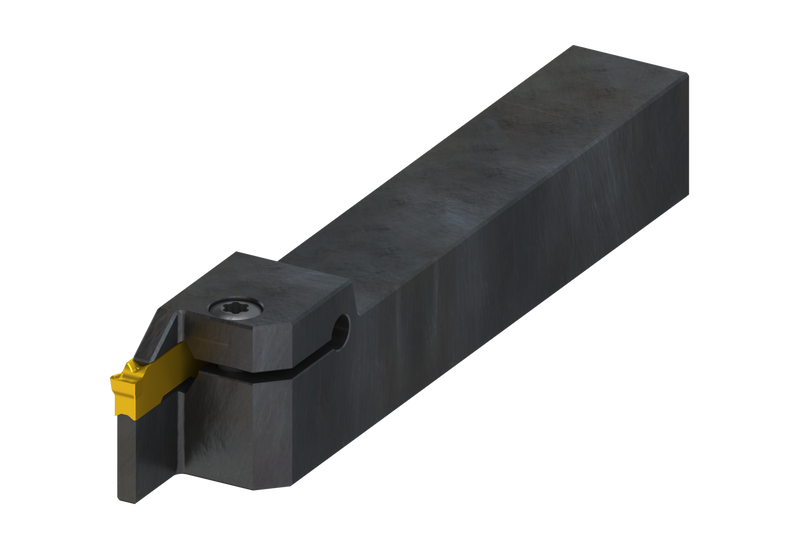

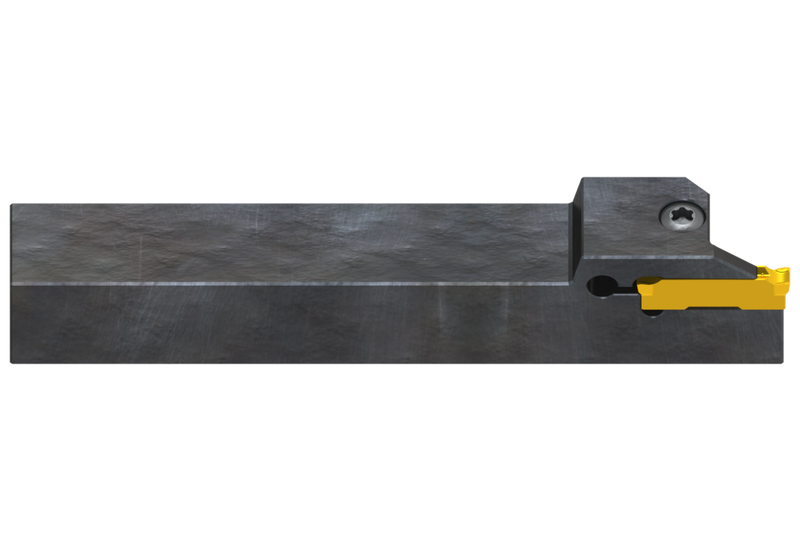

GL4-S12CFL-.47 est un porte-outil droit/gauche externe pour les plaquettes GL. Il est idéal pour les applications de tournage longitudinal et de profilage, utilisable également pour le rainurage et le tronçonnage. Le corps est traité pour une durée de vie plus longue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S12CFL-.47
Product Number8016004
Product FamilyIGLSF(RL) EXT-G
Insert Geometry
Depth of Cut Max — in (APMX)0.47"

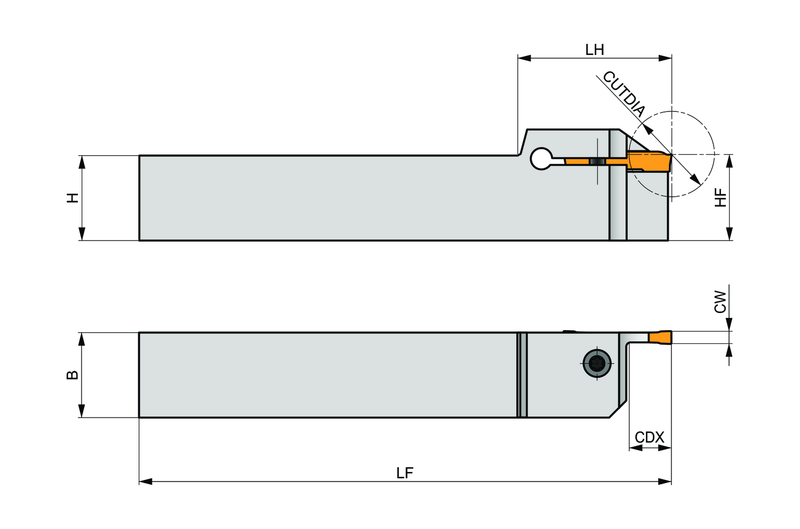

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number8016004
EAN3603603842359
File Type Download
GL4-S12CFL-.47 — 3D Model STP Download
GL4-S12CFL-.47 — Line Drawing PDF Download
