GL5-S16DFR-.47
GL5-S16DFR-.47
GL5-S16DFR-.47

GL5-S16DFR-.47

UGC DOR8016045
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

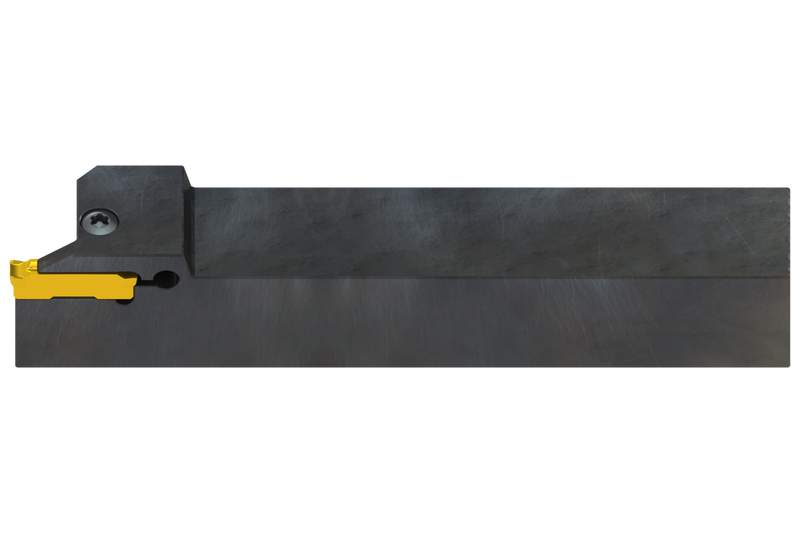

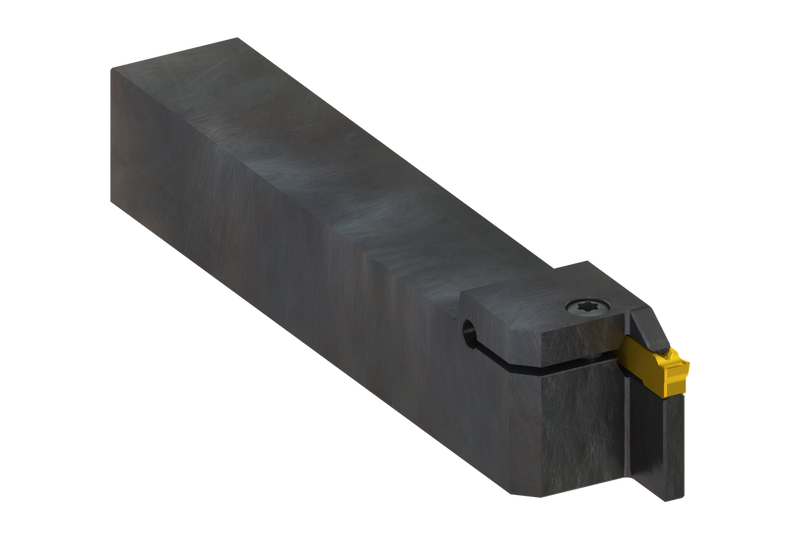

Le GL5-S16DFR-.47 est un porte-outil externe pour inserts GL, pour droitier/gaucher. Il convient parfaitement aux opérations de tournage longitudinal et de profilage, et peut également être utilisé pour le rainurage et le tronçonnage. Le corps est traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-S16DFR-.47
Product Number8016045
Product FamilyIGLSF(RL) EXT-G
Insert Geometry
Depth of Cut Max — in (APMX)0.47"

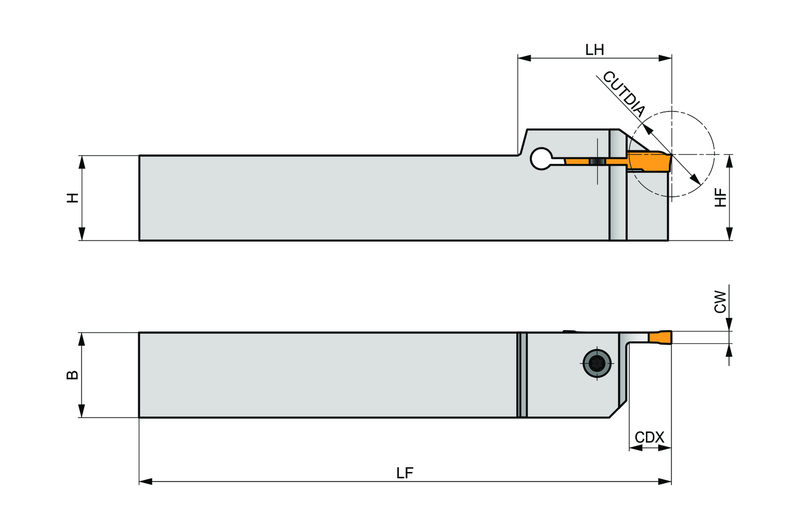

Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number8016045
EAN3603603842465
File Type Download
GL5-S16DFR-.47 — 3D Model STP Download
GL5-S16DFR-.47 — Line Drawing PDF Download
