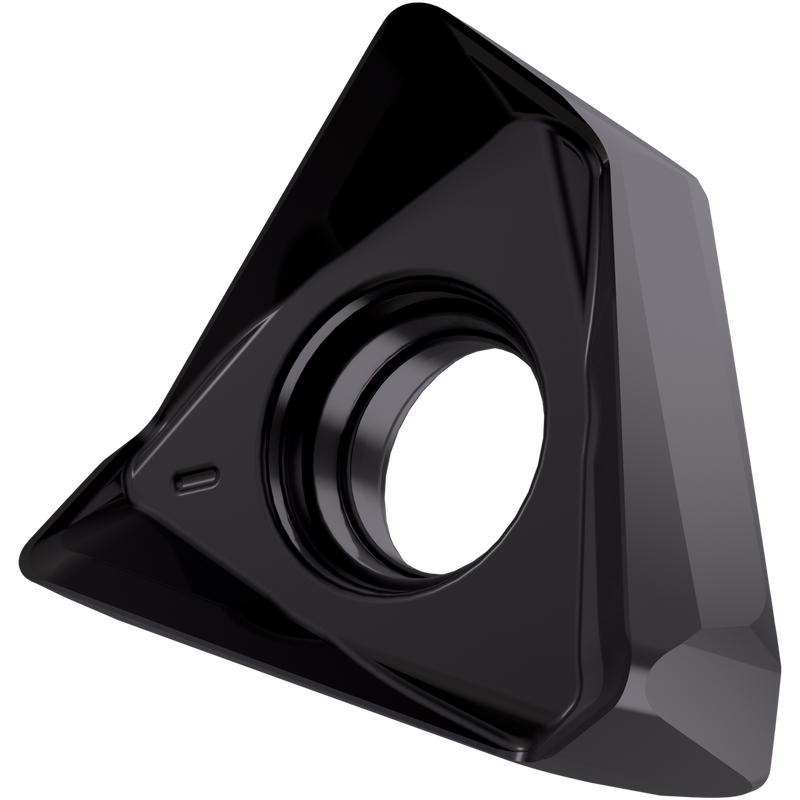

TNGX 160608SR-F:8215
TNGX 160608SR-F:8215

TNGX 160608SR-F:8215

UGC DOR8020446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.59 CAD - $19.59 CAD
$19.59 CAD
$19.59 CAD - $19.59 CAD
$19.59 CAD

Vendu en lots de : 10

Plaquette de fraisage double face TNGX 1606, triangulaire pour une profondeur de coupe maximale de 10,0 mm, avec rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-G et une géométrie F avec arêtes de coupe arrondies et facette, en carbure WC-Co micrograin revêtu PVD 8215 dans la gamme de nuance ISO P10 -P20 pour l'usinage de l'acier avec les fraises à épaulement STN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 160608SR-F:8215
Grade8215
Chipbreaker (CBMD)F
Product Number8020446
Product FamilyTNGX 16

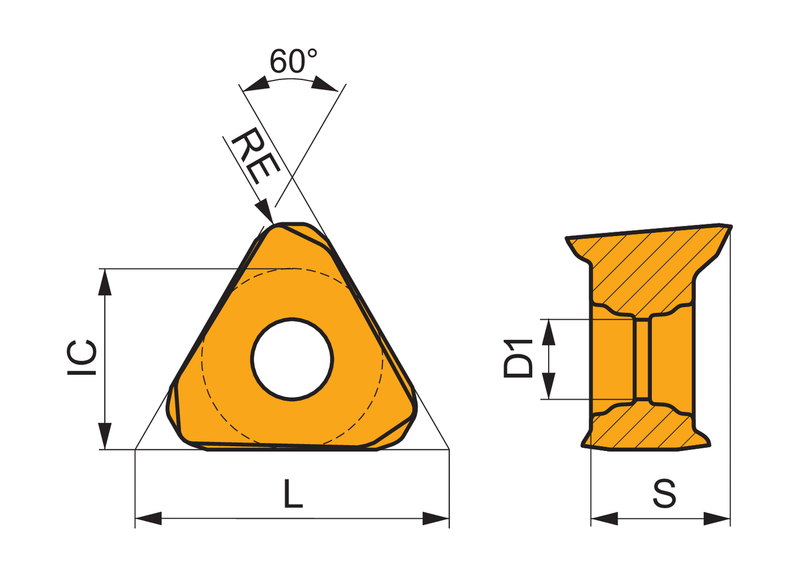

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - angle inclus de 60° triangulaire
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.259"
Insert Thickness — mm (S)6.58 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8020446
EAN3603603844308
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
TNGX 160608SR-F:8215 — Line Drawing PDF Download
