50A04R-S90TN16-C
50A04R-S90TN16-C
50A04R-S90TN16-C

50A04R-S90TN16-C

UGC DOR8020901
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$793.00 CAD - $793.00 CAD
$793.00 CAD
$793.00 CAD - $793.00 CAD
$793.00 CAD

Vendu en lots de : 1

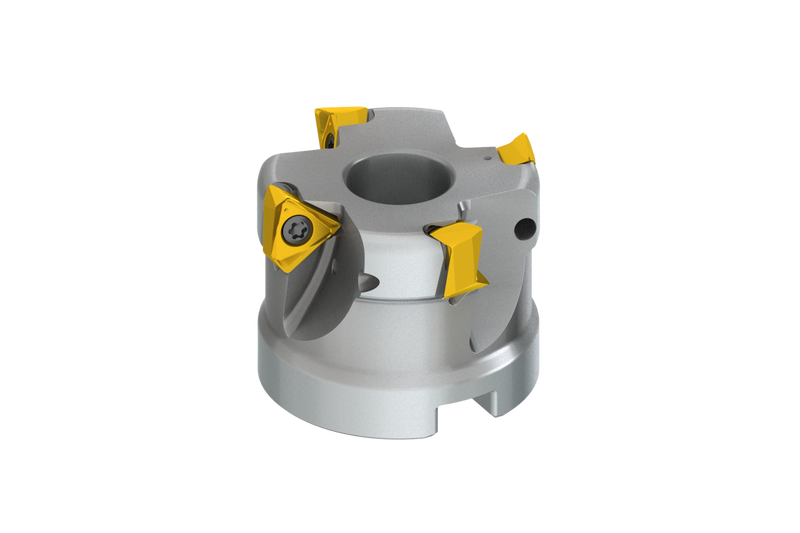

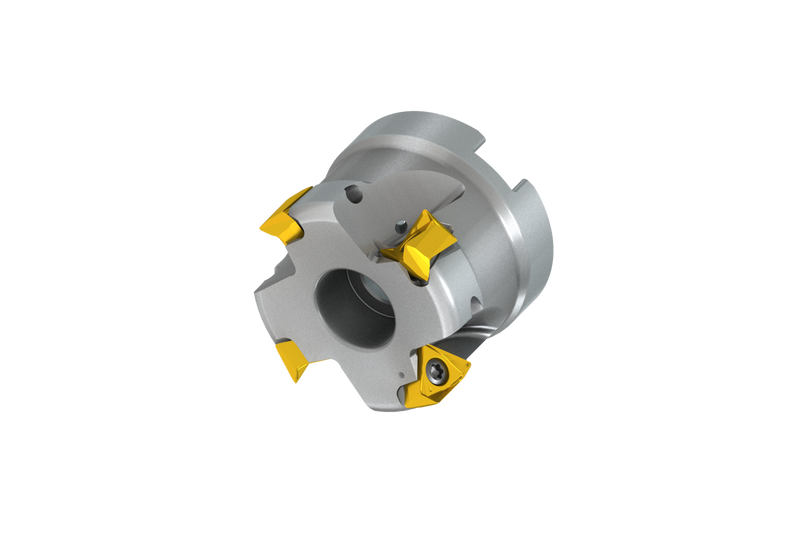

Fraise à surfacer-équarrir à double géométrie négative qui utilise 4 plaquettes double-face TNGX 1606.., diamètre de coupe 50 mm avec angle d'attaque de 90° et alésage de raccordement de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage interne et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A04R-S90TN16-C
Product Number8020901
Product FamilySTN16
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

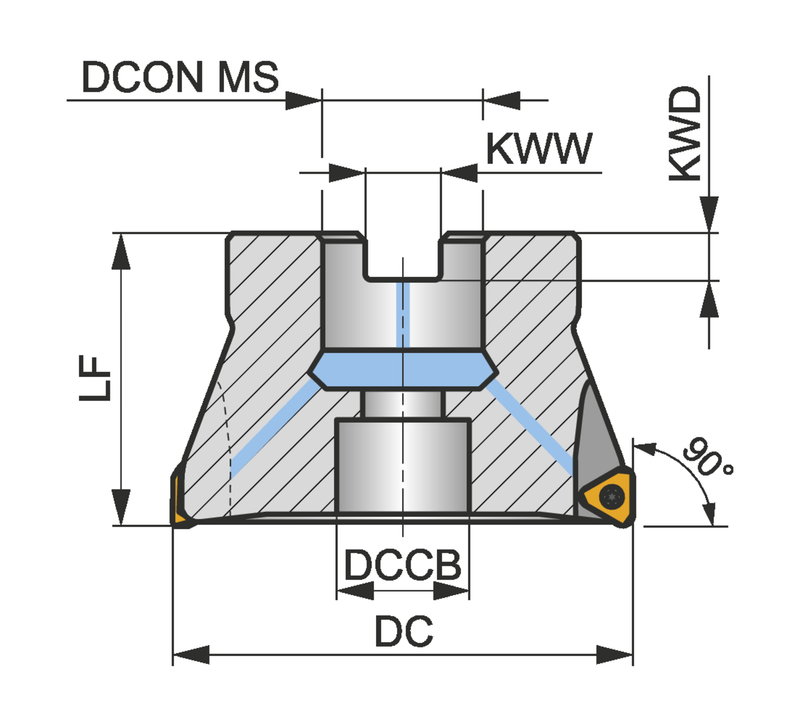

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN16
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8020901
EAN3603603844476
File Type Download
50A04R-S90TN16-C — 3D Model STP Download
50A04R-S90TN16-C — 2D Model DXF Download
50A04R-S90TN16-C — Line Drawing PDF Download
