80A05R-S90TN16-C
80A05R-S90TN16-C
80A05R-S90TN16-C

80A05R-S90TN16-C

UGC DOR8020905
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$984.00 CAD - $984.00 CAD
$984.00 CAD
$984.00 CAD - $984.00 CAD
$984.00 CAD

Vendu en lots de : 1

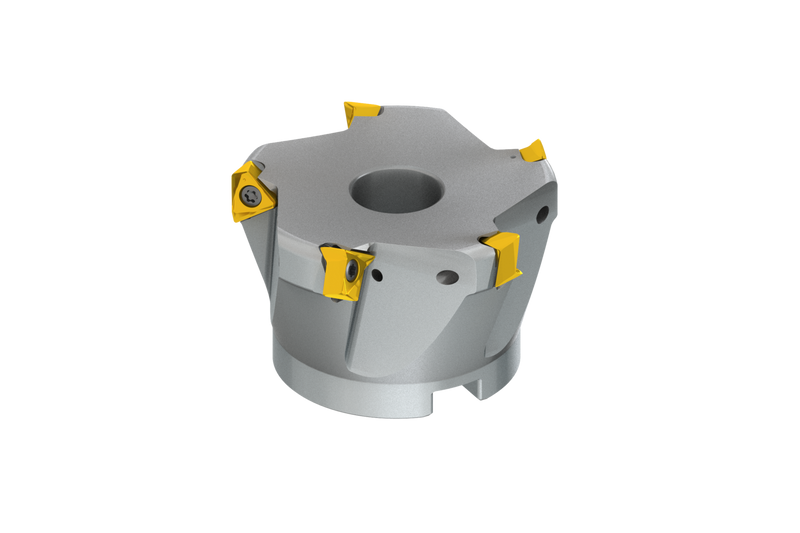

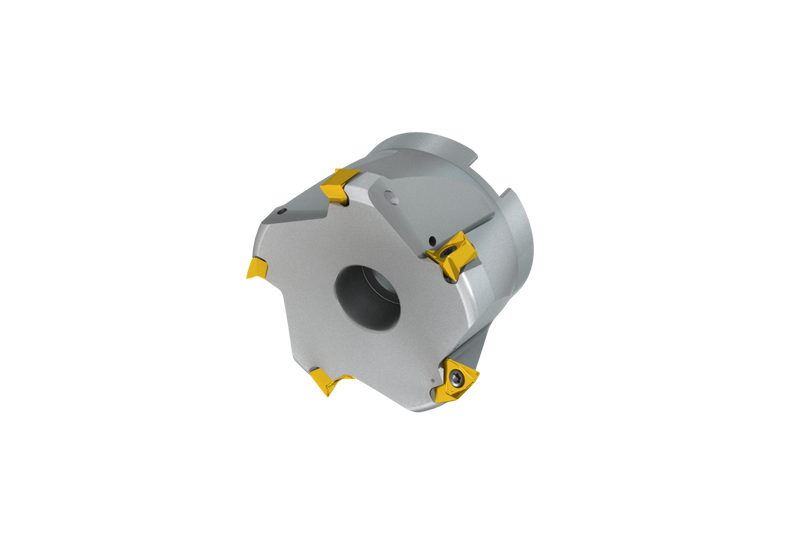

Fraise à surfacer-équarrir avec géométrie double négative utilisant 5 plaquettes double face TNGX 1606.., diamètre de coupe 80 mm avec un angle d'attaque de 90° et un alésage de connexion de 27 mm selon DIN 8030-A, une longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A05R-S90TN16-C
Product Number8020905
Product FamilySTN16
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

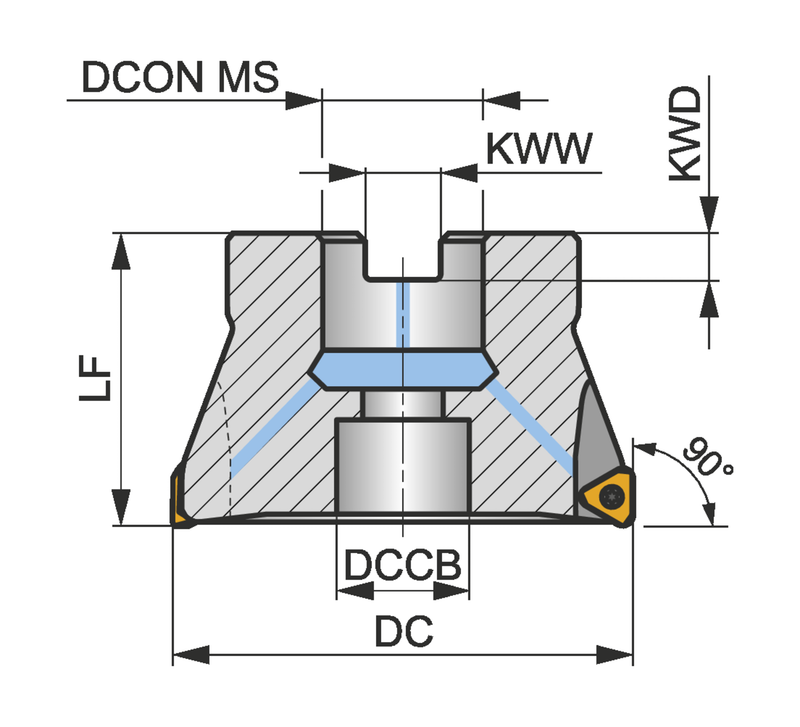

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSTN16
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8020905
EAN3603603844513
File Type Download
80A05R-S90TN16-C — 3D Model STP Download
80A05R-S90TN16-C — 2D Model DXF Download
80A05R-S90TN16-C — Line Drawing PDF Download
