32A3R042B32-STN16-C
32A3R042B32-STN16-C
32A3R042B32-STN16-C

32A3R042B32-STN16-C

UGC DOR8021055
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$617.00 CAD - $617.00 CAD
$617.00 CAD
$617.00 CAD - $617.00 CAD
$617.00 CAD

Vendu en lots de : 1

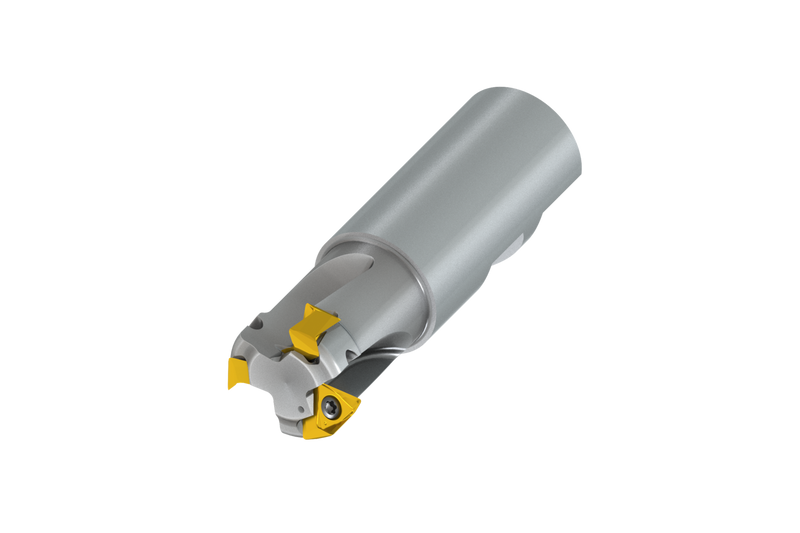

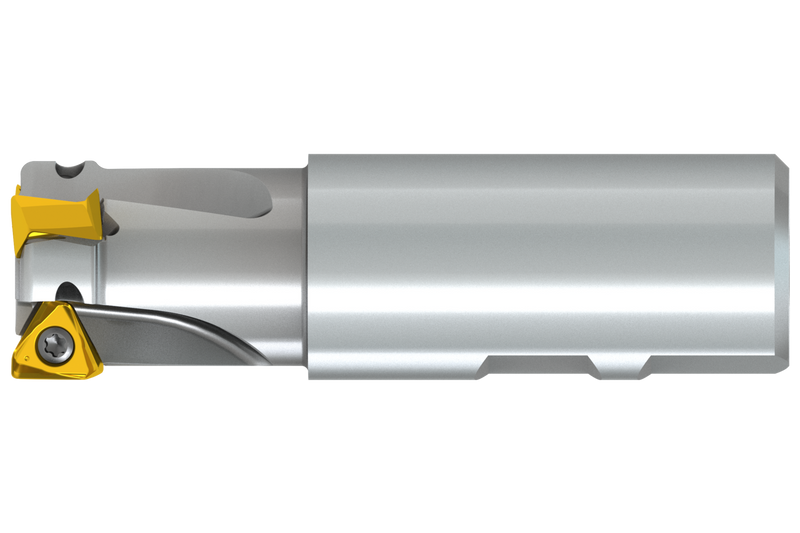

Fraise à surfacer-équarrir à double géométrie négative qui utilise 3 plaquettes double-face TNGX 1606.., diamètre de coupe 32mm avec un angle d'attaque de 90° et un manche Weldon de 32mm selon DIN 1835B, longueur utile de 42mm et longueur totale de 110mm, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R042B32-STN16-C
Product Number8021055
Product FamilySTN16
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

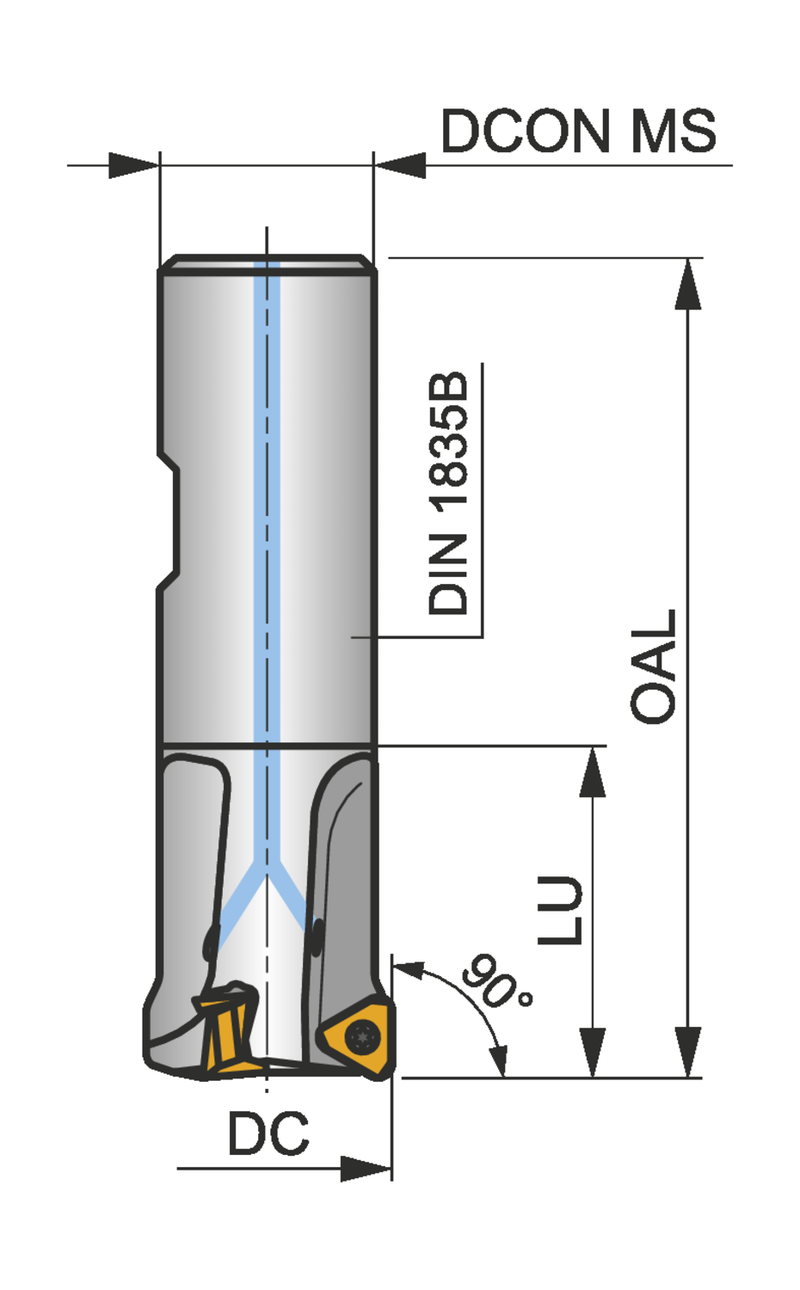

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSTN16
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021055
EAN3603603844650
File Type Download
32A3R042B32-STN16-C — 3D Model STP Download
32A3R042B32-STN16-C — 2D Model DXF Download
32A3R042B32-STN16-C — Line Drawing PDF Download
