150A04R-IS90TN16-C
150A04R-IS90TN16-C
150A04R-IS90TN16-C

150A04R-IS90TN16-C

UGC DOR8021162
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$660.00 CAD - $660.00 CAD
$660.00 CAD
$660.00 CAD - $660.00 CAD
$660.00 CAD

Vendu en lots de : 1

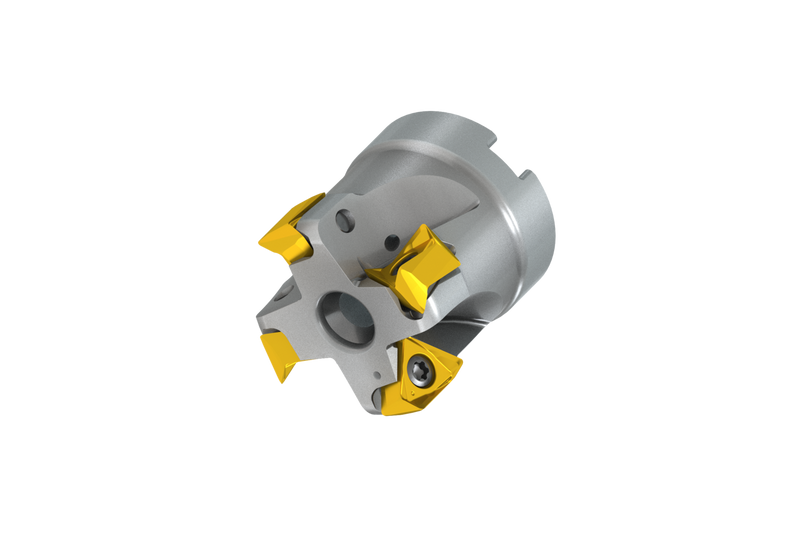

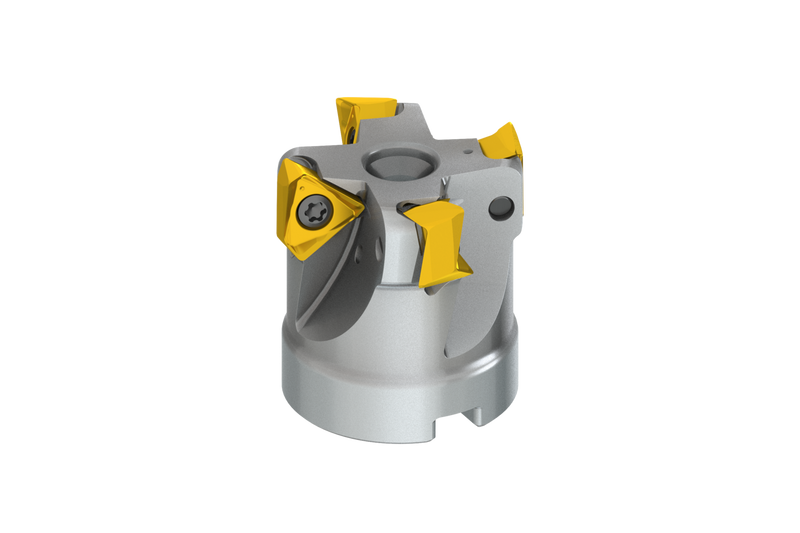

Fraise à surfacer-équarrir à géométrie double négative utilisant 4 plaquettes double-face TNGX 1606.., diamètre de coupe 1.500" avec un angle d'attaque de 90° et un alésage de raccordement selon DIN 8030-A, arrosage par l'outil pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A04R-IS90TN16-C
Product Number8021162
Product FamilyISTN16

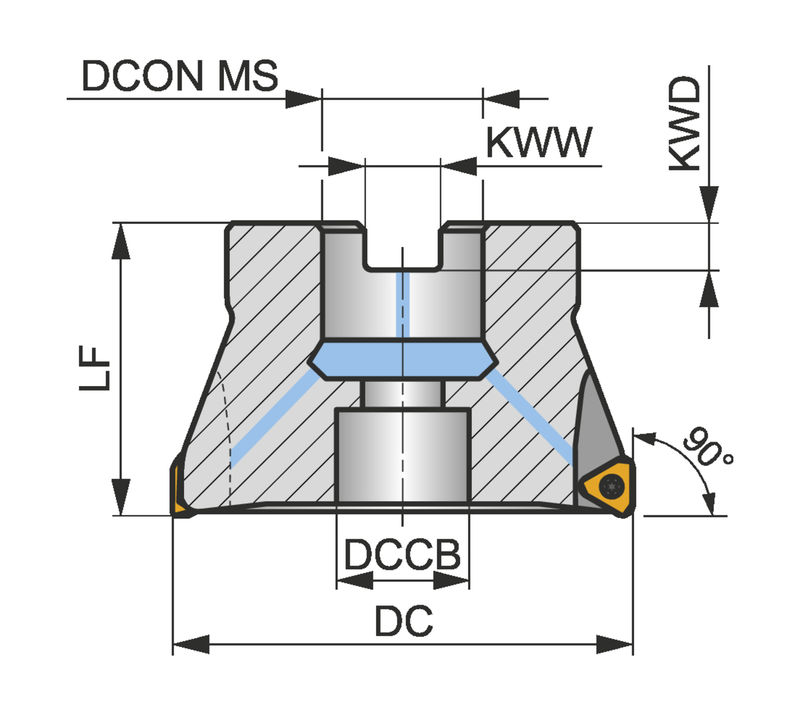

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN16
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021162
EAN3603603844711
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
150A04R-IS90TN16-C — 3D Model STP Download
150A04R-IS90TN16-C — 2D Model DXF Download
150A04R-IS90TN16-C — Line Drawing PDF Download
