500A09R-IS90TN16-C
500A09R-IS90TN16-C
500A09R-IS90TN16-C

500A09R-IS90TN16-C

UGC DOR8021181
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,423.00 CAD - $1,423.00 CAD
$1,423.00 CAD
$1,423.00 CAD - $1,423.00 CAD
$1,423.00 CAD

Vendu en lots de : 1

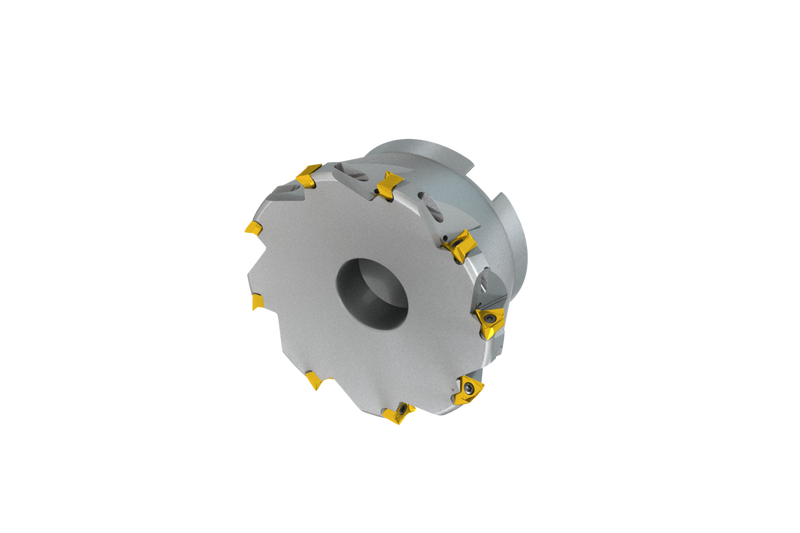

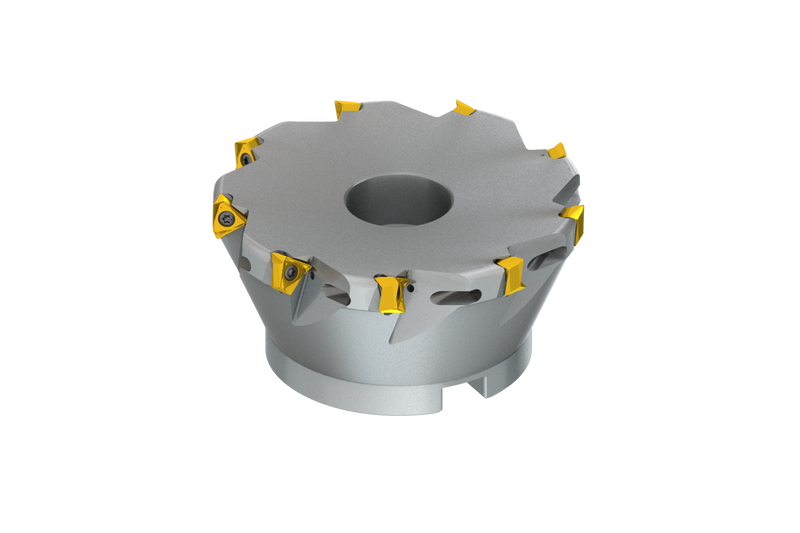

Fraise à surfacer-équarrir avec géométrie double négative utilisant 9 plaquettes double face TNGX 1606.., diamètre de coupe 5.000" avec un angle d'attaque de 90° et alésage de connexion selon DIN 8030-A, arrosage central et pas différentiel pour le surfaçage, l'équarrissage peu profond, le rainurage peu profond et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500A09R-IS90TN16-C
Product Number8021181
Product FamilyISTN16

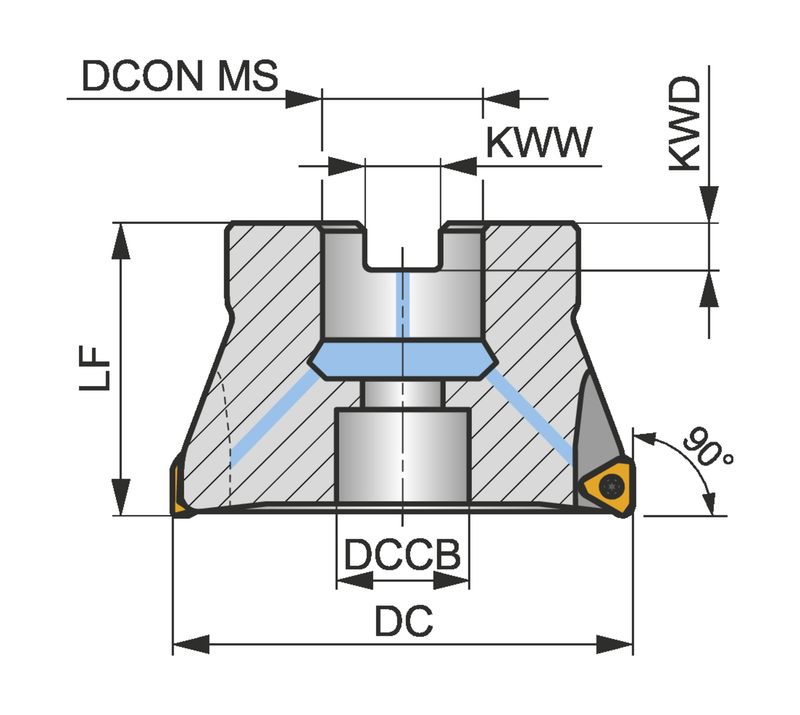

Dimensions
Cutting Diameter — in (DC)5.0"
Cutting Diameter — mm (DC)127.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSTN16
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021181
EAN3603603844803
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
500A09R-IS90TN16-C — 3D Model STP Download
500A09R-IS90TN16-C — 2D Model DXF Download
500A09R-IS90TN16-C — Line Drawing PDF Download
