125A2R315C125-ISTN16-C
125A2R315C125-ISTN16-C
125A2R315C125-ISTN16-C

125A2R315C125-ISTN16-C

UGC DOR8021686
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$595.00 CAD - $595.00 CAD
$595.00 CAD
$595.00 CAD - $595.00 CAD
$595.00 CAD

Vendu en lots de : 1

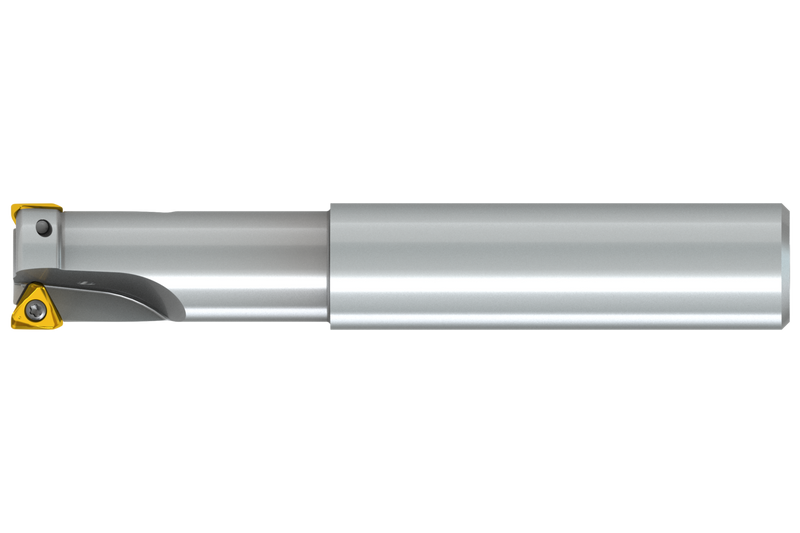

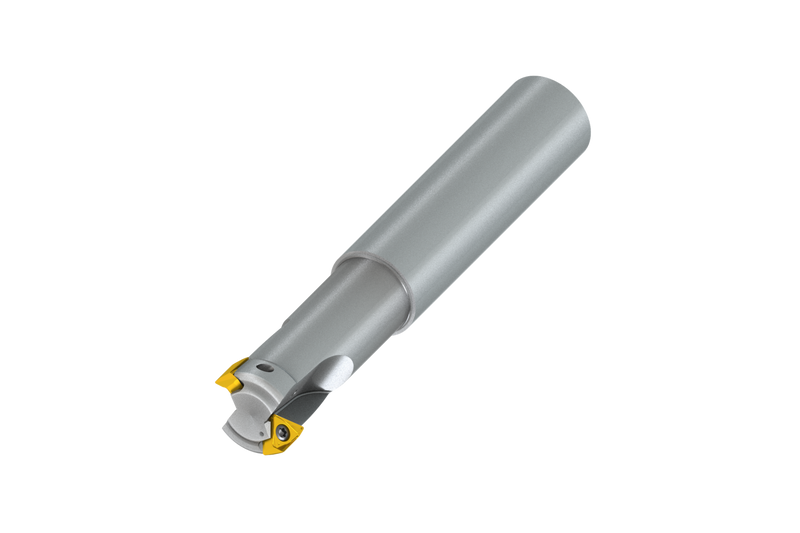

Fraise à surfacer-équarrir à géométrie double-négative qui utilise 2 plaquettes double-face TNGX 1606.., diamètre de coupe 1.250" avec un angle d'attaque de 90° et une queue cylindrique selon DIN 1835A, , arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A2R315C125-ISTN16-C
Product Number8021686
Product FamilyISTN16

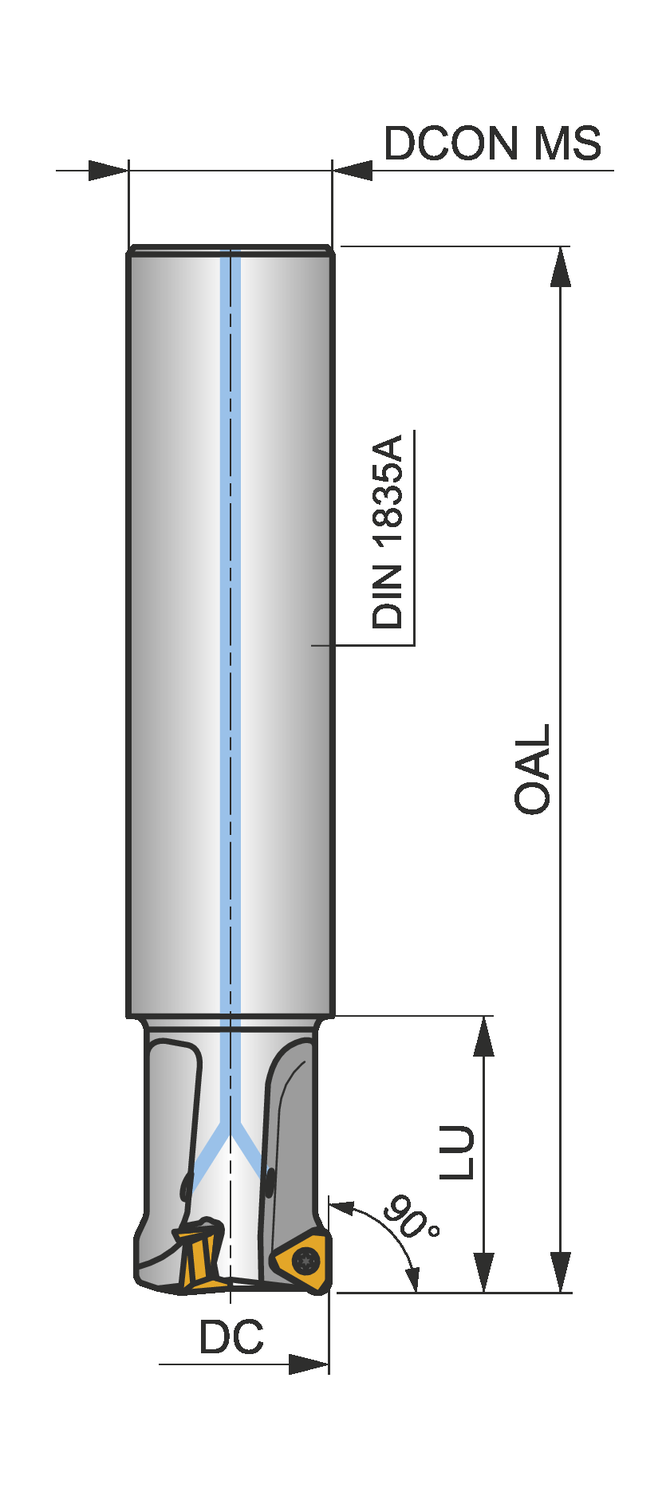

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)195.0 mm
Usable Length — in (LU)3.15"
Usable Length — mm (LU)80.01 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSTN16
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021686
EAN3603603843127
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
125A2R315C125-ISTN16-C — 3D Model STP Download
125A2R315C125-ISTN16-C — 2D Model DXF Download
125A2R315C125-ISTN16-C — Line Drawing PDF Download
