150A4R200W125-ISTN16-C
150A4R200W125-ISTN16-C
150A4R200W125-ISTN16-C

150A4R200W125-ISTN16-C

UGC DOR8021720
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$667.00 CAD - $667.00 CAD
$667.00 CAD
$667.00 CAD - $667.00 CAD
$667.00 CAD

Vendu en lots de : 1

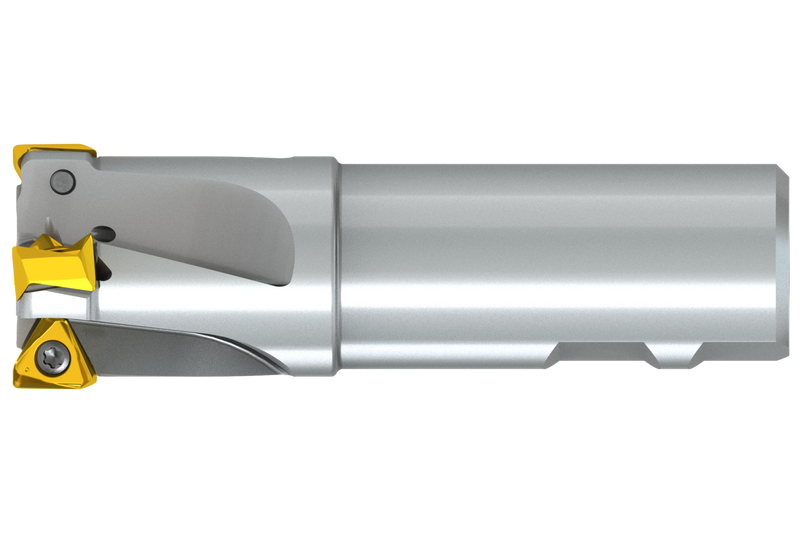

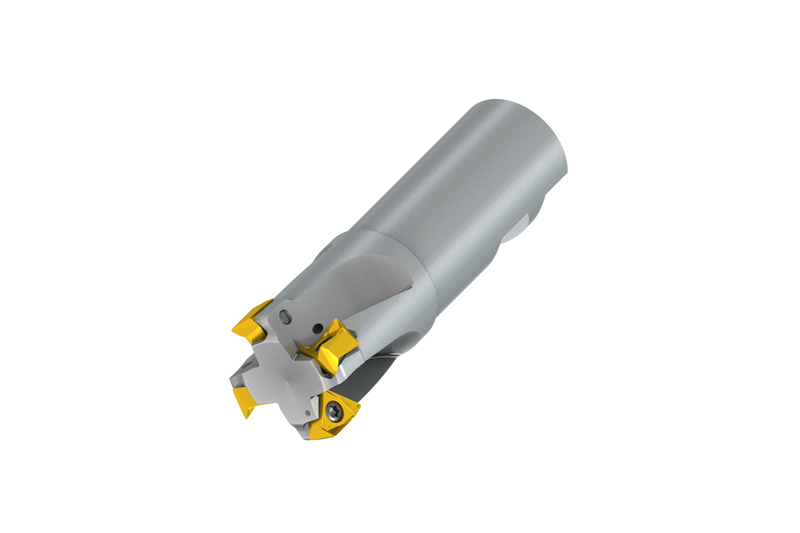

Fraise à surfacer-dresser avec géométrie double négative utilisant 4 plaquettes double face TNGX 1606.., diamètre de coupe 1.500" avec angle d'attaque de 90° et queue Weldon selon DIN 1835B, arrosage interne pour surfaçage, dressage d'épaulements peu profonds, fraisage de rainures peu profondes et fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A4R200W125-ISTN16-C
Product Number8021720
Product FamilyISTN16

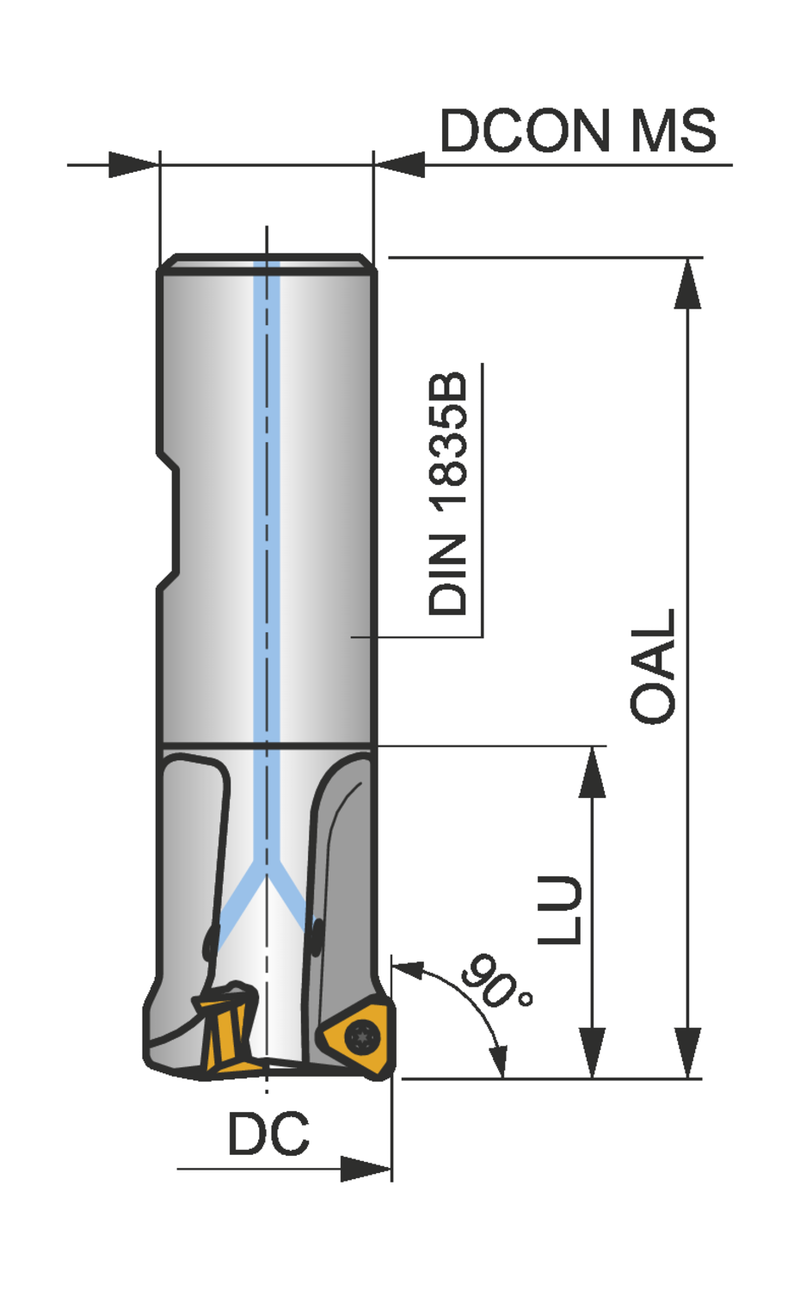

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.01 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN16
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021720
EAN3603603843158
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
150A4R200W125-ISTN16-C — 3D Model STP Download
150A4R200W125-ISTN16-C — 2D Model DXF Download
150A4R200W125-ISTN16-C — Line Drawing PDF Download
