GL5-D500M08-GM:G8330
GL5-D500M08-GM:G8330

GL5-D500M08-GM:G8330

UGC DOR8023030
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.74 CAD - $41.74 CAD
$41.74 CAD
$41.74 CAD - $41.74 CAD
$41.74 CAD

Vendu en lots de : 10

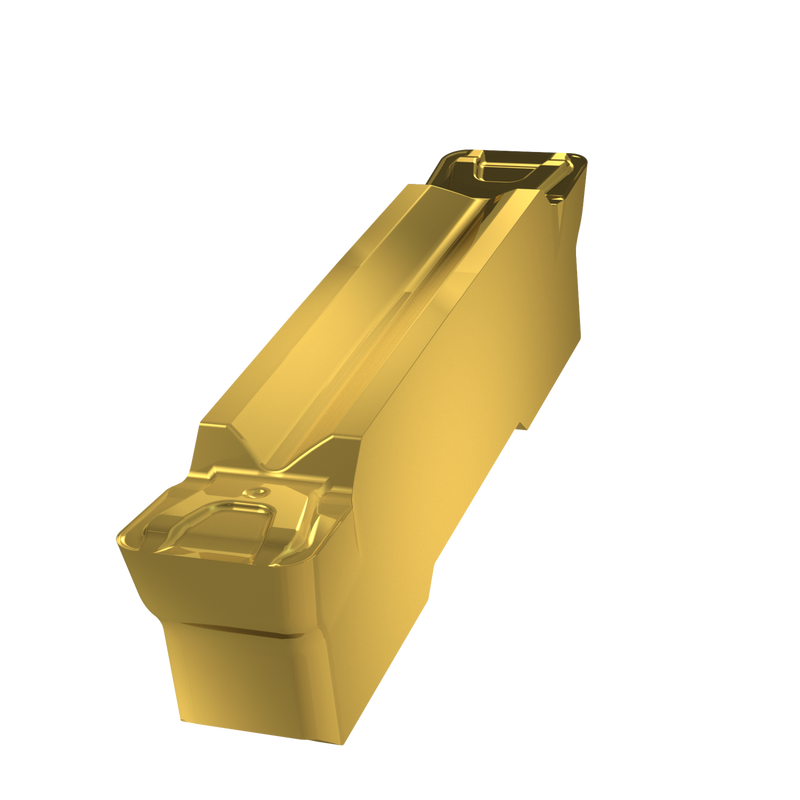

Plaquette de tronçonnage et de gorge double face, de 0,984 pouce de long avec une largeur de coupe de 0,197 pouce et des rayons de coin de 0,031 pouce. Grade G8330 WC-Co carbure à grain fin revêtu PVD, dans les plages ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte. Géométrie polyvalente GM pour le rainurage et le tournage longitudinal, et les coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-D500M08-GM:G8330
GradeG8330
Chipbreaker (CBMD)Bonjour
Product Number8023030
Product FamilyGL. D - GM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8023030
EAN3603603844865
File Type Download

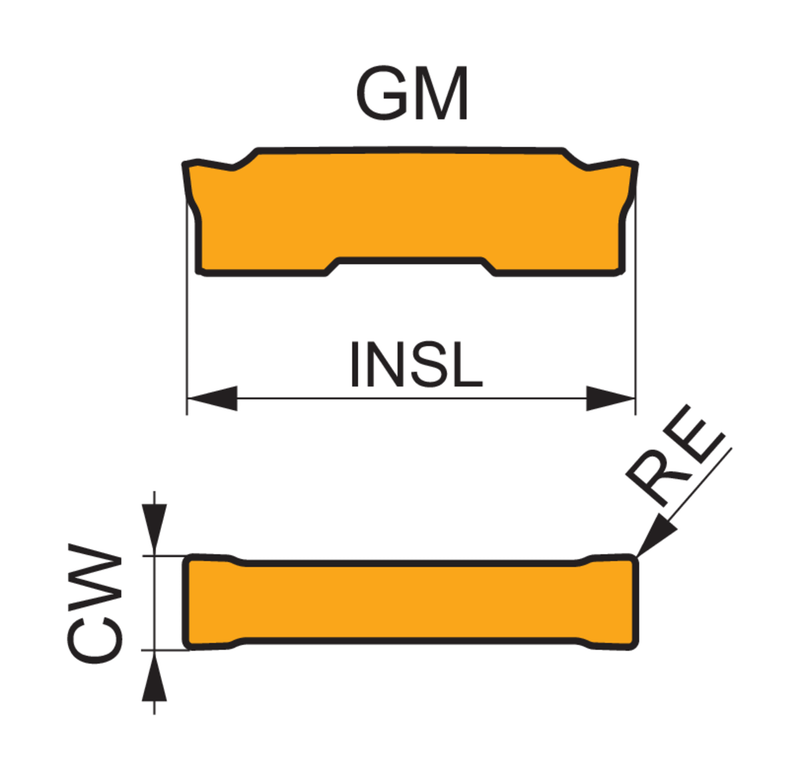

GL5-D500M08-GM:G8330 — Line Drawing PDF Download
