32E4R042M16-SRD10-CF
32E4R042M16-SRD10-CF
32E4R042M16-SRD10-CF

32E4R042M16-SRD10-CF

UGC DOR8025177
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$395.00 CAD - $395.00 CAD
$395.00 CAD
$395.00 CAD - $395.00 CAD
$395.00 CAD

Vendu en lots de : 1

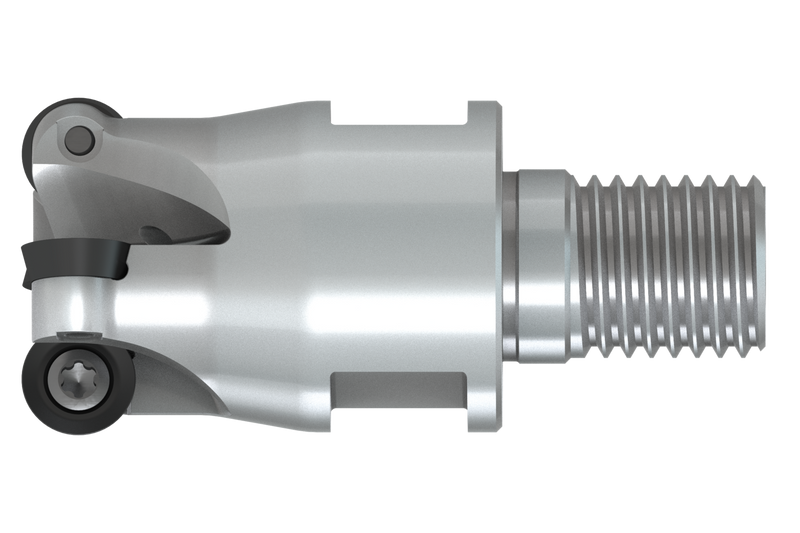

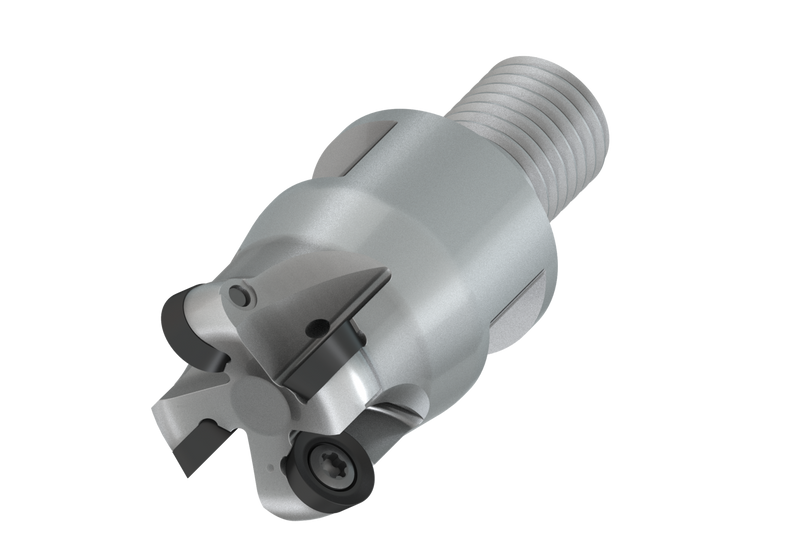

Fraise à surfacer-copier avec géométrie double négative qui utilise 4 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum 32mm avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle 42mm et longueur en porte-à-faux 65mm, arrosage central pour surfaçage, fraisage-copiage, fraisage en rampe, fraisage en plongée progressive et fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E4R042M16-SRD10-CF
Product Number8025177
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

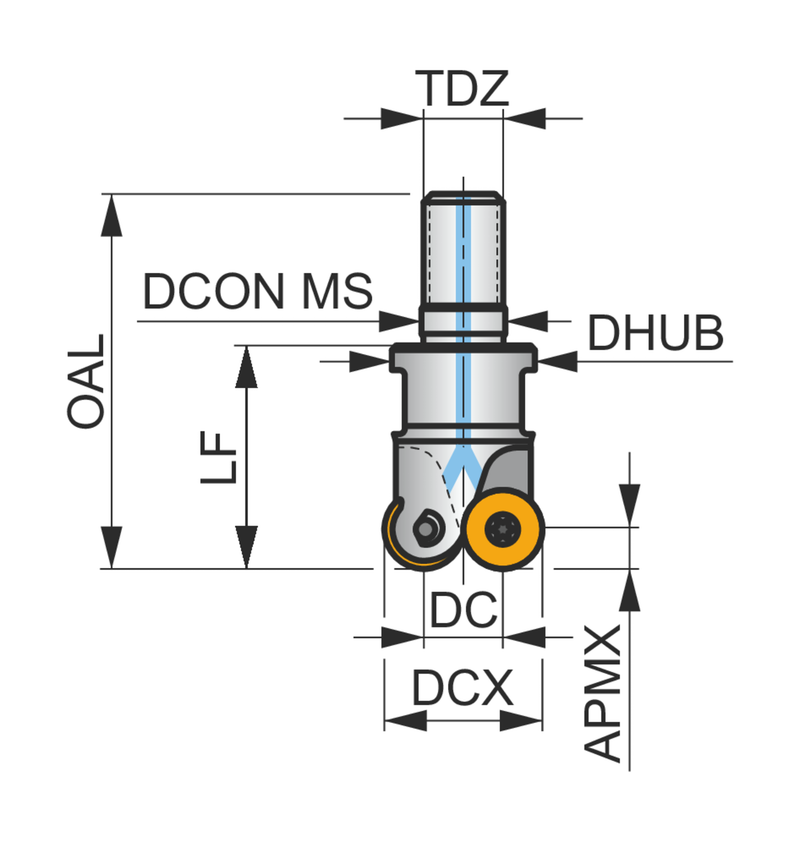

Dimensions
Cutting Diameter — in (DC)0.866"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8025177
EAN3603603848023
File Type Download
32E4R042M16-SRD10-CF — Line Drawing PDF Download
