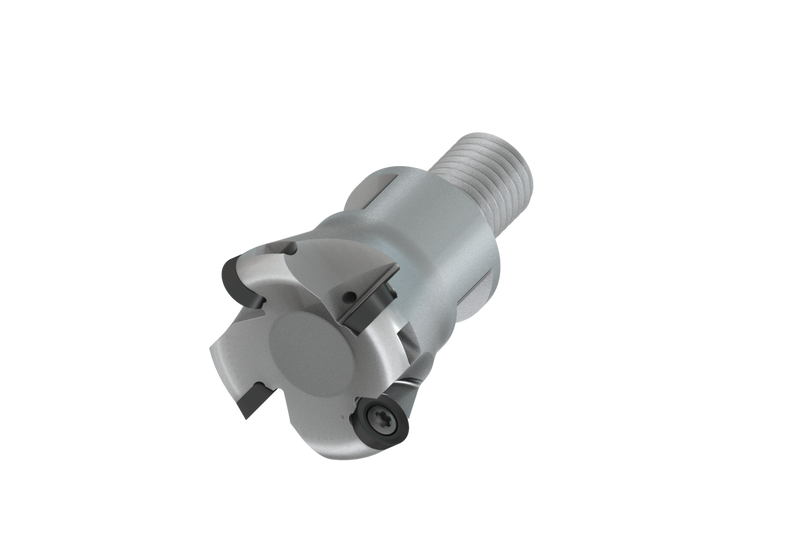

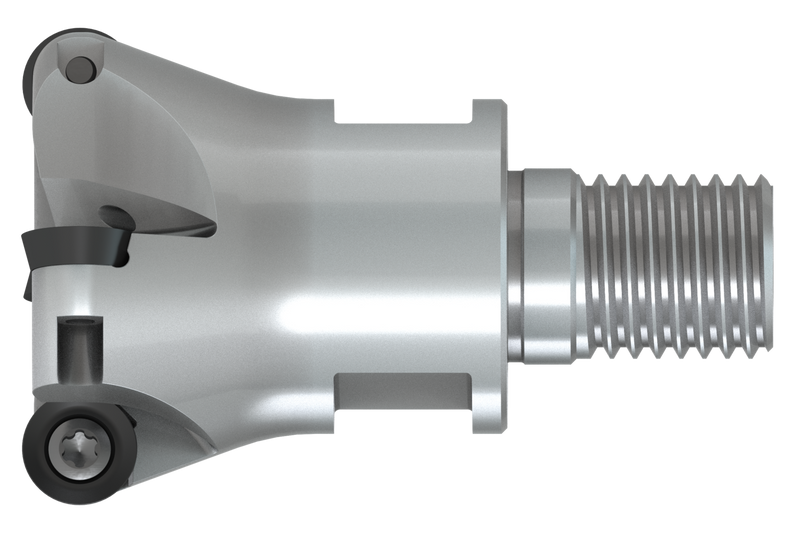

42E4R042M16-SRD10-CF
42E4R042M16-SRD10-CF
42E4R042M16-SRD10-CF

42E4R042M16-SRD10-CF

UGC DOR8025178
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$495.00 CAD - $495.00 CAD
$495.00 CAD
$495.00 CAD - $495.00 CAD
$495.00 CAD

Vendu en lots de : 1

Fraise à copier avec double géométrie négative utilisant 4 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe jusqu'à 42 mm maximum avec une queue filetée M16 pour les porte-outils modulaires standard, longueur fonctionnelle de 42 mm et longueur de projection de 65 mm, arrosage par l'intérieur pour le surfaçage, la copie, l'usinage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42E4R042M16-SRD10-CF
Product Number8025178
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

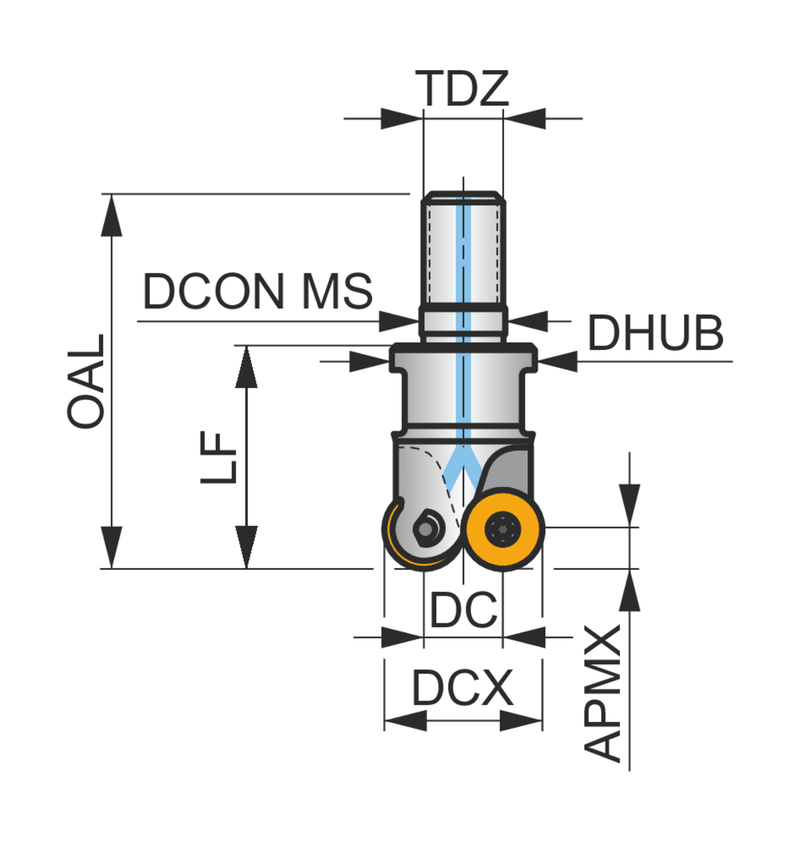

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8025178
EAN3603603848030
File Type Download
42E4R042M16-SRD10-CF — Line Drawing PDF Download
