42A05R-SMORD10-CF
42A05R-SMORD10-CF
42A05R-SMORD10-CF

42A05R-SMORD10-CF

UGC DOR8025251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$525.00 CAD - $525.00 CAD
$525.00 CAD
$525.00 CAD - $525.00 CAD
$525.00 CAD

Vendu en lots de : 1

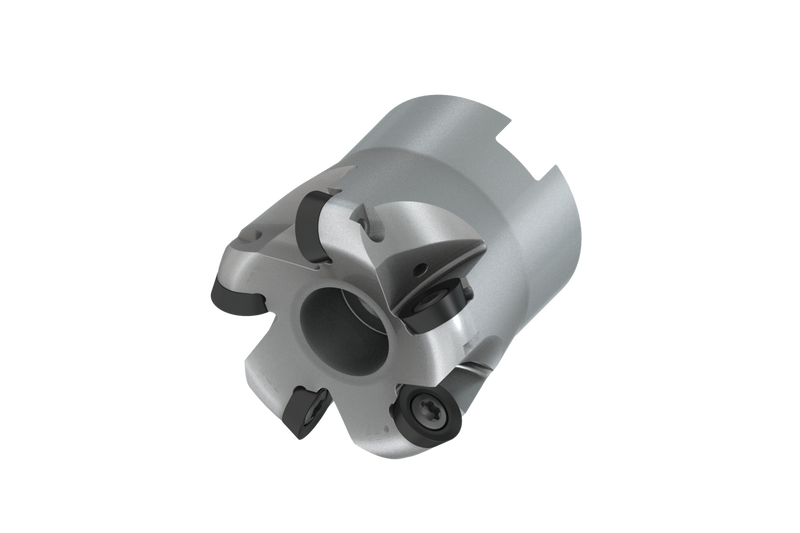

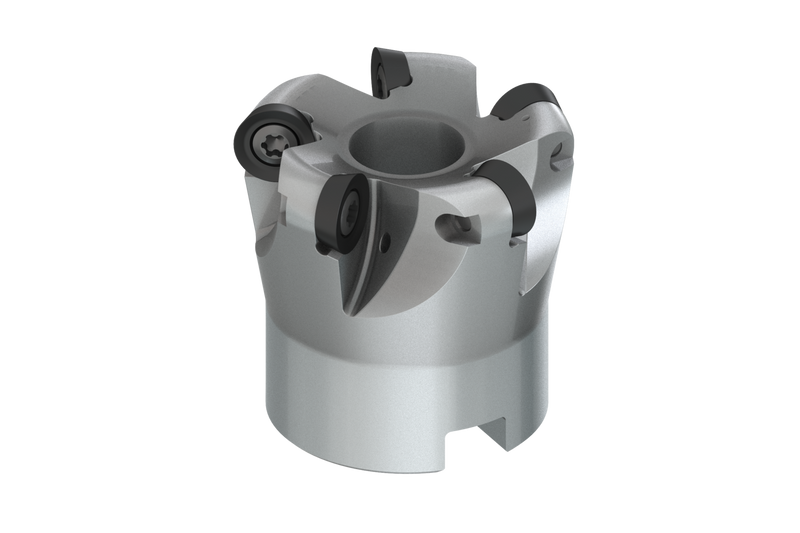

Fraise à copier avec géométrie double négative qui utilise 5 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximal de 42 mm avec alésage de connexion de 16 mm selon DIN 8030-A, longueur fonctionnelle de 40 mm et arrosage interne pour le surfaçage, le fraisage en plongée progressive, le fraisage en hélice, le fraisage en copiage et le fraisage en ramping avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42A05R-SMORD10-CF
Product Number8025251
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

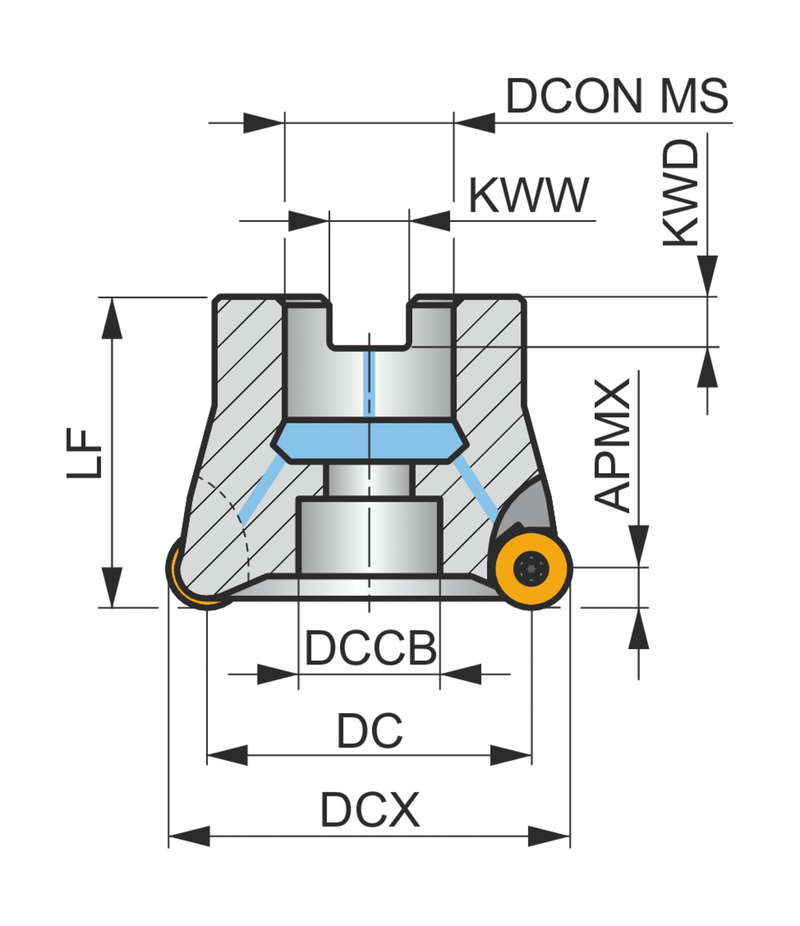

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignDRS10
ShankFraise en bout DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8025251
EAN3603603848054
File Type Download
42A05R-SMORD10-CF — Line Drawing PDF Download
