52A07R-SMORD10-CF
52A07R-SMORD10-CF
52A07R-SMORD10-CF

52A07R-SMORD10-CF

UGC DOR8025252
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$572.00 CAD - $572.00 CAD
$572.00 CAD
$572.00 CAD - $572.00 CAD
$572.00 CAD

Vendu en lots de : 1

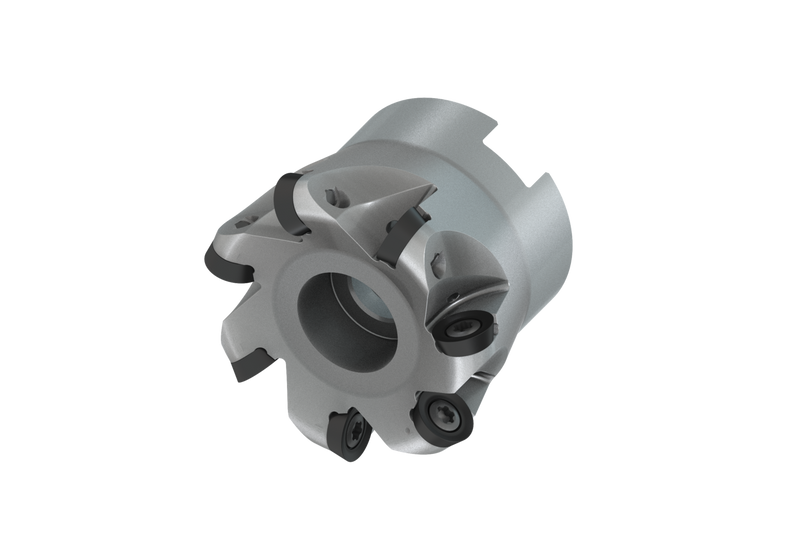

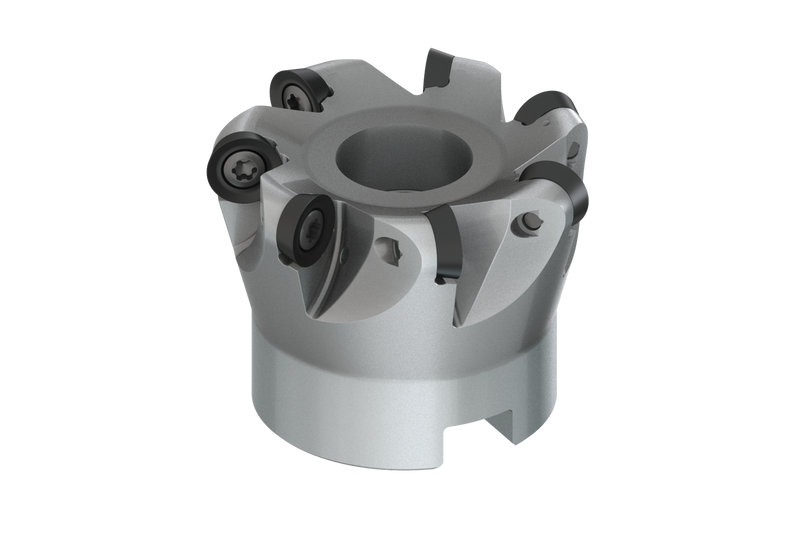

Fraise à copier avec une géométrie double négative utilisant 7 plaquettes simple face RD...1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum de 52mm avec un alésage de raccordement de 22mm selon DIN 8030-A, longueur fonctionnelle de 40mm et arrosage interne pour le surfaçage, le fraisage à copier, l'usinage en rampe, le fraisage progressif en plongée et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A07R-SMORD10-CF
Product Number8025252
Product FamilyDRS10

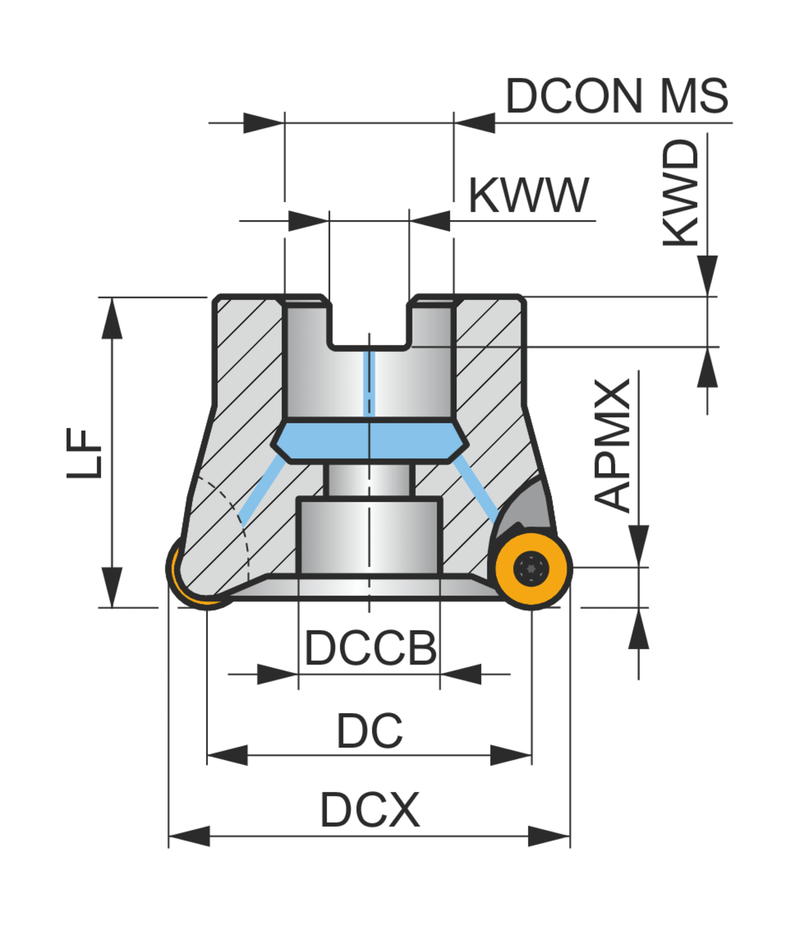

Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm
Dimensions
Cutting Diameter — in (DC)1.654"
Cutting Diameter — mm (DC)42.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignDRS10
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8025252
EAN3603603848061
File Type Download
52A07R-SMORD10-CF — Line Drawing PDF Download
