UGC DOR8030270
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.39 CAD - $53.39 CAD
$53.39 CAD
$53.39 CAD - $53.39 CAD
$53.39 CAD

Vendu en lots de : 1

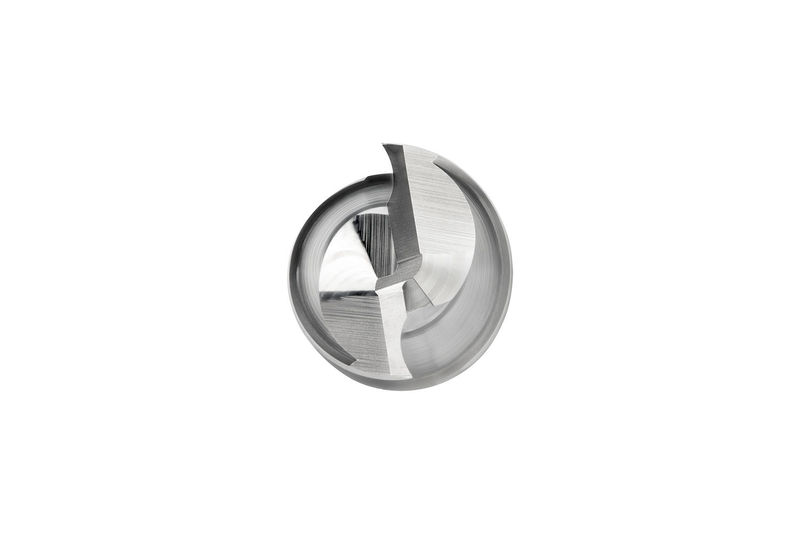

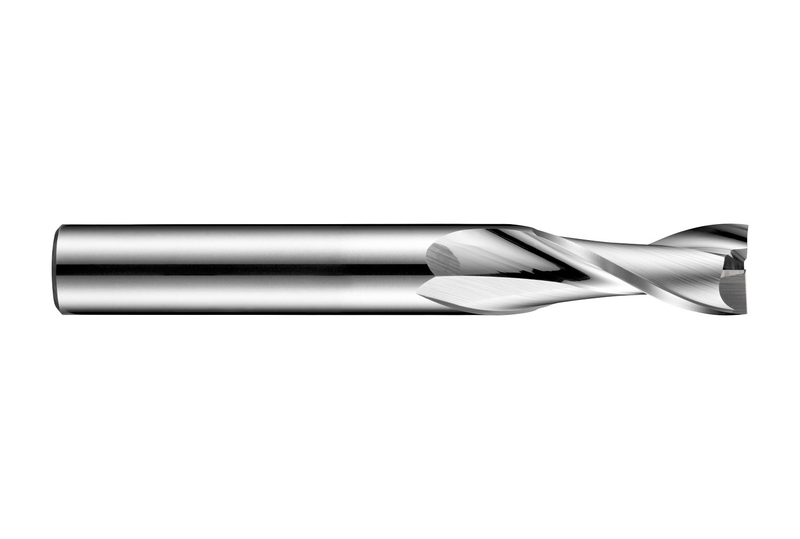

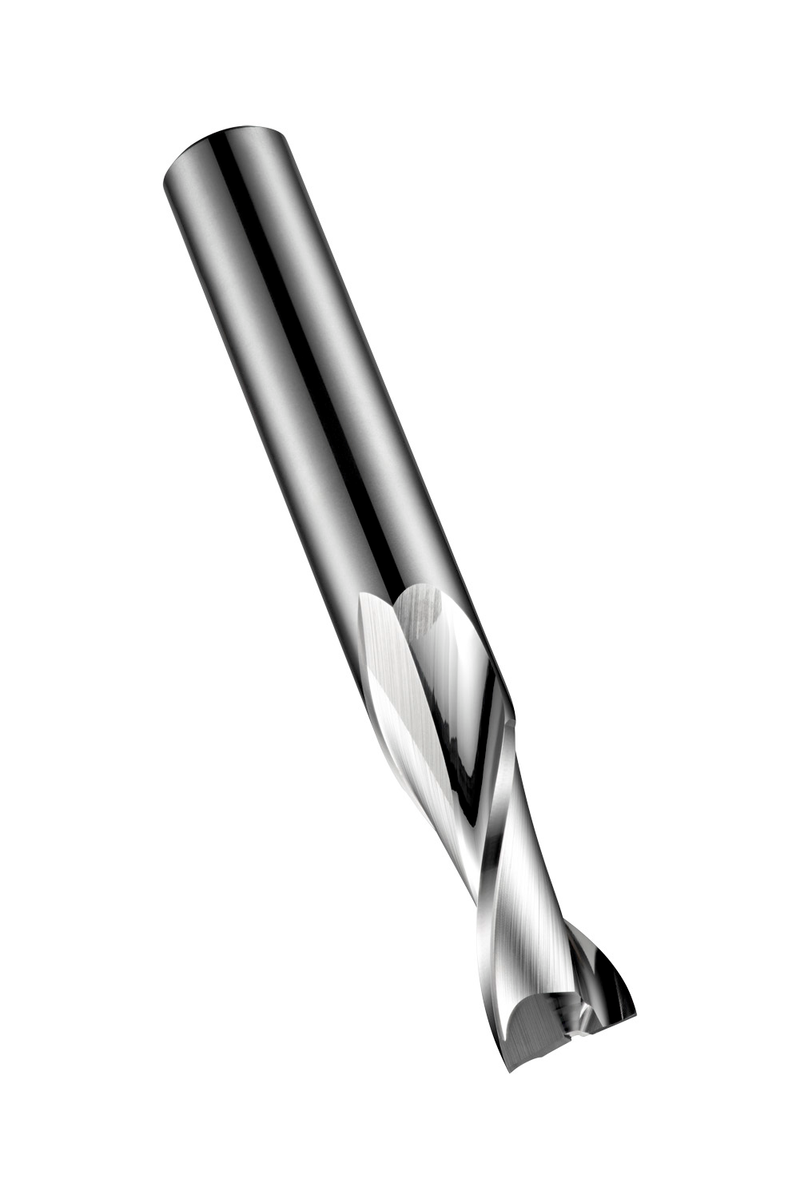

Fraise 2 dents série courte, diamètre 2 mm, longueur de coupe 6,5 mm, longueur totale 40 mm et rayon d'angle de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 4 mm, carbure monobloc finition polie, hélice 30° et angle de dépouille 20° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6102.0
GradePoli
Product Number8030270
Product FamilyS610

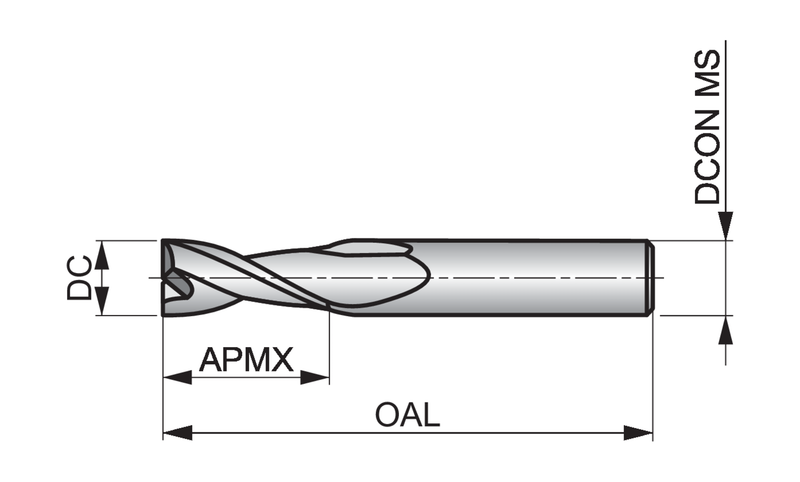

Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030270
EAN7320760949924
File Type Download
S6102.0 — 3D Model STP Download
S6102.0 — 2D Model DXF Download
S6102.0 — Line Drawing PDF Download
