UGC DOR8030271
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.49 CAD - $64.49 CAD
$64.49 CAD
$64.49 CAD - $64.49 CAD
$64.49 CAD

Vendu en lots de : 1

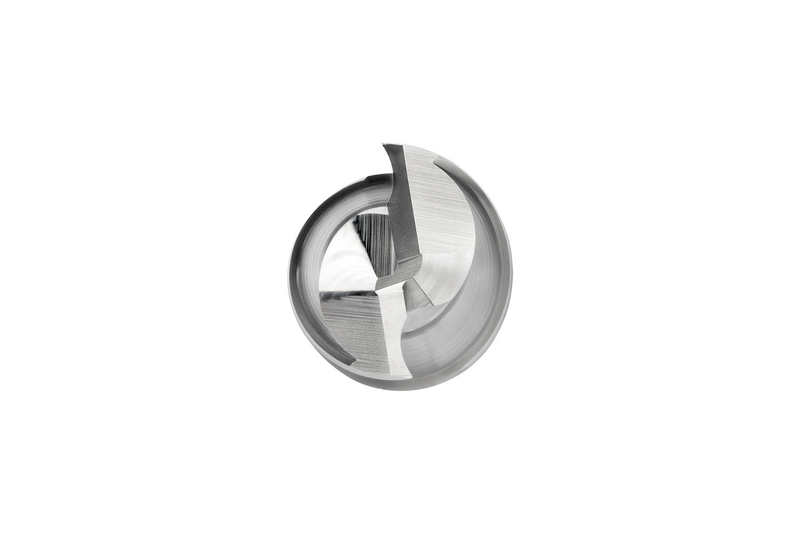

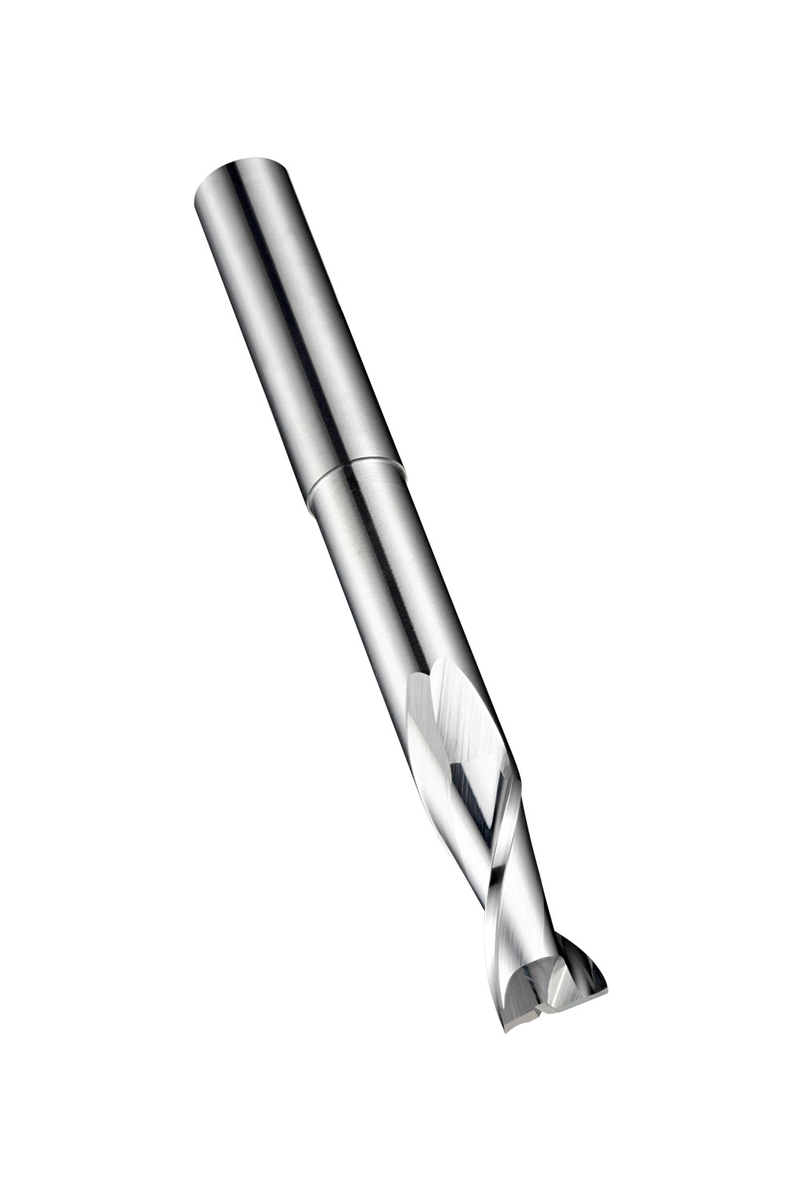

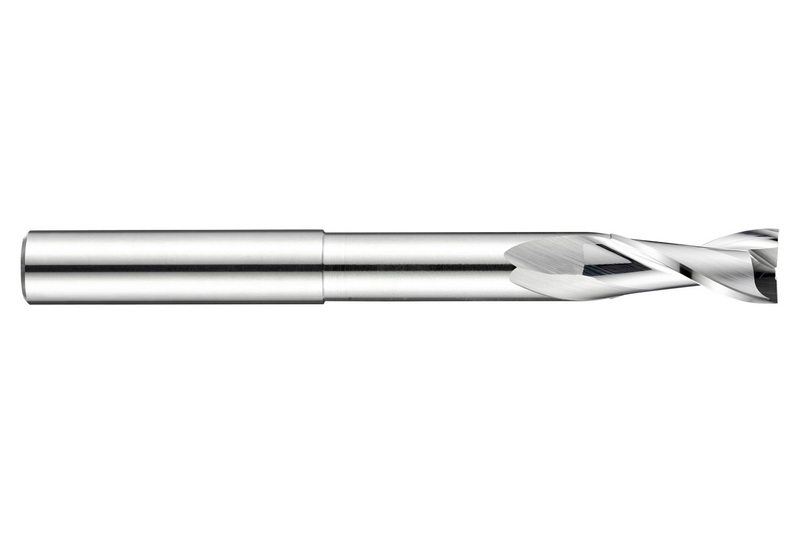

Fraise 2 dents queue cylindrique courte, diamètre 3mm, longueur de coupe 9mm, longueur totale 40mm, portée 15mm avec dégagement et rayon de coin 0.1mm, selon la norme DORMER avec queue cylindrique 3mm, carbure monobloc finition polie, hélice 30° et angle de dépouille 20° pour le surfaçage en bout, le fraisage de rainures, le fraisage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6113.0XD3
GradePoli
Product Number8030271
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

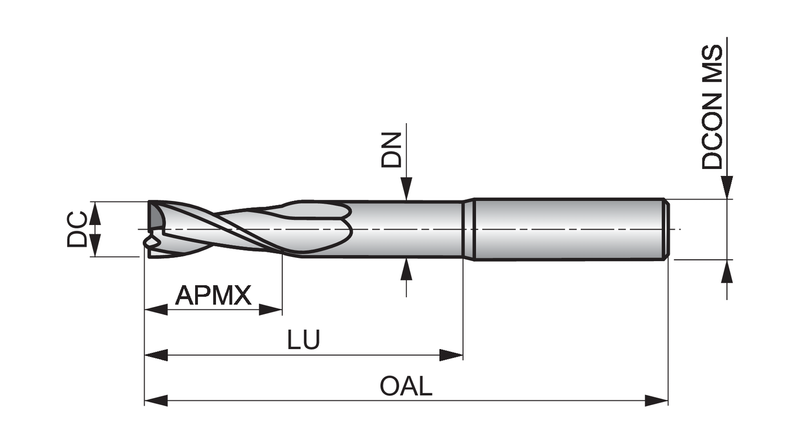

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030271
EAN7320760949931
File Type Download
S6113.0XD3 — 3D Model STP Download
S6113.0XD3 — 2D Model DXF Download
S6113.0XD3 — Line Drawing PDF Download
