UGC DOR8030272
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.49 CAD - $64.49 CAD
$64.49 CAD
$64.49 CAD - $64.49 CAD
$64.49 CAD

Vendu en lots de : 1

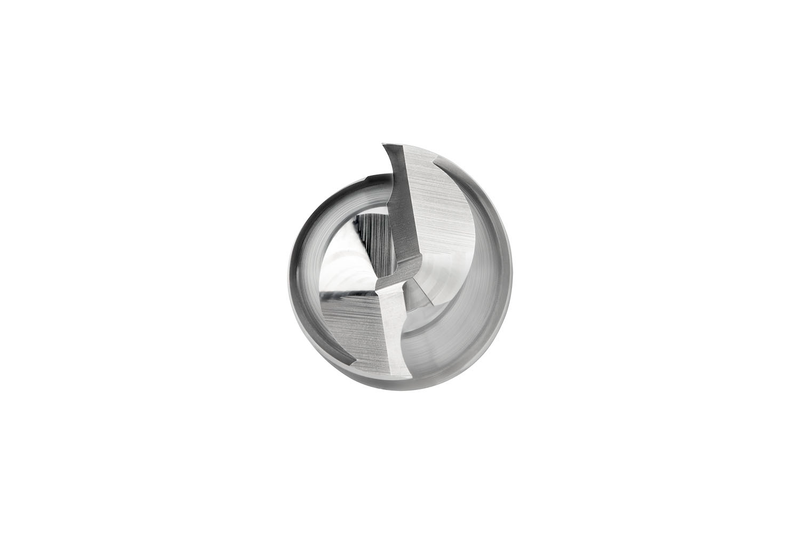

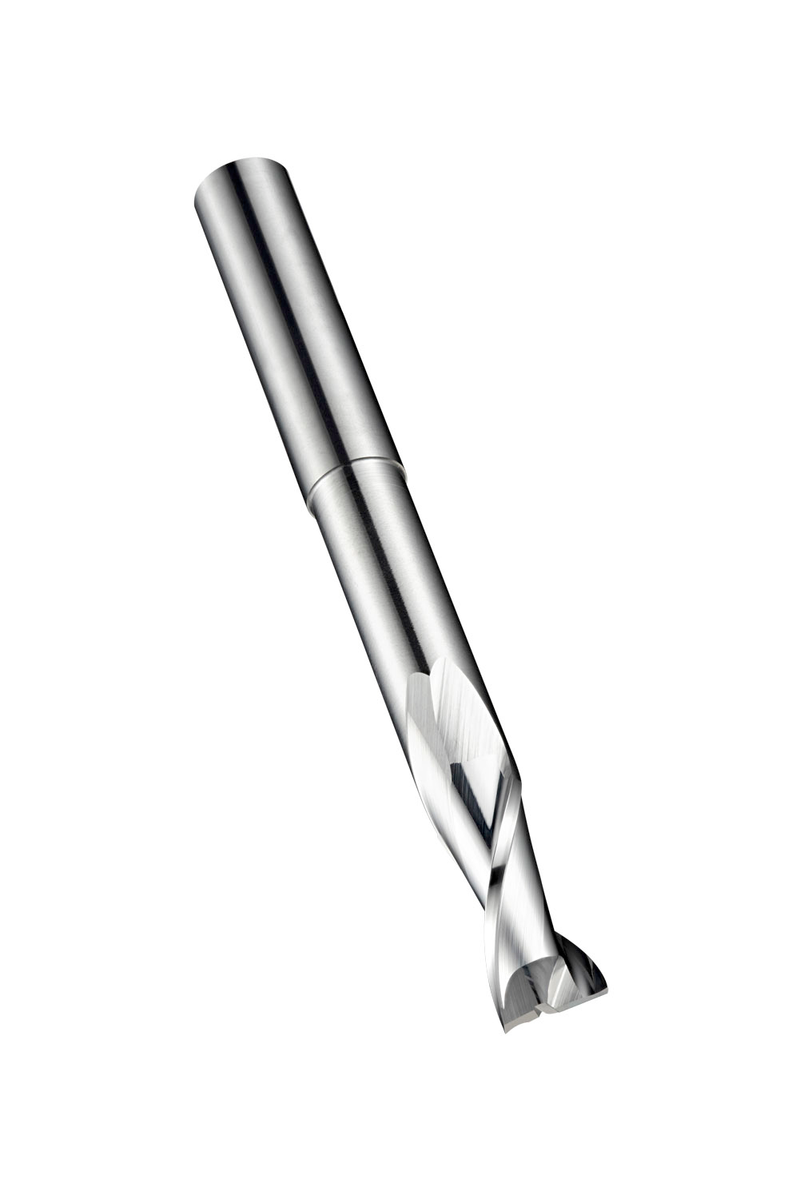

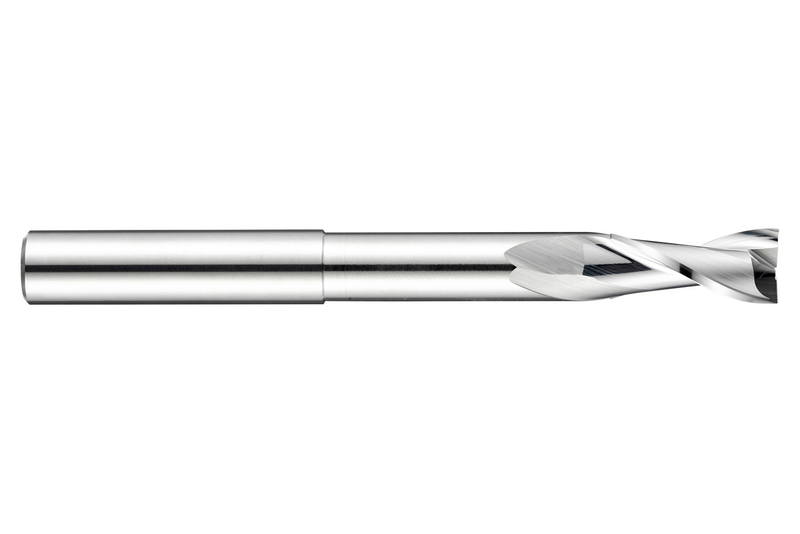

Fraise en bout courte 2 dents, diamètre 3mm, longueur de coupe 9mm, longueur totale 50mm, portée 15mm avec dégagement de col et rayons de coin de 0,1mm, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec finition polie, hélice à 30° et angle de dépouille à 20° pour le fraisage d'épaulements, le fraisage de rainures, le fraisage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6113.0XD6
GradePoli
Product Number8030272
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

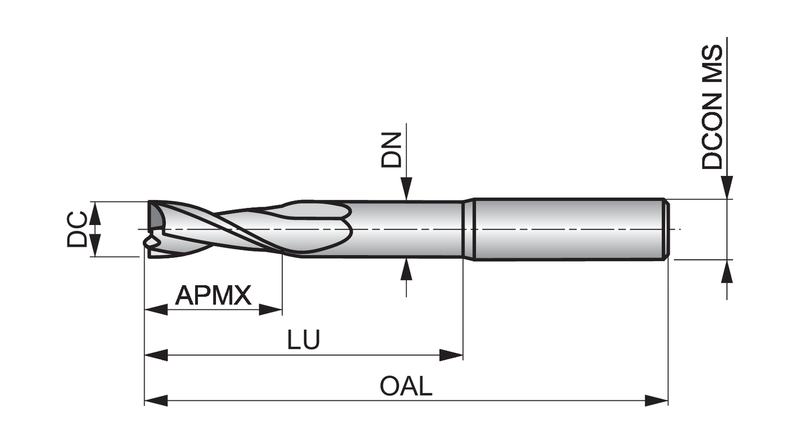

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030272
EAN7320760949948
File Type Download
S6113.0XD6 — 3D Model STP Download
S6113.0XD6 — 2D Model DXF Download
S6113.0XD6 — Line Drawing PDF Download
