S6114.0XD6
S6114.0XD6
S6114.0XD6
S6114.0XD6

S6114.0XD6

UGC DOR8030274
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.83 CAD - $70.83 CAD
$70.83 CAD
$70.83 CAD - $70.83 CAD
$70.83 CAD

Vendu en lots de : 1

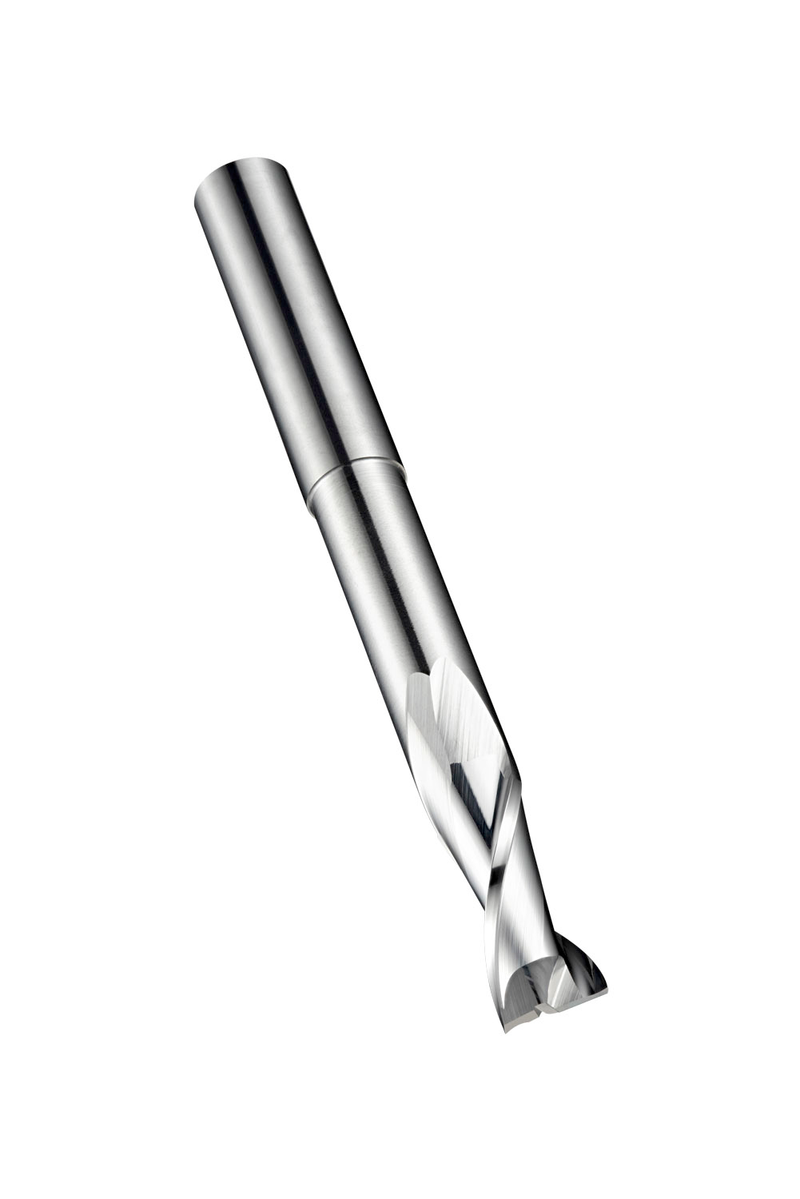

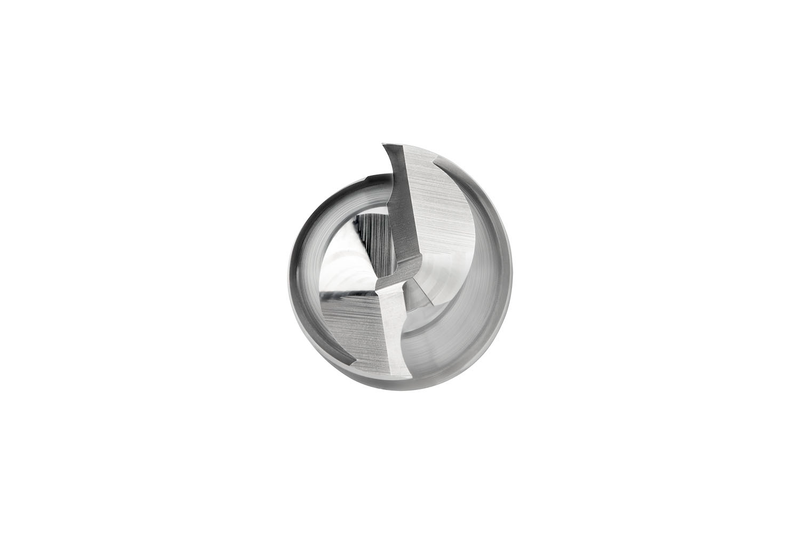

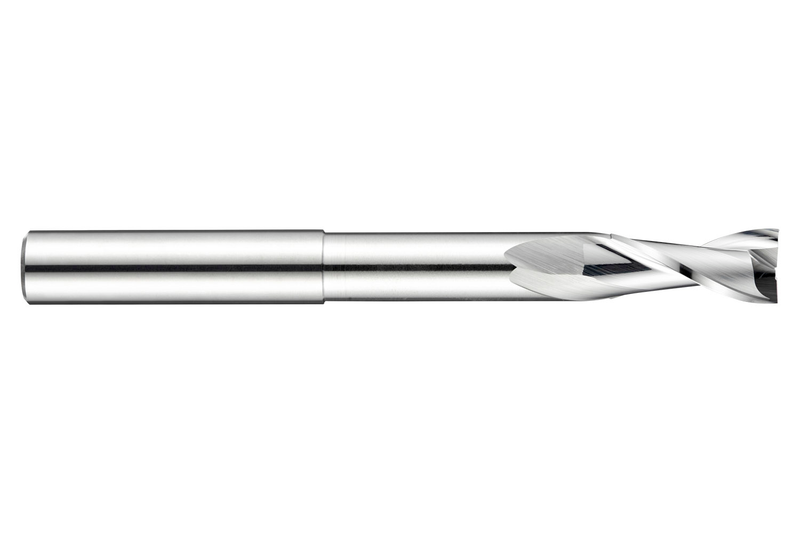

Fraise 2 dents queue courte, diamètre 4 mm avec 12 mm de longueur de coupe, longueur totale 50 mm, 20 mm de portée avec dégagement et rayons de coin de 0,1 mm, conforme à la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc avec finition polie, hélice à 30° et angle de dépouille de 20° pour le fraisage d'épaulements, le fraisage de rainures, l'usinage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6114.0XD6
GradePoli
Product Number8030274
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

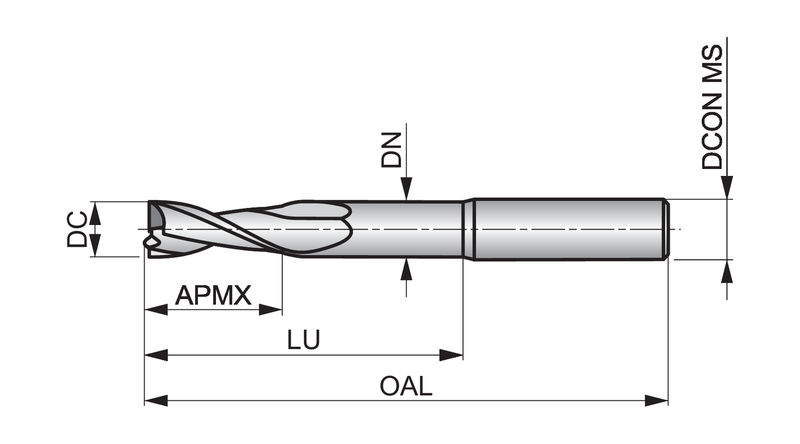

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030274
EAN7320760949962
File Type Download
S6114.0XD6 — 3D Model STP Download
S6114.0XD6 — 2D Model DXF Download
S6114.0XD6 — Line Drawing PDF Download
