UGC DOR8030275
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.89 CAD - $71.89 CAD
$71.89 CAD
$71.89 CAD - $71.89 CAD
$71.89 CAD

Vendu en lots de : 1

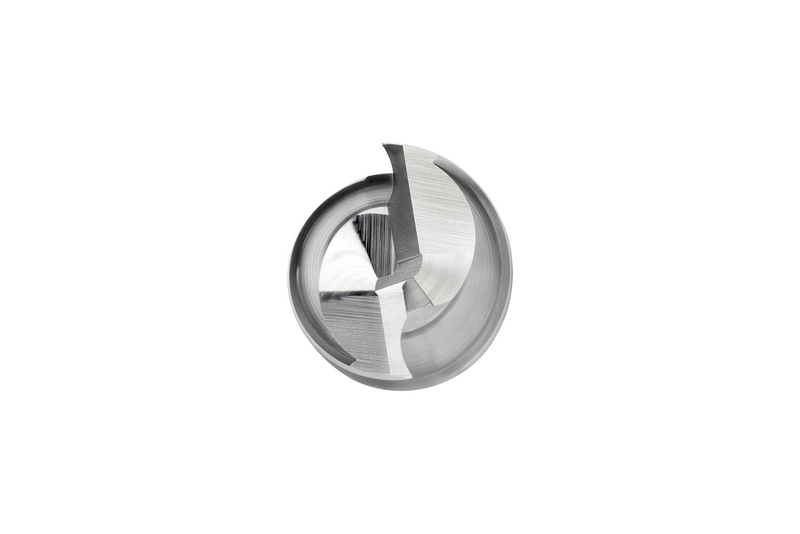

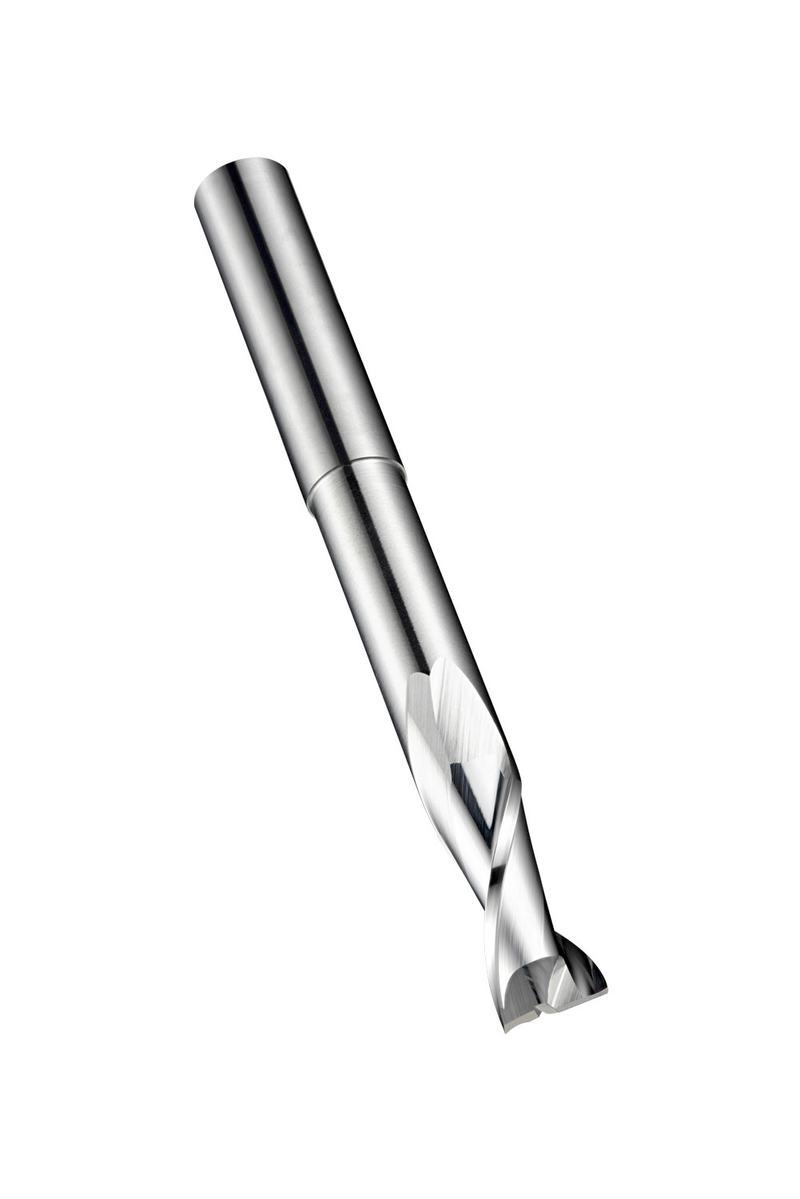

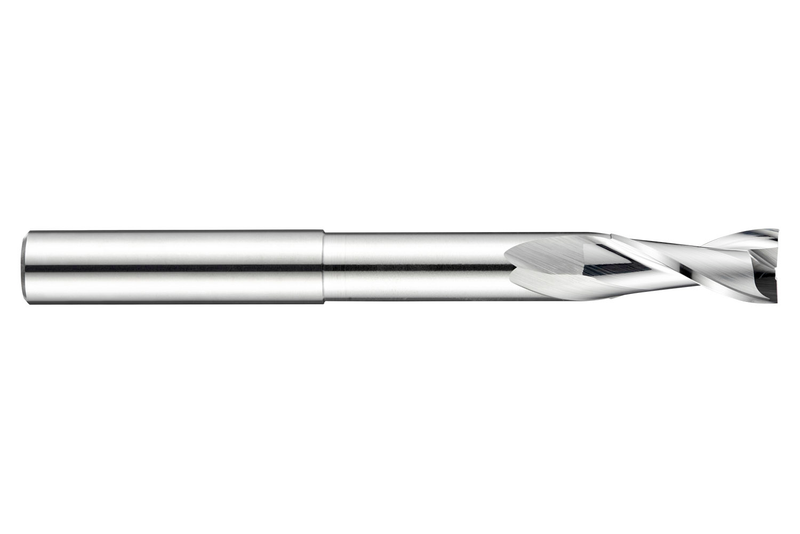

Fraise en bout courte 2 dents, diamètre 5 mm, longueur de coupe 15 mm, longueur totale 50 mm, portée 20 mm avec dégagement de col et rayons d'angle de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le fraisage d'épaulements, le fraisage de rainures, le fraisage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6115.0
GradePoli
Product Number8030275
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm

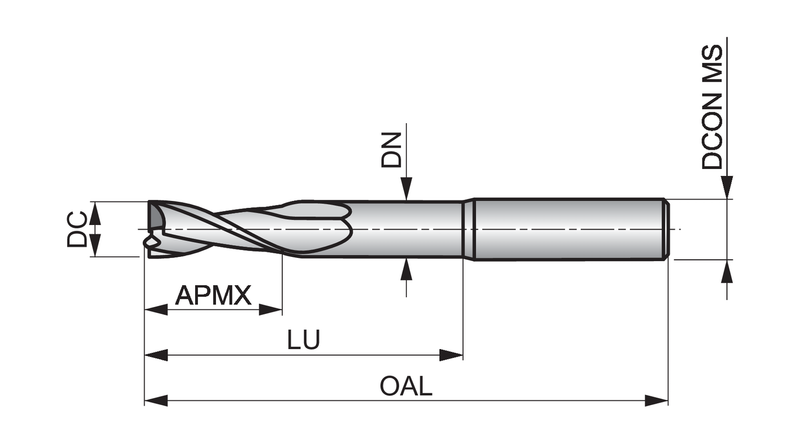

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030275
EAN7320760949979
File Type Download
S6115.0 — 3D Model STP Download
S6115.0 — 2D Model DXF Download
S6115.0 — Line Drawing PDF Download
