UGC DOR8030276
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.84 CAD - $49.84 CAD
$49.84 CAD
$49.84 CAD - $49.84 CAD
$49.84 CAD

Vendu en lots de : 1

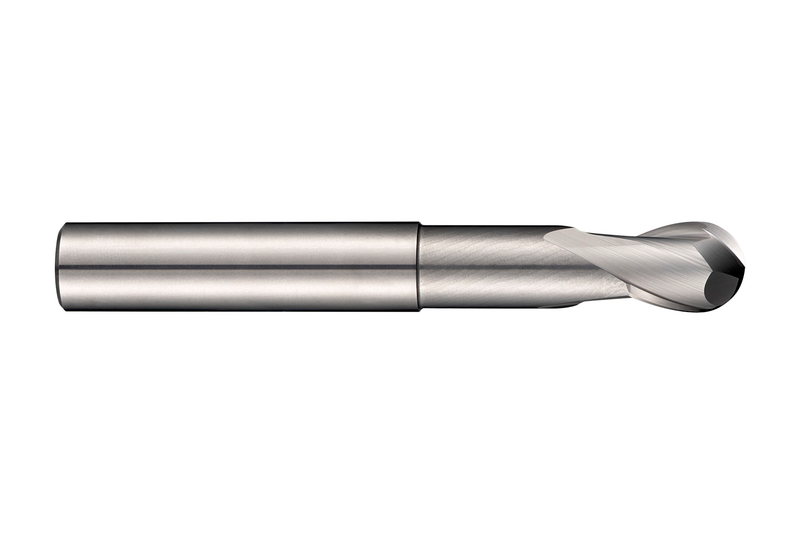

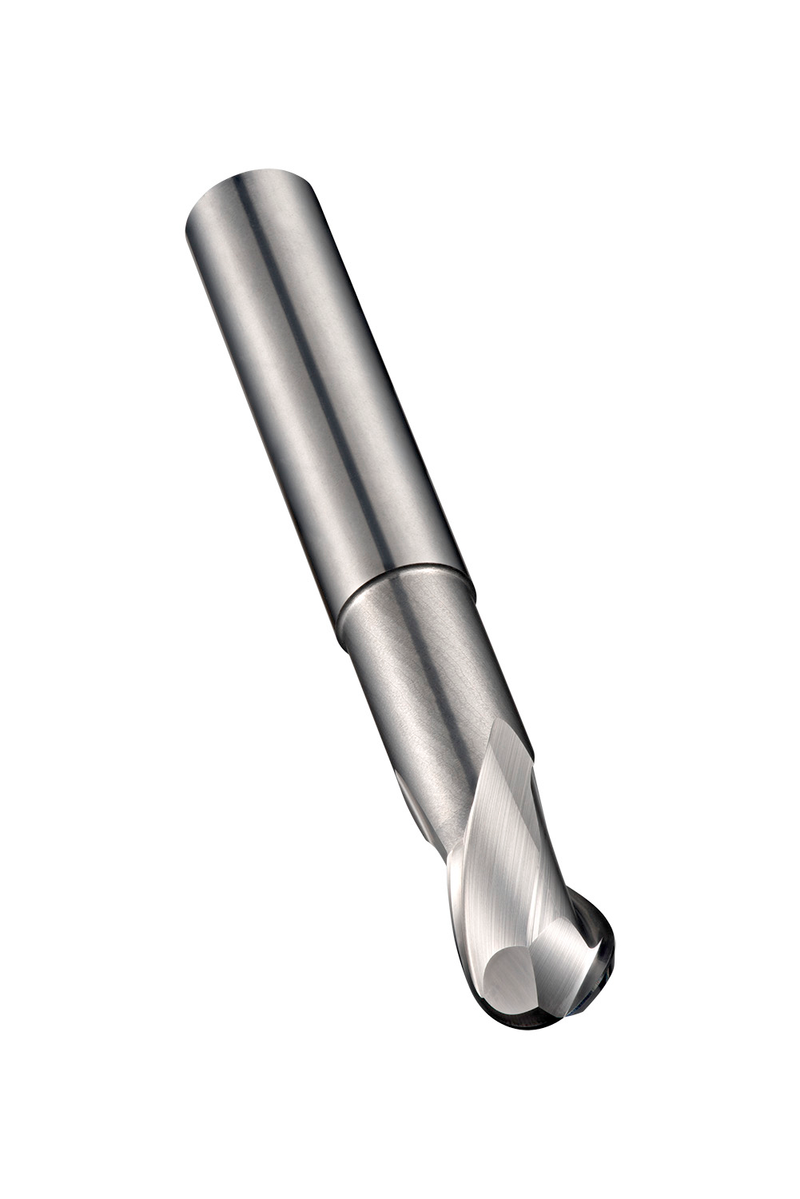

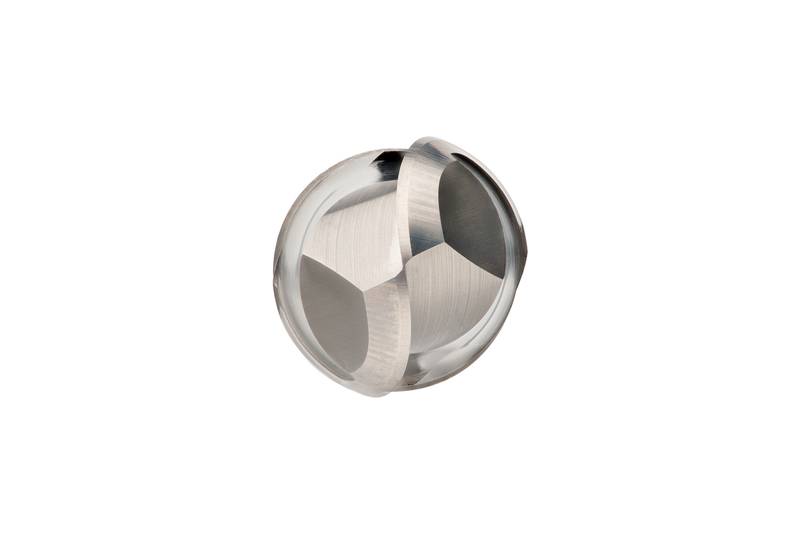

Fraise à rayonner extra-courte 2 dents, diamètre 1mm avec une longueur de coupe de 0.8mm, une longueur totale de 50mm, un dégagement de 10mm avec dégagement de col et un rayon de profil complet de 0.5mm, selon la norme DORMER avec une queue cylindrique de 4mm, en carbure monobloc avec finition brillante, hélice de 30° et angle de dépouille de 11° pour le fraisage en copie dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6291.0
GradeLumineux
Product Number8030276
Product FamilyS629

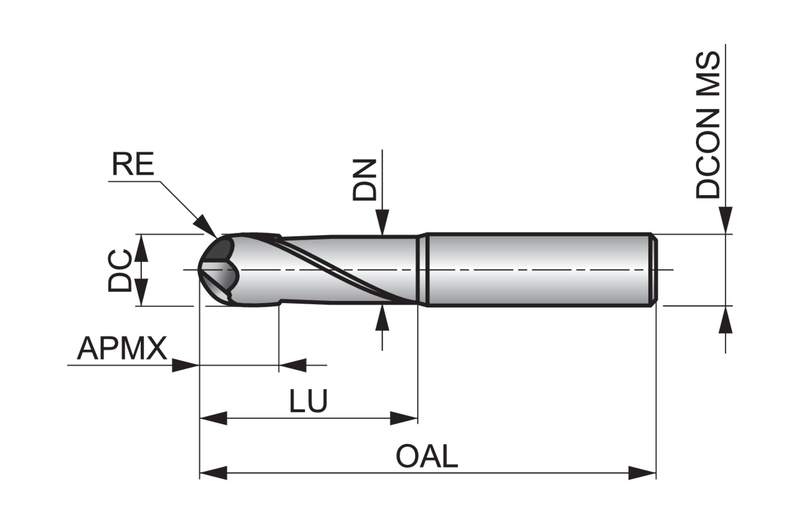

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.0315"
Depth of Cut Max — mm (APMX)0.8 mm
Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)10.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030276
EAN7320760949986
File Type Download
S6291.0 — 3D Model STP Download
S6291.0 — 2D Model DXF Download
S6291.0 — Line Drawing PDF Download
