UGC DOR8030278
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.26 CAD - $48.26 CAD
$48.26 CAD
$48.26 CAD - $48.26 CAD
$48.26 CAD

Vendu en lots de : 1

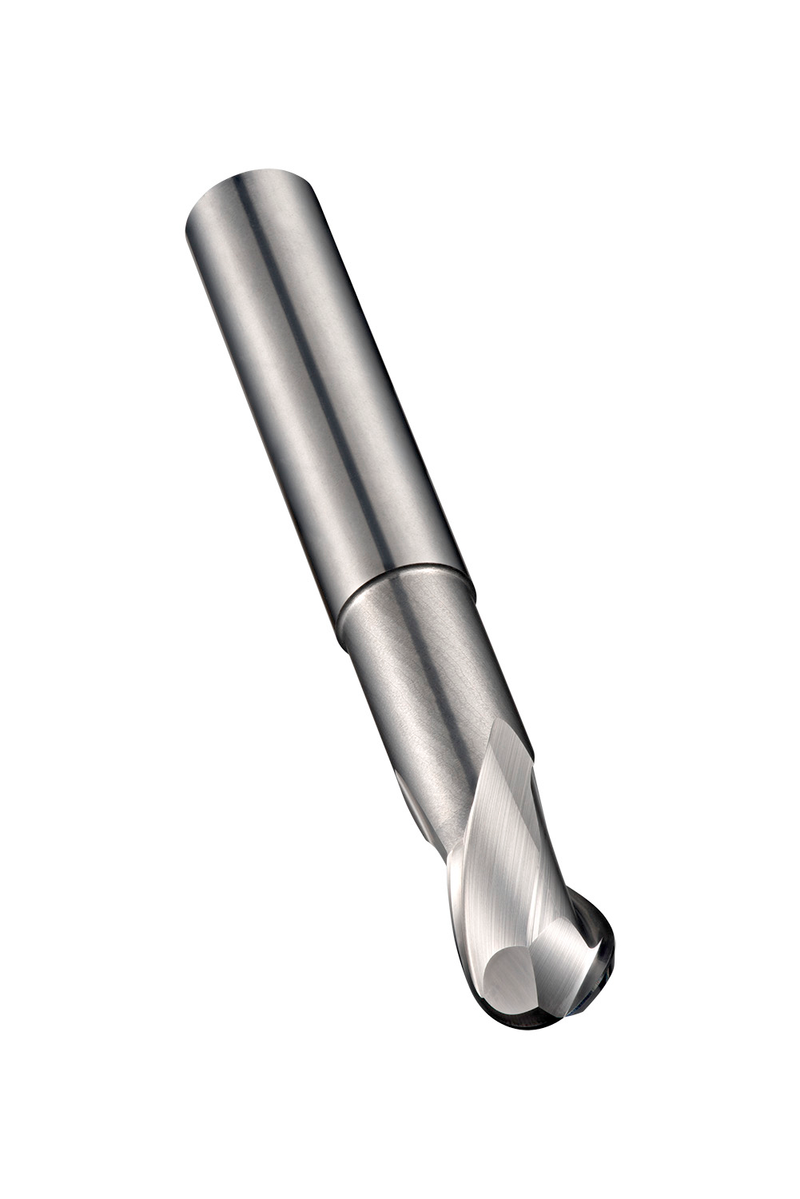

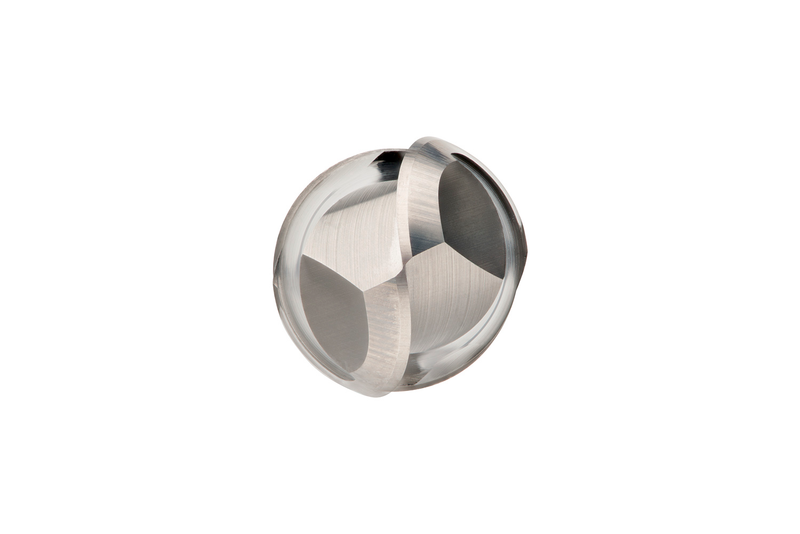

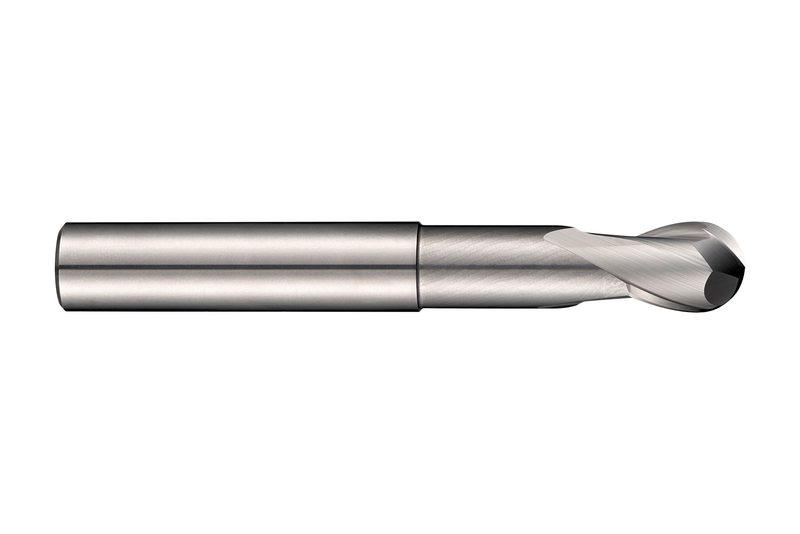

Fraise à rayon de bout à 2 dents, série extra-courte, diamètre 2 mm, longueur de coupe 1,6 mm, longueur totale 60 mm, longueur utile 18 mm avec dégagement de col, rayon de profil complet 1 mm, selon la norme DORMER, avec queue cylindrique 4 mm, en carbure monobloc, finition brillante, hélice 30° et angle de dépouille 11° pour le fraisage de copiage dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6292.0
GradeLumineux
Product Number8030278
Product FamilyS629

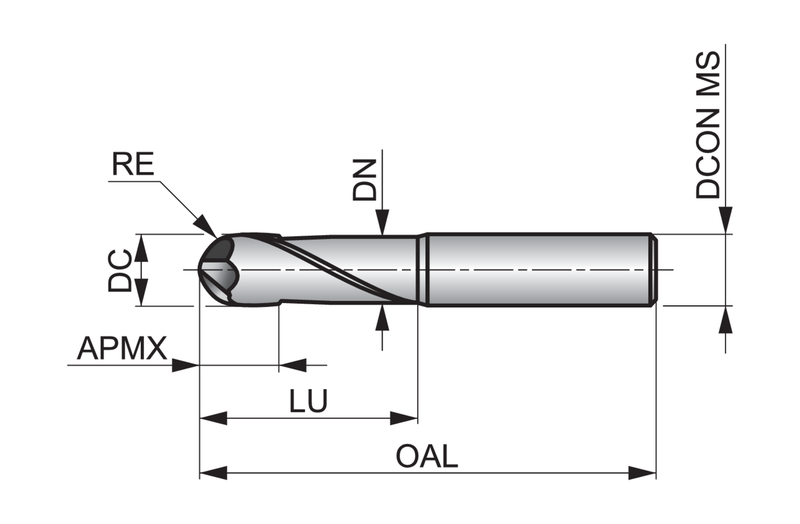

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030278
EAN7320760950005
File Type Download
S6292.0 — 3D Model STP Download
S6292.0 — 2D Model DXF Download
S6292.0 — Line Drawing PDF Download
