UGC DOR8030279
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.87 CAD - $44.87 CAD
$44.87 CAD
$44.87 CAD - $44.87 CAD
$44.87 CAD

Vendu en lots de : 1

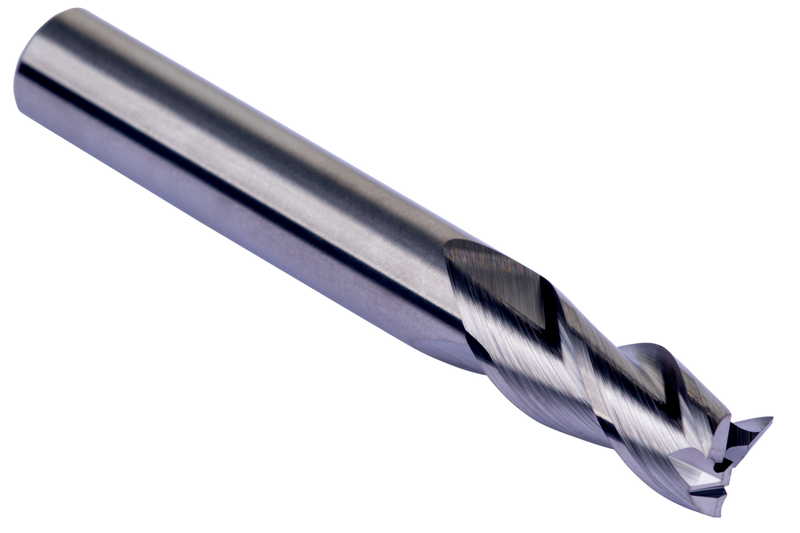

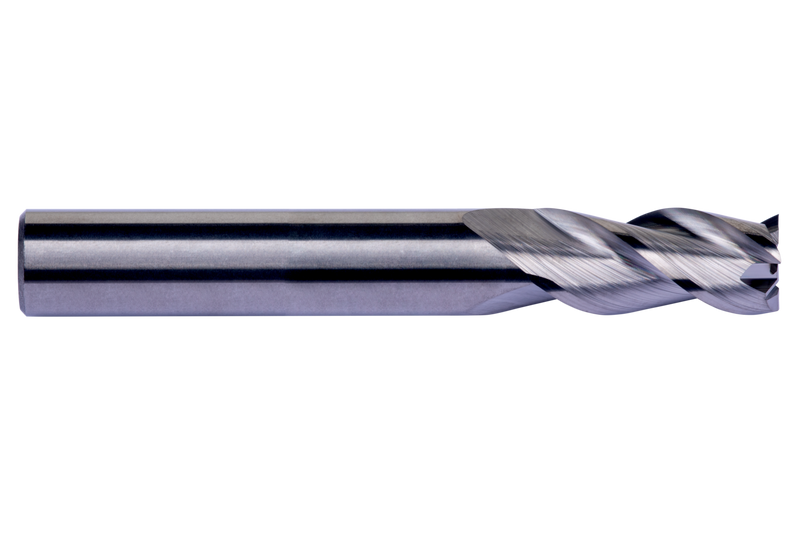

Fraise 3 dents série courte, diamètre 1mm avec une longueur de coupe de 3mm et une longueur totale de 40mm, selon la norme DORMER avec un diamètre de queue de 4mm, en carbure monobloc avec une finition brillante, hélice de 40° avec un pas différentiel et un angle de coupe de 13° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6501.0
GradeLumineux
Product Number8030279
Product FamilyS650
Insert Geometry
Depth of Cut Max — in (APMX)0.1181"
Depth of Cut Max — mm (APMX)3.0 mm

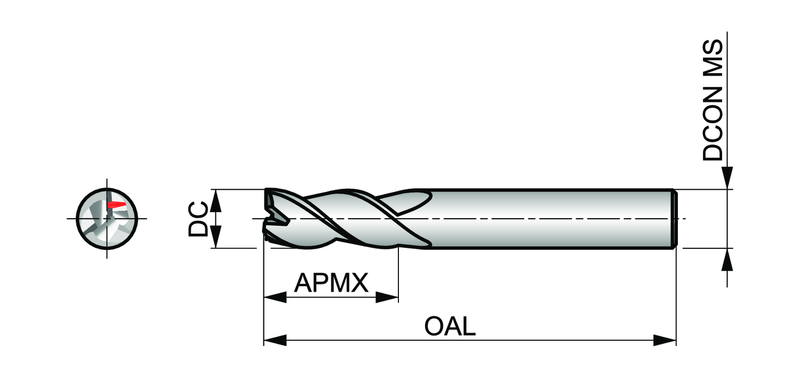

Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm

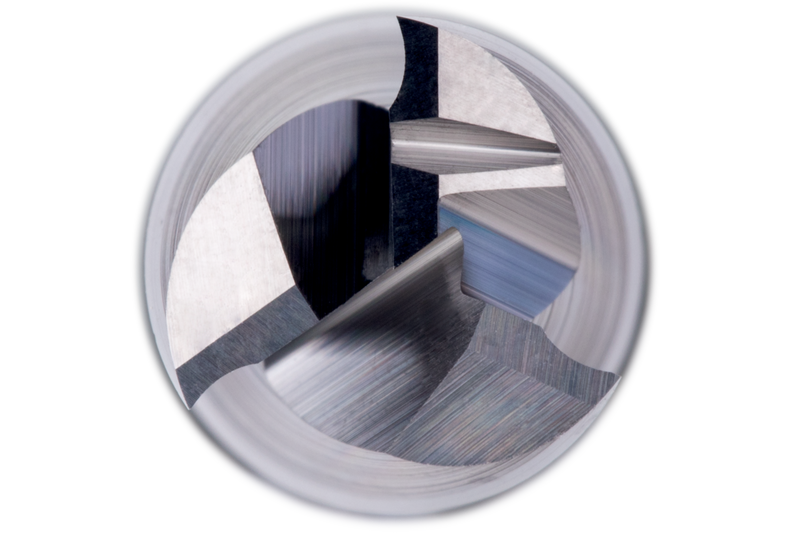

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030279
EAN7320760950012
File Type Download
S6501.0 — 3D Model STP Download
S6501.0 — 2D Model DXF Download
S6501.0 — Line Drawing PDF Download
