UGC DOR8030280
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.87 CAD - $44.87 CAD
$44.87 CAD
$44.87 CAD - $44.87 CAD
$44.87 CAD

Vendu en lots de : 1

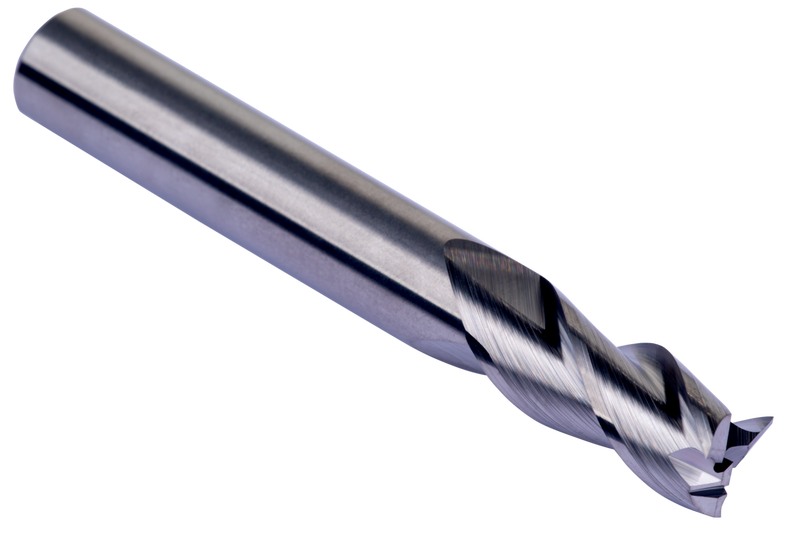

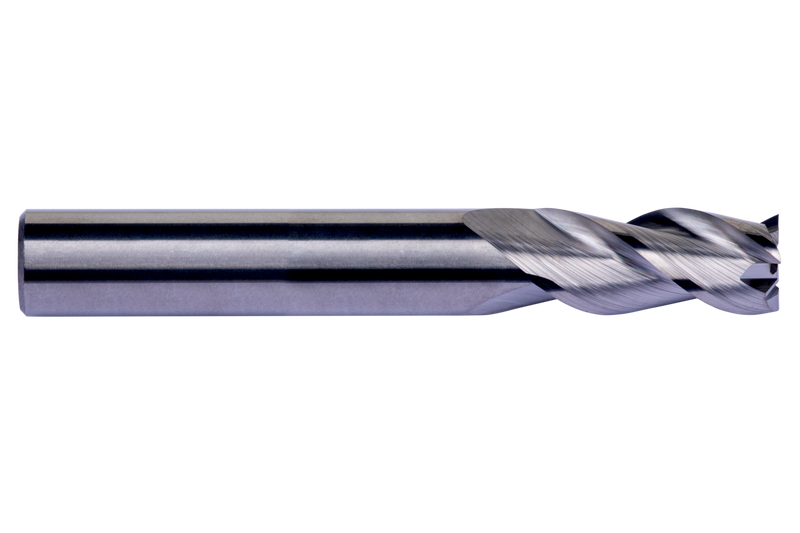

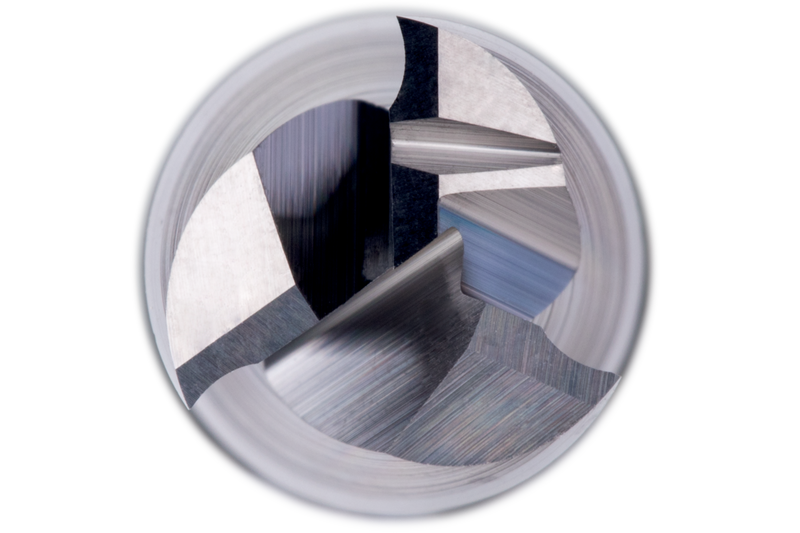

Fraise en bout courte 3 dents, diamètre 1,5mm, longueur de coupe 4,5mm et longueur totale 40mm, selon la norme DORMER avec une queue cylindrique de 4mm, carbure monobloc finition brillante, hélice à 40° avec pas différentiel et angle de dépouille de 13° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6501.5
GradeLumineux
Product Number8030280
Product FamilyS650
Insert Geometry
Depth of Cut Max — in (APMX)0.1772"
Depth of Cut Max — mm (APMX)4.5 mm

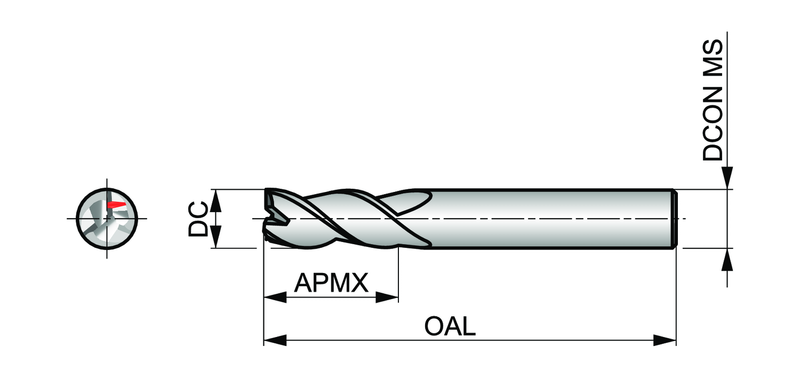

Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030280
EAN7320760950029
File Type Download
S6501.5 — 3D Model STP Download
S6501.5 — 2D Model DXF Download
S6501.5 — Line Drawing PDF Download
