S6502.0
S6502.0
S6502.0
S6502.0

S6502.0

UGC DOR8030281
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.44 CAD - $43.44 CAD
$43.44 CAD
$43.44 CAD - $43.44 CAD
$43.44 CAD

Vendu en lots de : 1

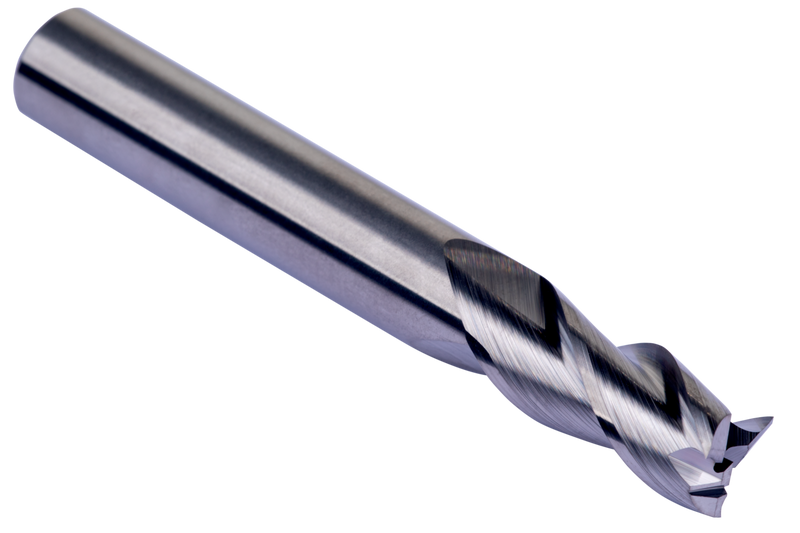

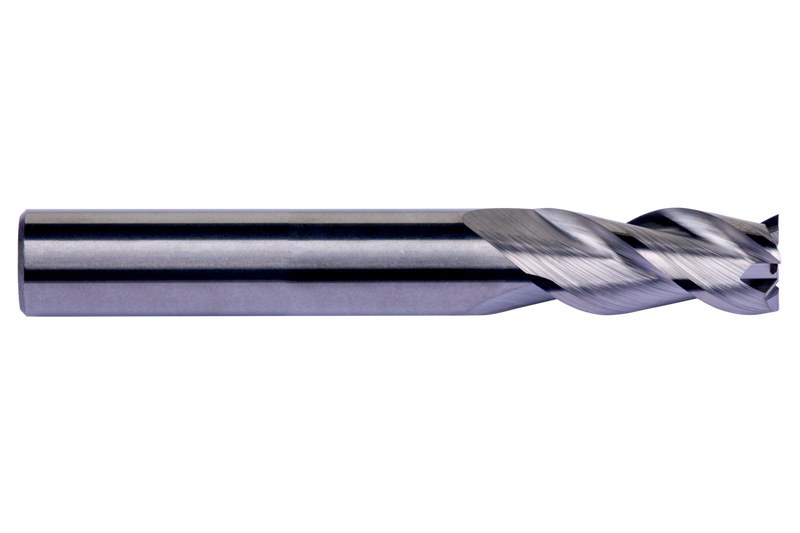

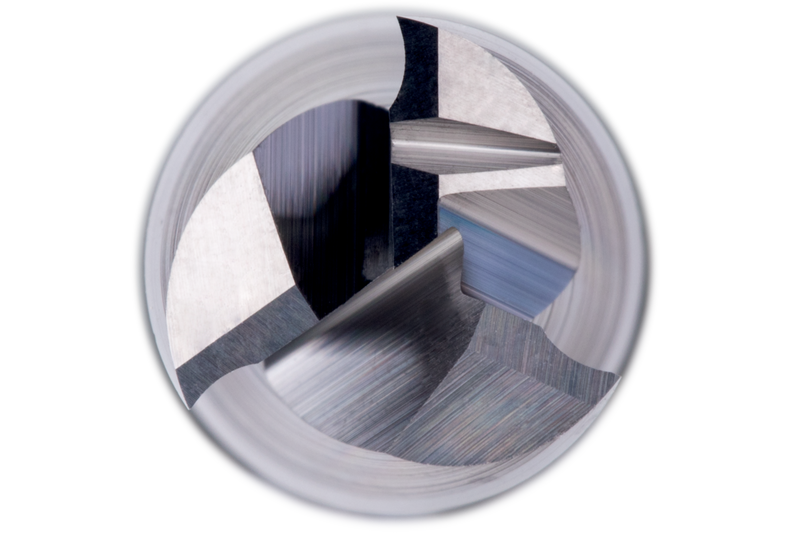

Fraise 3 dents queue courte, diamètre 2mm avec une longueur de coupe de 6.5mm et une longueur totale de 40mm, selon le standard DORMER avec une queue cylindrique de 4mm, en carbure monobloc, finition brillante, hélice de 40° à pas différentiel et angle de dépouille de 13° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6502.0
GradeLumineux
Product Number8030281
Product FamilyS650

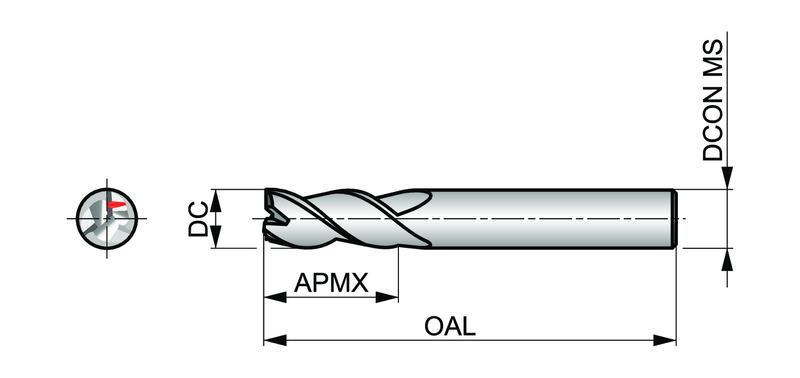

Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030281
EAN7320760950036
File Type Download
S6502.0 — 3D Model STP Download
S6502.0 — 2D Model DXF Download
S6502.0 — Line Drawing PDF Download
