UGC DOR8030282
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.77 CAD - $45.77 CAD
$45.77 CAD
$45.77 CAD - $45.77 CAD
$45.77 CAD

Vendu en lots de : 1

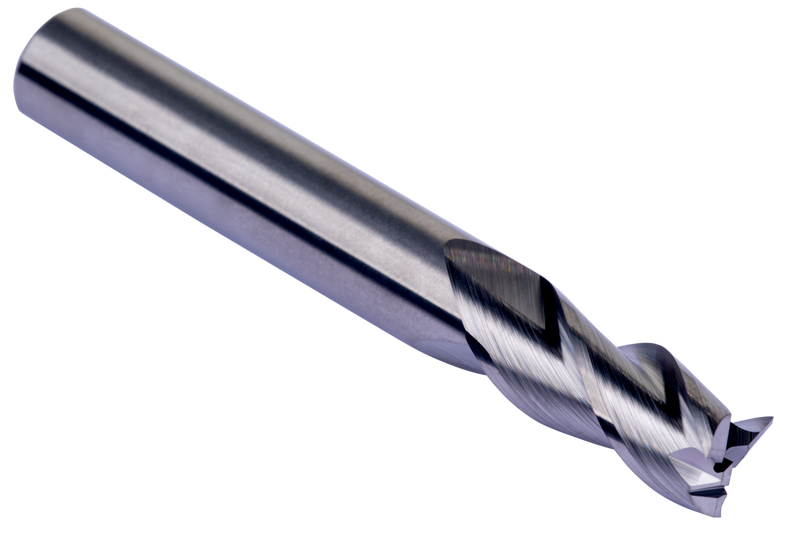

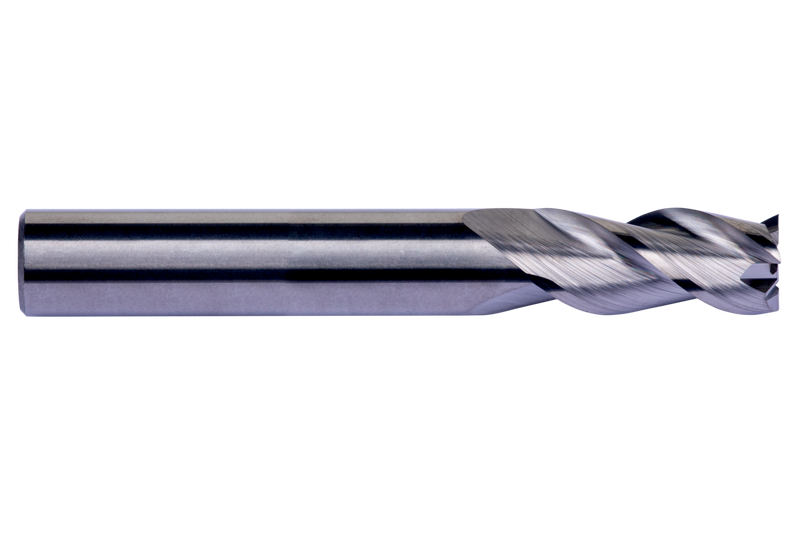

Fraise en bout série courte à 3 arêtes, diamètre 2,5 mm, longueur de coupe 6,5 mm et longueur totale 40 mm, selon la norme DORMER, avec queue cylindrique de 4 mm, en carbure monobloc, finition brillante, hélice à 40° avec pas différentiel et angle de dépouille de 13° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6502.5
GradeLumineux
Product Number8030282
Product FamilyS650
Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm

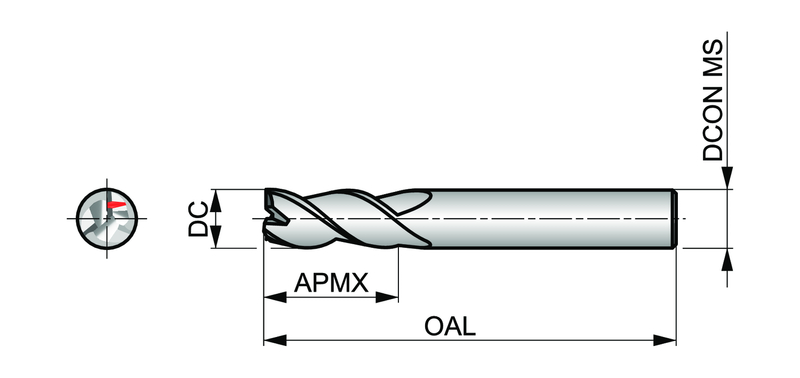

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm

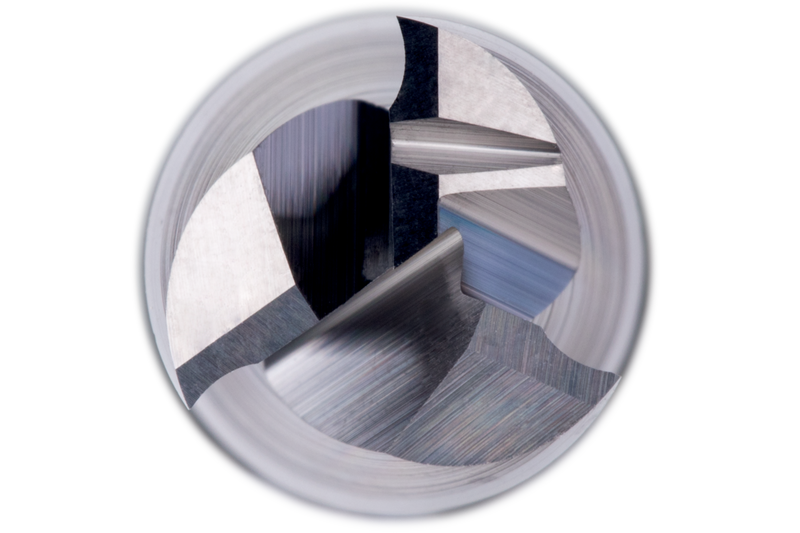

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030282
EAN7320760950043
File Type Download
S6502.5 — 3D Model STP Download
S6502.5 — 2D Model DXF Download
S6502.5 — Line Drawing PDF Download
