S6503.0XD3
S6503.0XD3
S6503.0XD3
S6503.0XD3

S6503.0XD3

UGC DOR8030283
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.44 CAD - $43.44 CAD
$43.44 CAD
$43.44 CAD - $43.44 CAD
$43.44 CAD

Vendu en lots de : 1

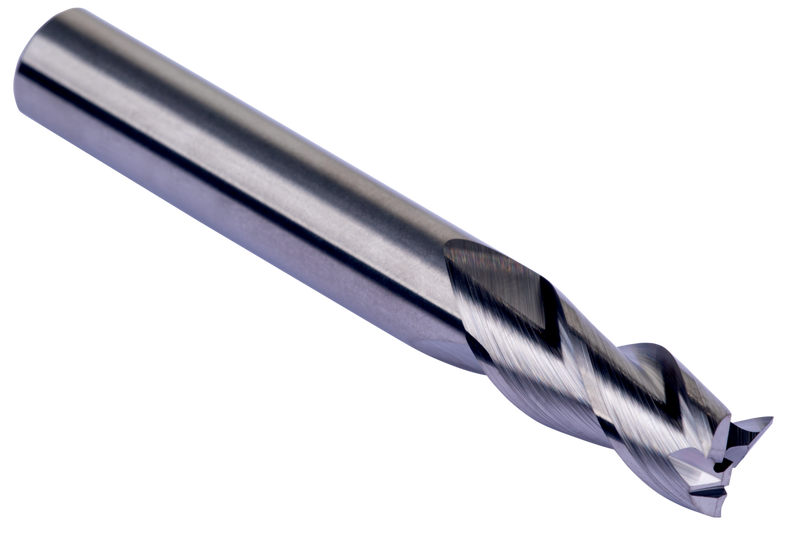

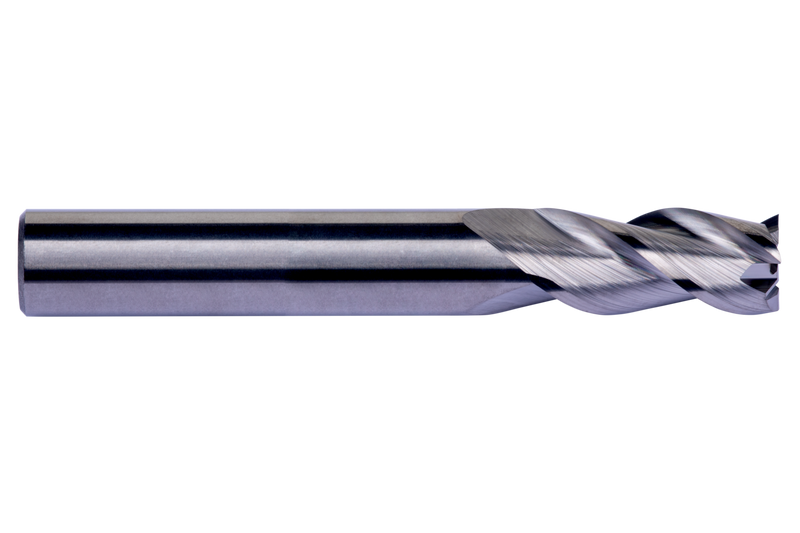

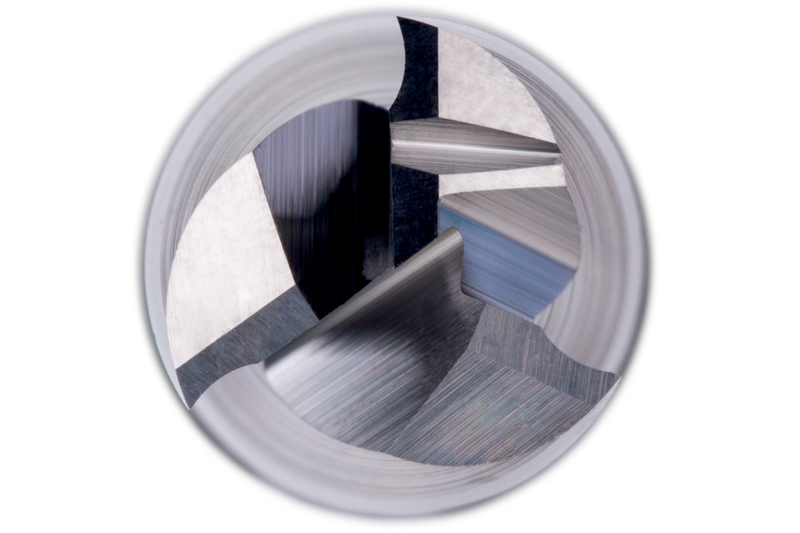

Fraise en bout série courte 3 dents, diamètre 3mm avec une longueur de coupe de 9mm et une longueur totale de 40mm, selon la norme DORMER avec une queue cylindrique de 3mm, en carbure monobloc finition brillante, hélice 40° à pas différentiel et angle de dépouille de 13° pour le fraisage en plongée, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6503.0XD3
GradeLumineux
Product Number8030283
Product FamilyS650
Insert Geometry
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

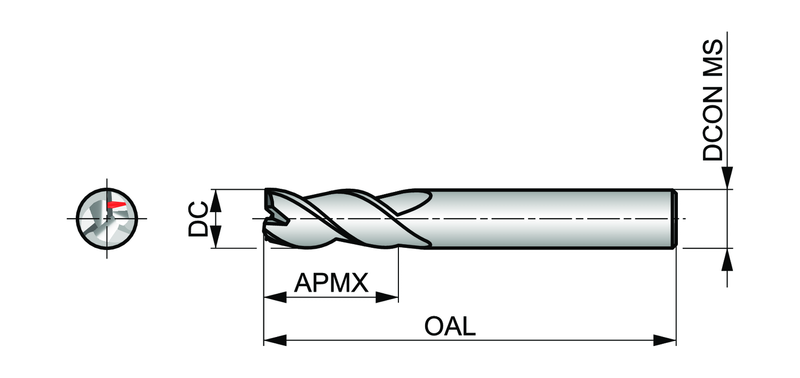

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030283
EAN7320760950050
File Type Download
S6503.0XD3 — 3D Model STP Download
S6503.0XD3 — 2D Model DXF Download
S6503.0XD3 — Line Drawing PDF Download
