UGC DOR8030291
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$123.16 CAD - $123.16 CAD
$123.16 CAD
$123.16 CAD - $123.16 CAD
$123.16 CAD

Vendu en lots de : 1

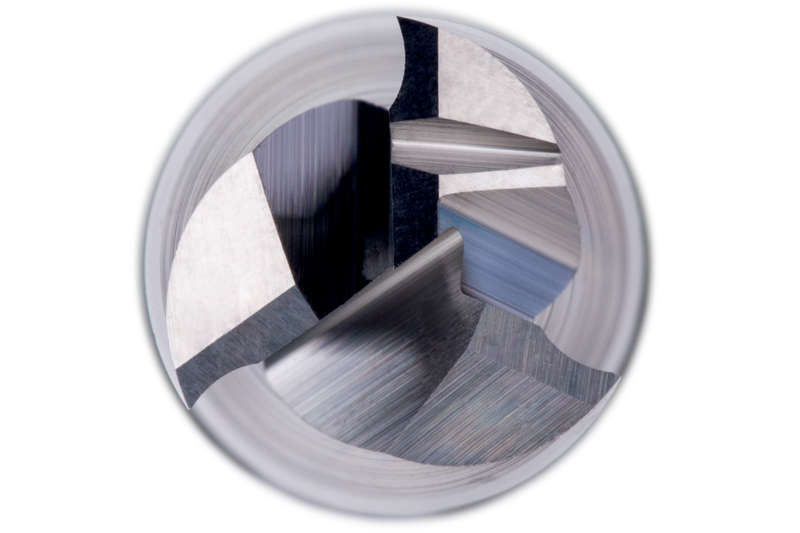

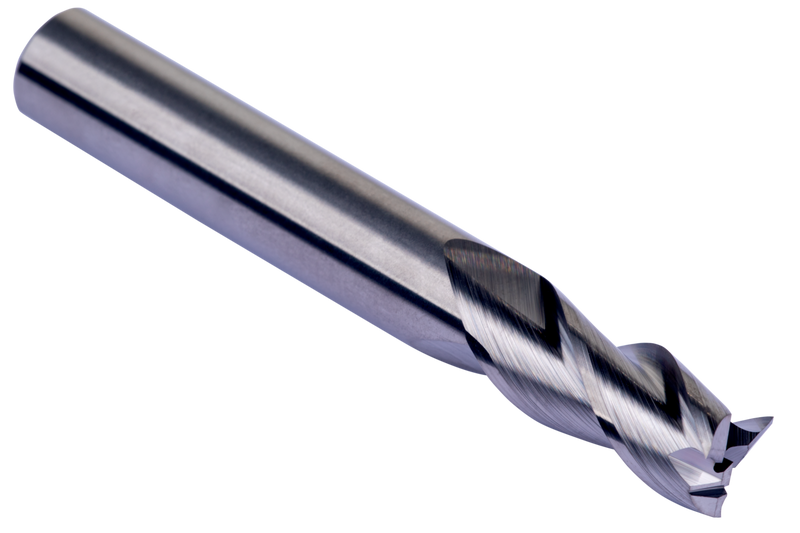

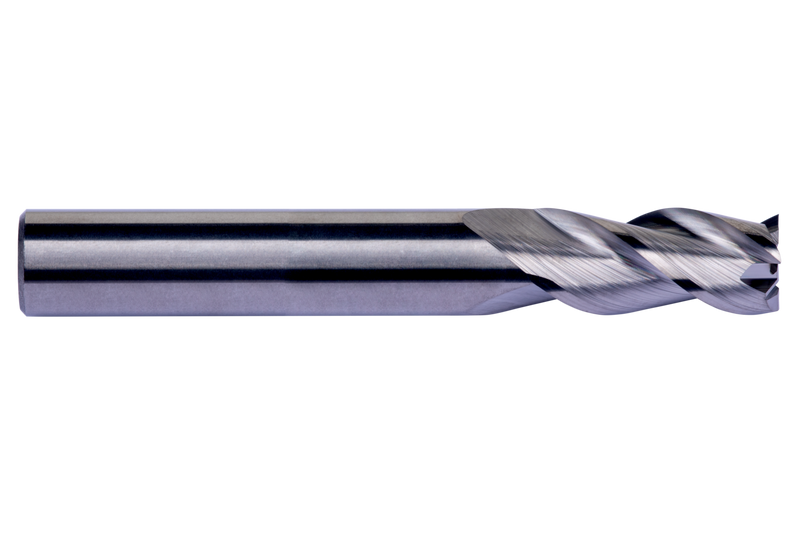

Fraise en bout série courte 3 dents, diamètre 12mm, longueur de coupe 25mm et longueur totale 75mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec finition brillante, hélice de 40° à pas différentiel et angle de dépouille de 13° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65012.0
GradeLumineux
Product Number8030291
Product FamilyS650

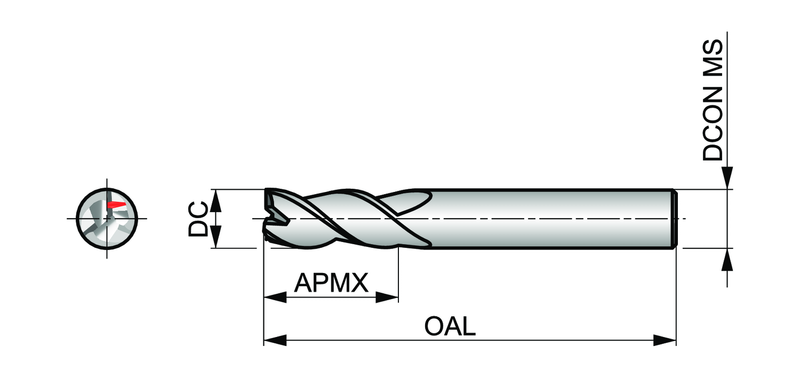

Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030291
EAN7320760950135
File Type Download
S65012.0 — 3D Model STP Download
S65012.0 — 2D Model DXF Download
S65012.0 — Line Drawing PDF Download
