UGC DOR8030292
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.34 CAD - $154.34 CAD
$154.34 CAD
$154.34 CAD - $154.34 CAD
$154.34 CAD

Vendu en lots de : 1

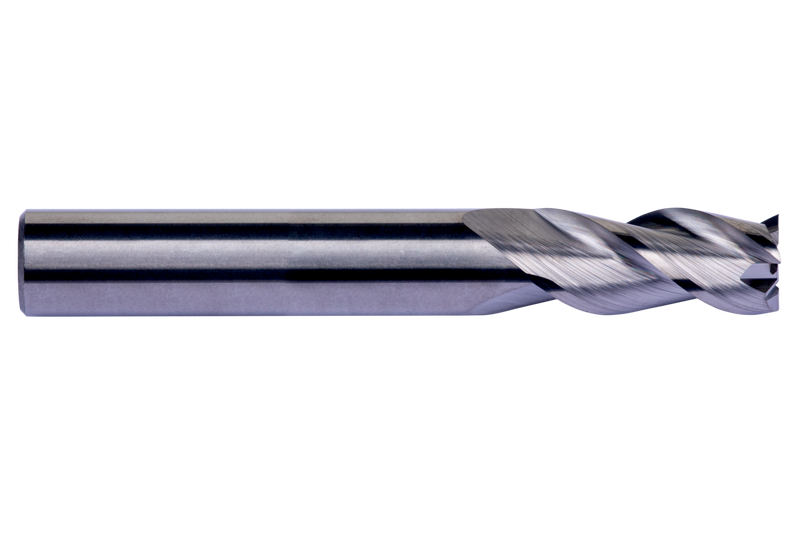

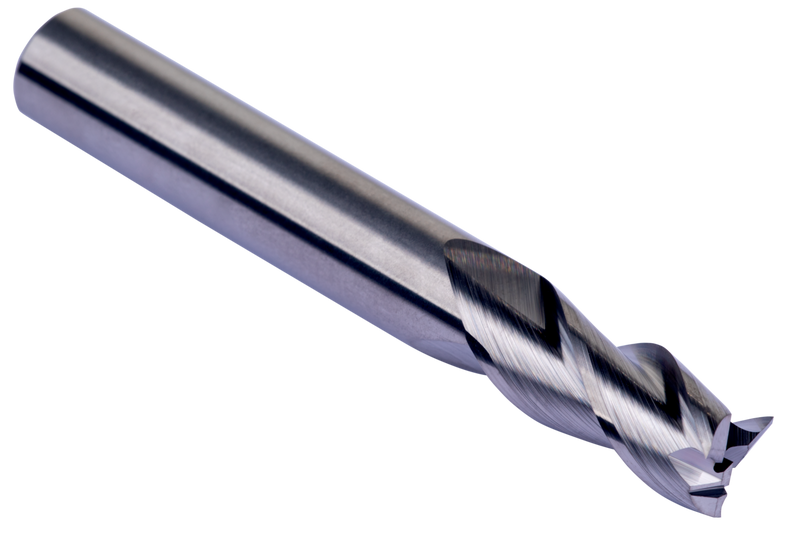

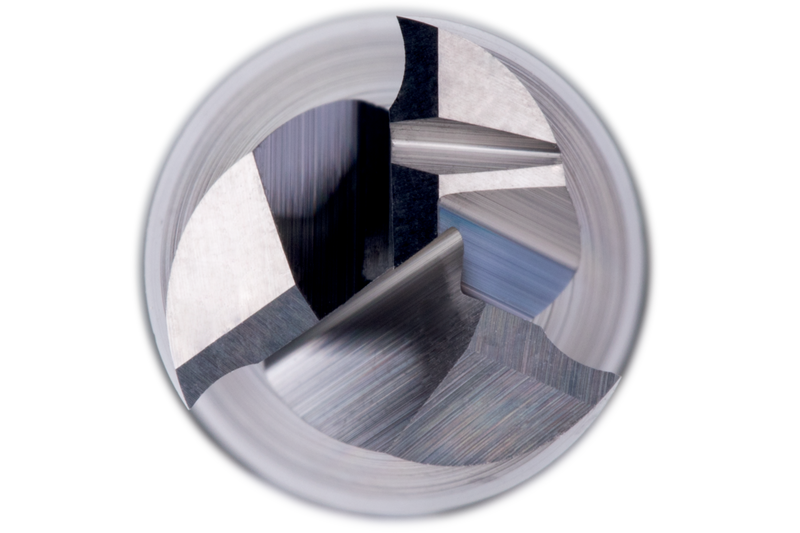

Fraise trois tailles courte de diamètre 14mm avec une longueur de coupe de 32mm et une longueur totale de 90mm, selon la norme DORMER avec une queue cylindrique de 14mm, en carbure monobloc avec finition brillante, hélice à 40° avec pas différentiel et un angle de dépouille de 13° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65014.0
GradeLumineux
Product Number8030292
Product FamilyS650
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

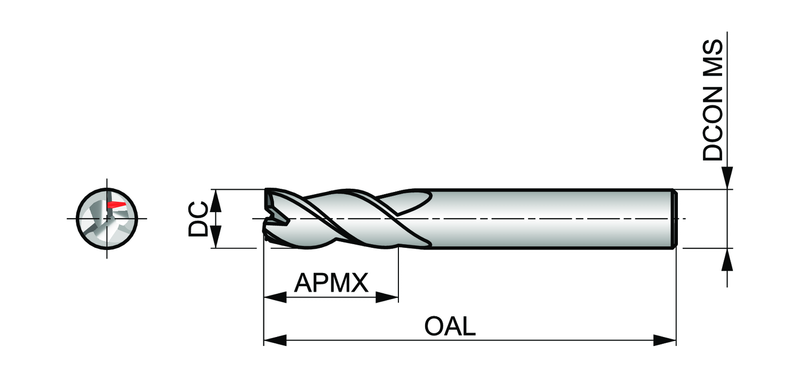

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030292
EAN7320760950142
File Type Download
S65014.0 — 3D Model STP Download
S65014.0 — 2D Model DXF Download
S65014.0 — Line Drawing PDF Download
