UGC DOR8030293
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$201.91 CAD - $201.91 CAD
$201.91 CAD
$201.91 CAD - $201.91 CAD
$201.91 CAD

Vendu en lots de : 1

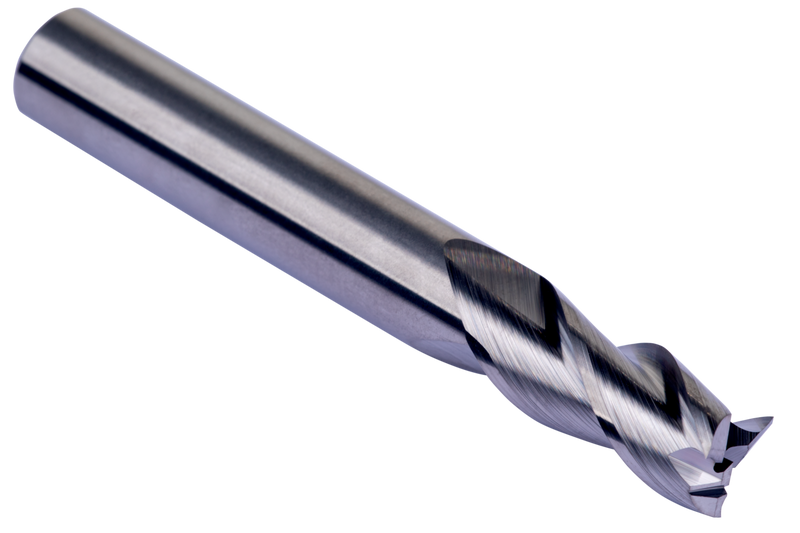

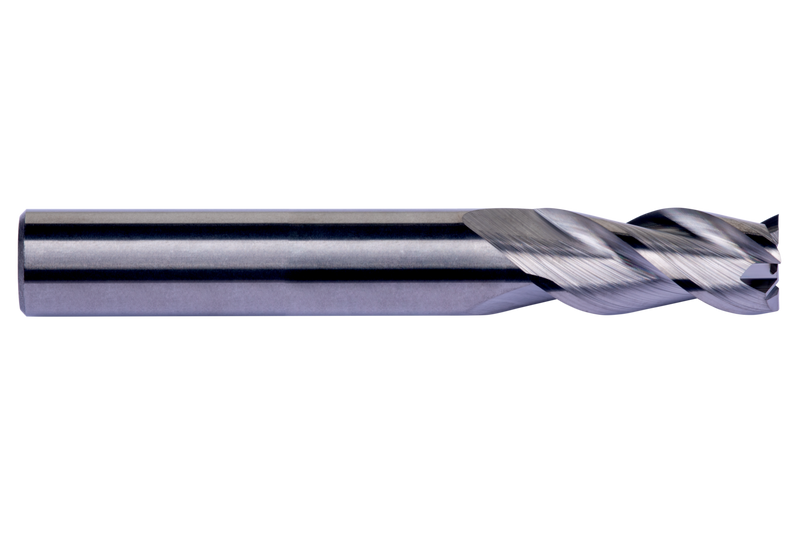

Fraise en bout série courte 3 dents, diamètre 16mm avec 32mm de longueur de coupe et 90mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec finition brillante, hélice de 40° à pas différentiel et angle de dépouille de 13° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65016.0
GradeLumineux
Product Number8030293
Product FamilyS650
Insert Geometry

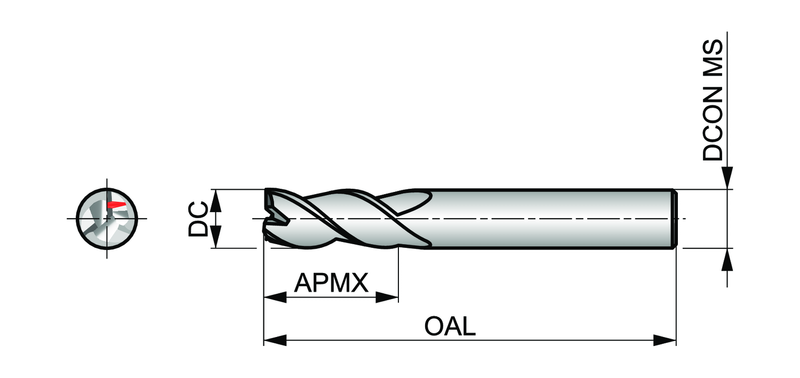

Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

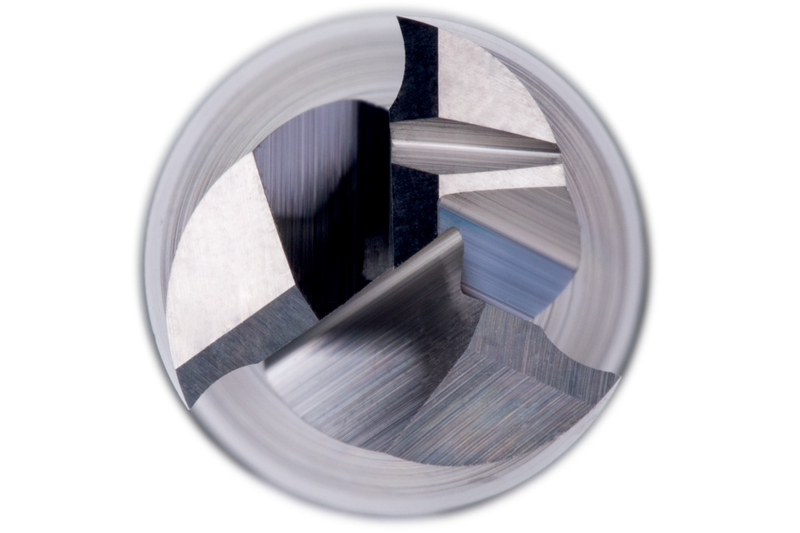

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030293
EAN7320760950159
File Type Download
S65016.0 — 3D Model STP Download
S65016.0 — 2D Model DXF Download
S65016.0 — Line Drawing PDF Download
