UGC DOR8030294
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$284.37 CAD - $284.37 CAD
$284.37 CAD
$284.37 CAD - $284.37 CAD
$284.37 CAD

Vendu en lots de : 1

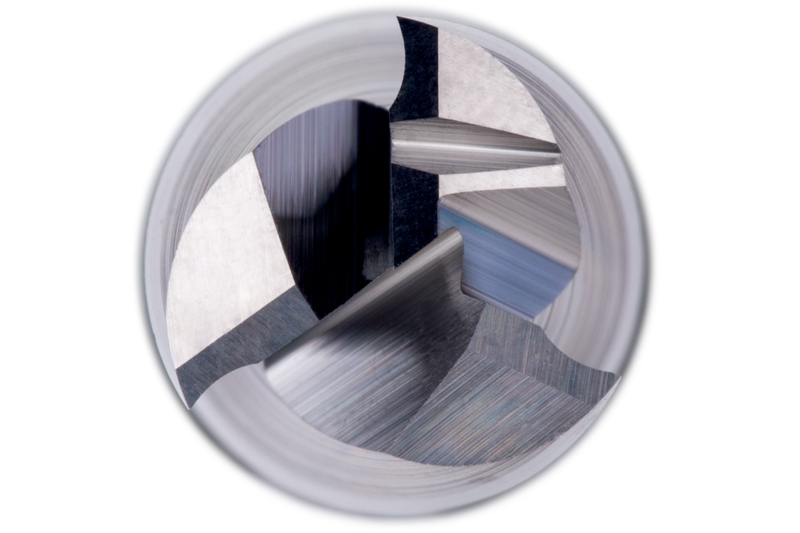

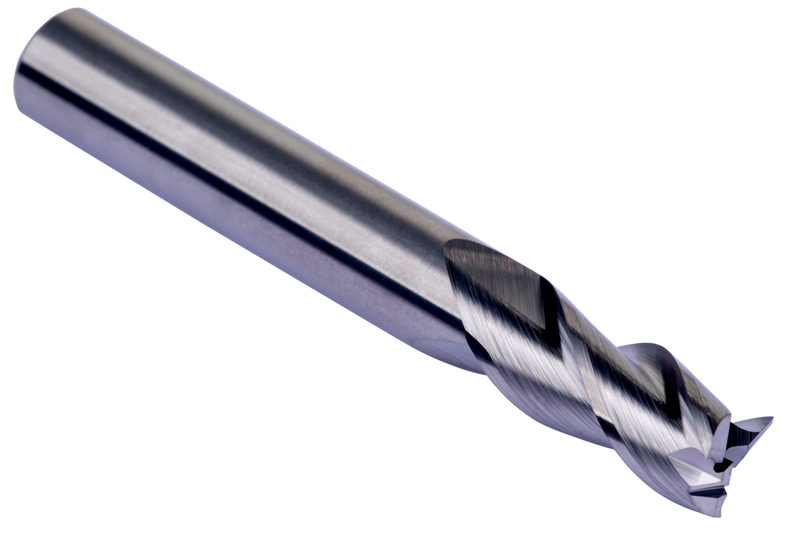

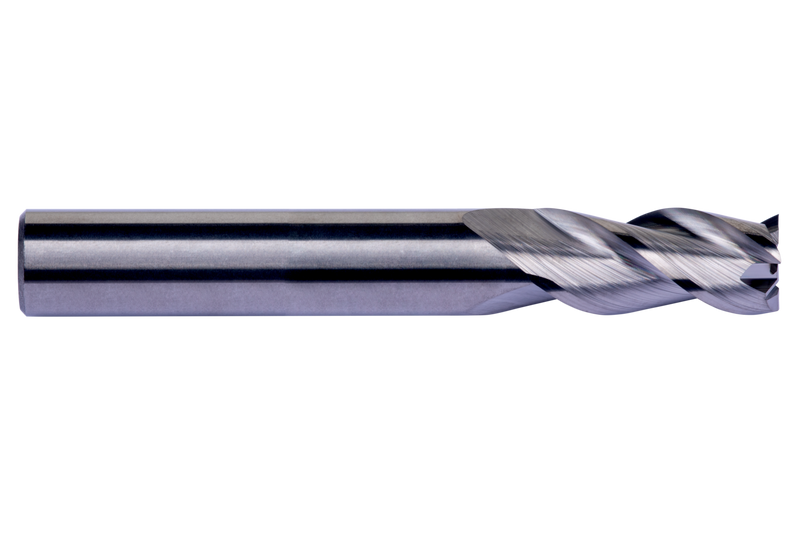

Fraise en bout série courte 3 goujures, diamètre 20mm avec une longueur de coupe de 38mm et une longueur totale de 100mm, selon la norme DORMER avec un attachement cylindrique de 20mm, carbure monobloc avec finition brillante, hélice à 40° et angle de dépouille de 13° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65020.0
GradeLumineux
Product Number8030294
Product FamilyS650
Insert Geometry

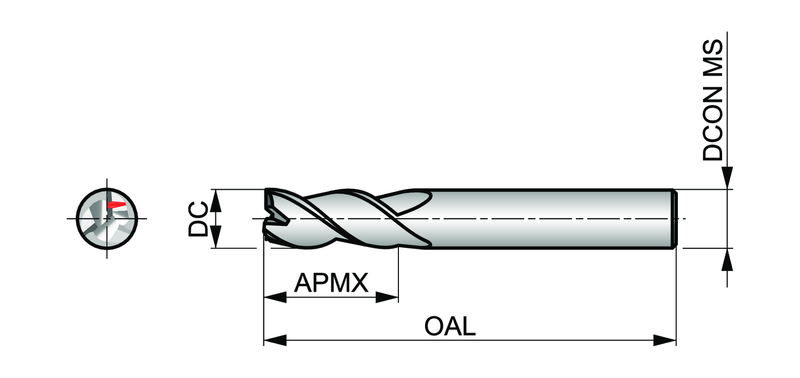

Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardNorme de travail
Reference Numbers
EDP Number8030294
EAN7320760950166
File Type Download
S65020.0 — 3D Model STP Download
S65020.0 — 2D Model DXF Download
S65020.0 — Line Drawing PDF Download
