UGC DOR8030295
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.39 CAD - $53.39 CAD
$53.39 CAD
$53.39 CAD - $53.39 CAD
$53.39 CAD

Vendu en lots de : 1

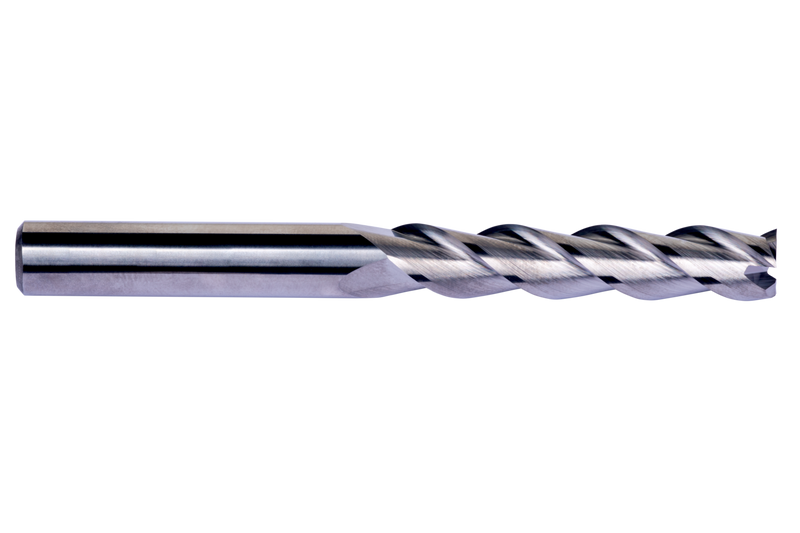

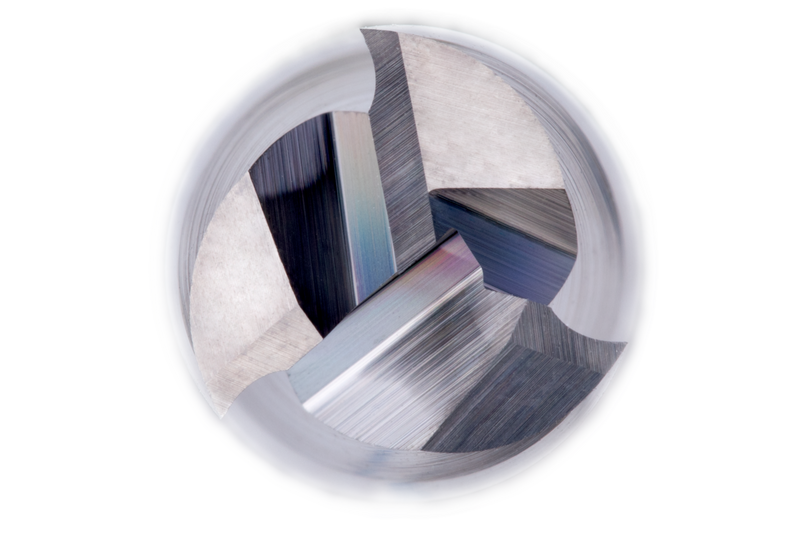

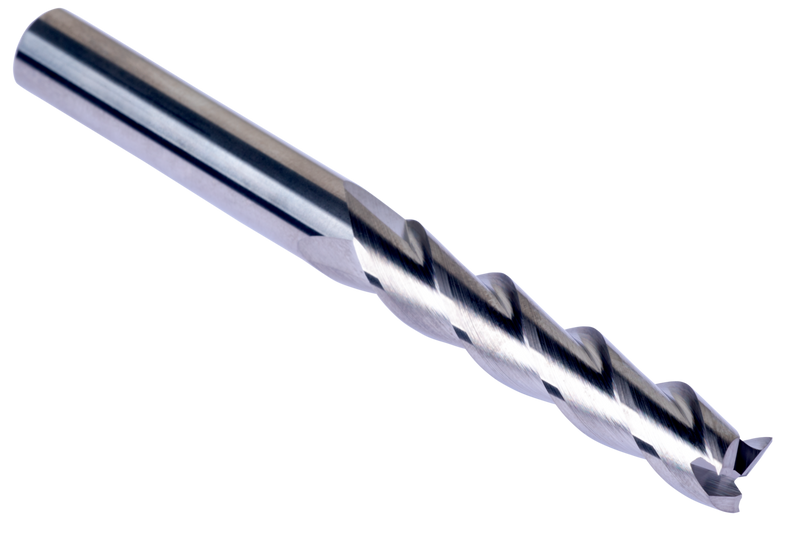

Fraise en bout série extra longue à 3 dents, diamètre 3mm avec une longueur de coupe de 19mm et une longueur totale de 60mm, selon la norme DORMER avec une queue cylindrique de 3mm, en carbure monobloc avec une finition brillante, hélice à 40° et angle de dépouille de 13° pour le fraisage d'épaulements dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6143.0XD3
GradeLumineux
Product Number8030295
Product FamilyS614
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

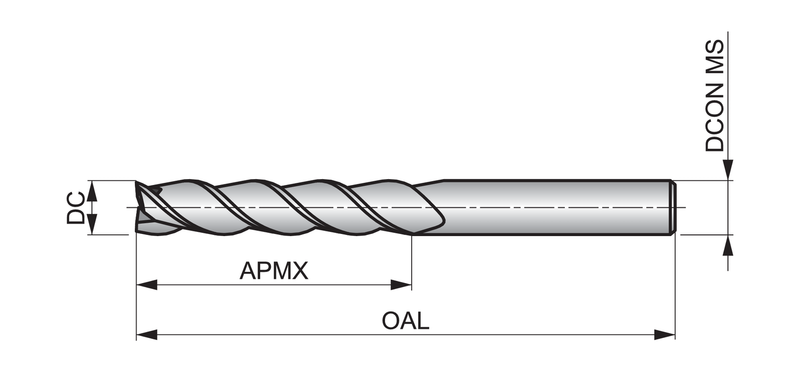

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030295
EAN7320760950173
File Type Download
S6143.0XD3 — 3D Model STP Download
S6143.0XD3 — 2D Model DXF Download
S6143.0XD3 — Line Drawing PDF Download
