UGC DOR8030296
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.39 CAD - $53.39 CAD
$53.39 CAD
$53.39 CAD - $53.39 CAD
$53.39 CAD

Vendu en lots de : 1

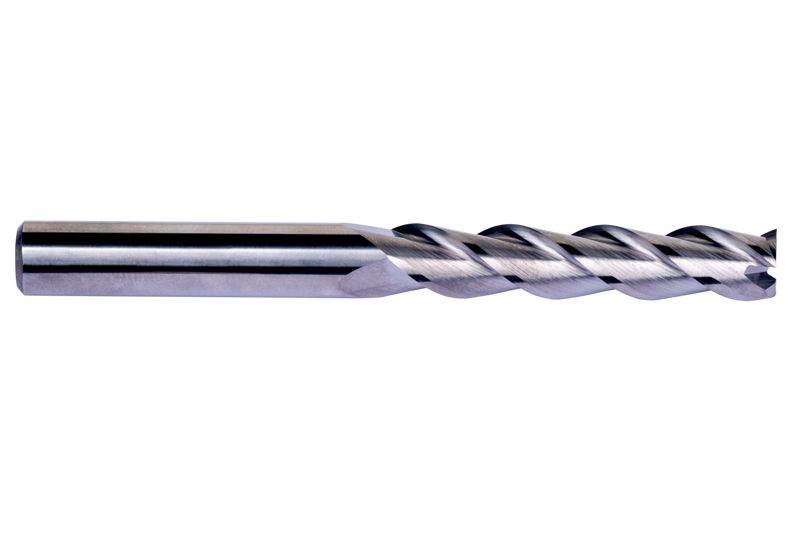

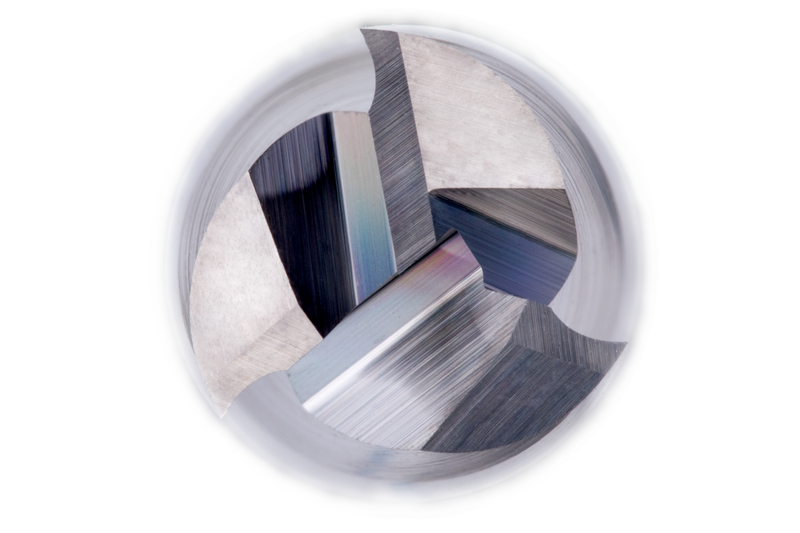

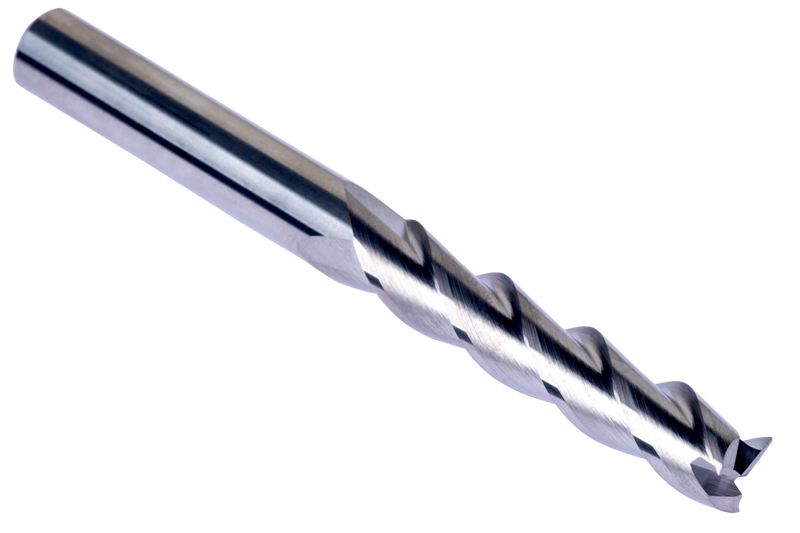

Fraise en bout série extra-longue à 3 dents, diamètre 3 mm avec une longueur de coupe de 19 mm et une longueur totale de 75 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de dépouille de 13° pour le fraisage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6143.0XD6
GradeLumineux
Product Number8030296
Product FamilyS614

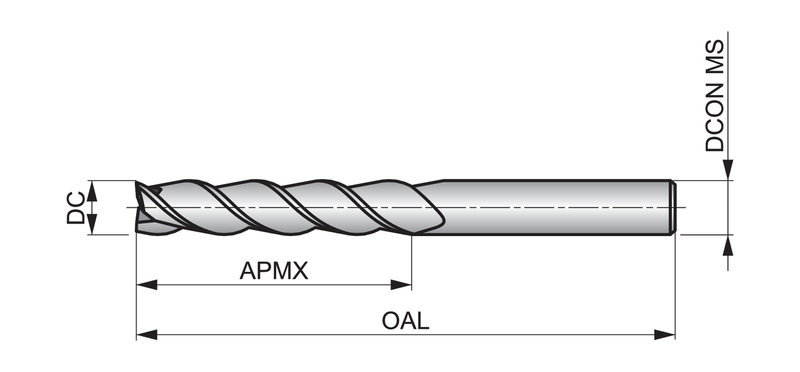

Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030296
EAN7320760950180
File Type Download
S6143.0XD6 — 3D Model STP Download
S6143.0XD6 — 2D Model DXF Download
S6143.0XD6 — Line Drawing PDF Download
