S6144.0XD4
S6144.0XD4
S6144.0XD4
S6144.0XD4

S6144.0XD4

UGC DOR8030297
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 CAD - $58.14 CAD
$58.14 CAD
$58.14 CAD - $58.14 CAD
$58.14 CAD

Vendu en lots de : 1

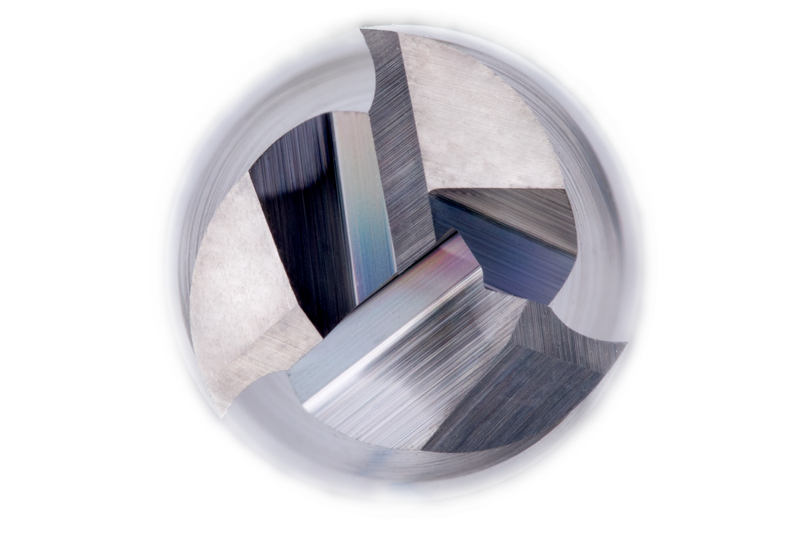

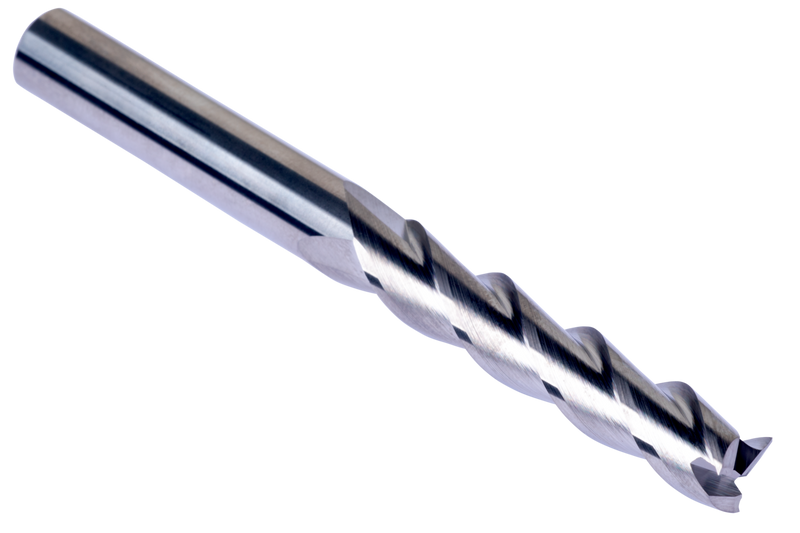

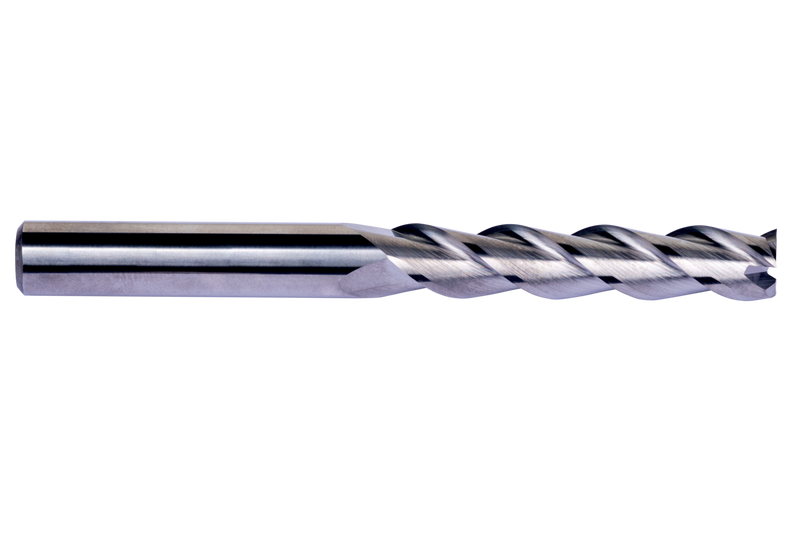

Fraise en bout série extra longue à 3 dents, diamètre 4mm, longueur de coupe 19mm et longueur totale 60mm, selon la norme DORMER avec une queue cylindrique de 4mm, carbure monobloc finition brillante, hélice à 40° et angle de dépouille de 13° pour le fraisage d'épaulements dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6144.0XD4
GradeLumineux
Product Number8030297
Product FamilyS614

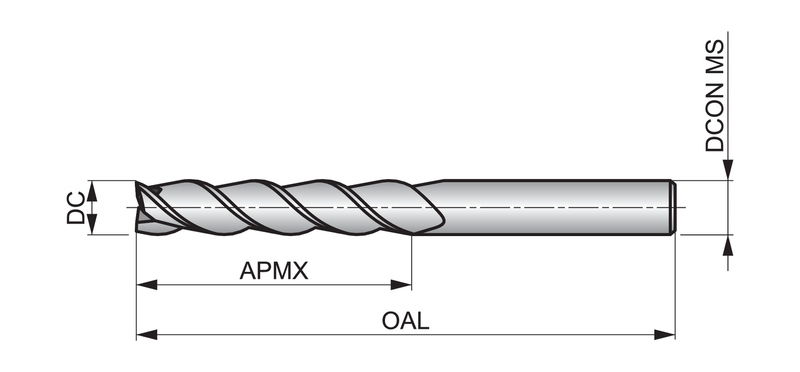

Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030297
EAN7320760950197
File Type Download
S6144.0XD4 — 3D Model STP Download
S6144.0XD4 — 2D Model DXF Download
S6144.0XD4 — Line Drawing PDF Download
