UGC DOR8030300
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.20 CAD - $59.20 CAD
$59.20 CAD
$59.20 CAD - $59.20 CAD
$59.20 CAD

Vendu en lots de : 1

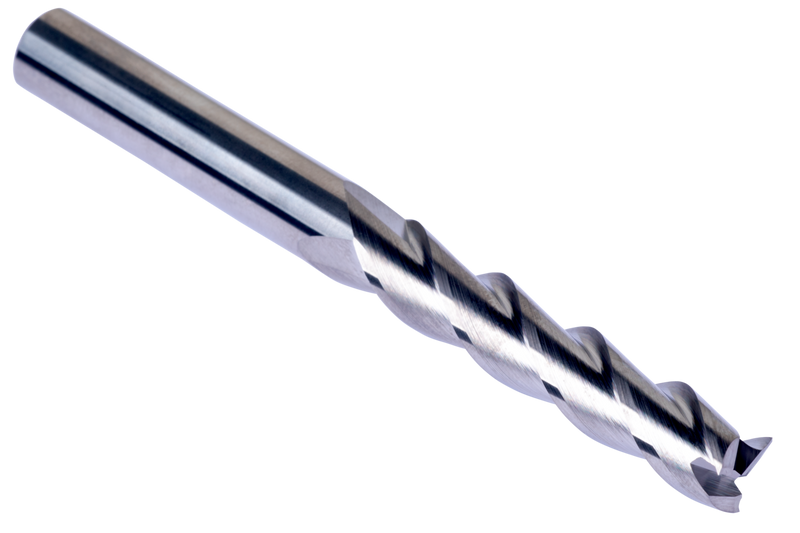

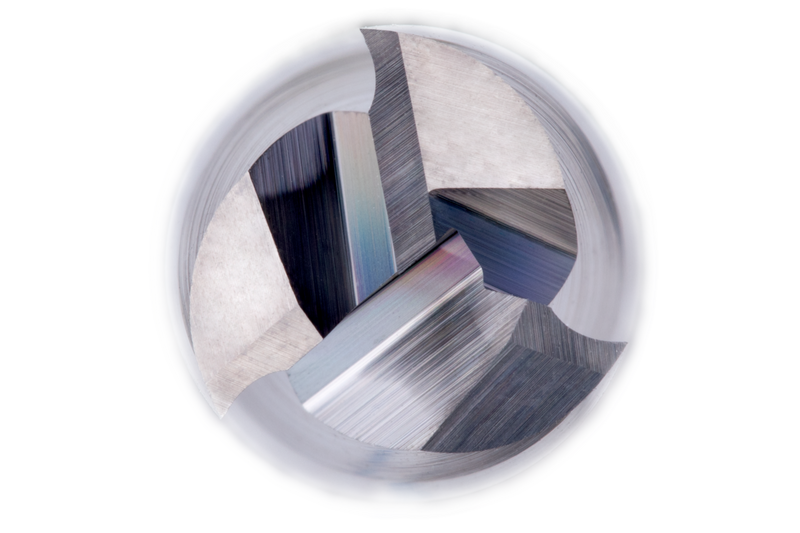

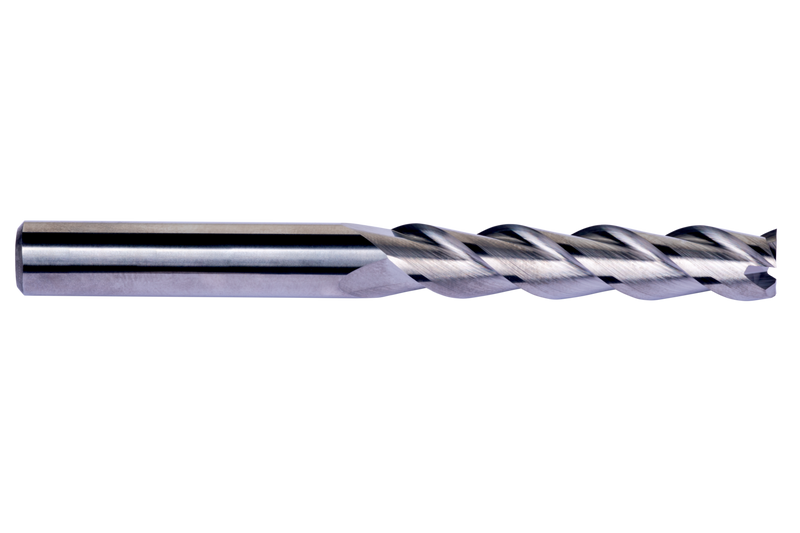

Fraise en bout série extra longue à 3 dents, diamètre 6mm avec une longueur de coupe de 31mm et une longueur totale de 75mm, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de dépouille de 13° pour le fraisage d'épaulements dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6146.0
GradeLumineux
Product Number8030300
Product FamilyS614

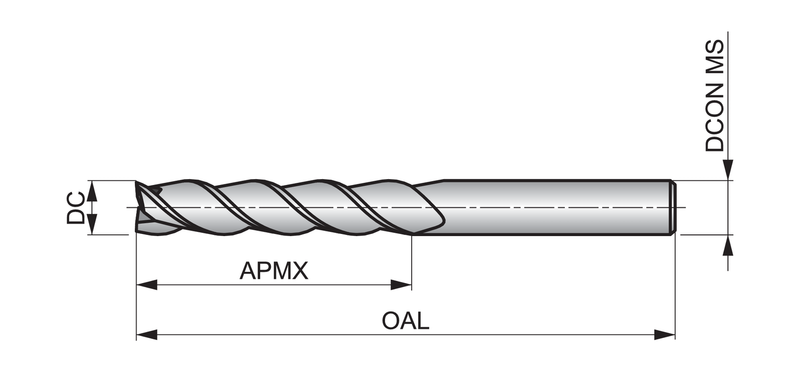

Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030300
EAN7320760950227
File Type Download
S6146.0 — 3D Model STP Download
S6146.0 — 2D Model DXF Download
S6146.0 — Line Drawing PDF Download
