UGC DOR8030301
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.93 CAD - $81.93 CAD
$81.93 CAD
$81.93 CAD - $81.93 CAD
$81.93 CAD

Vendu en lots de : 1

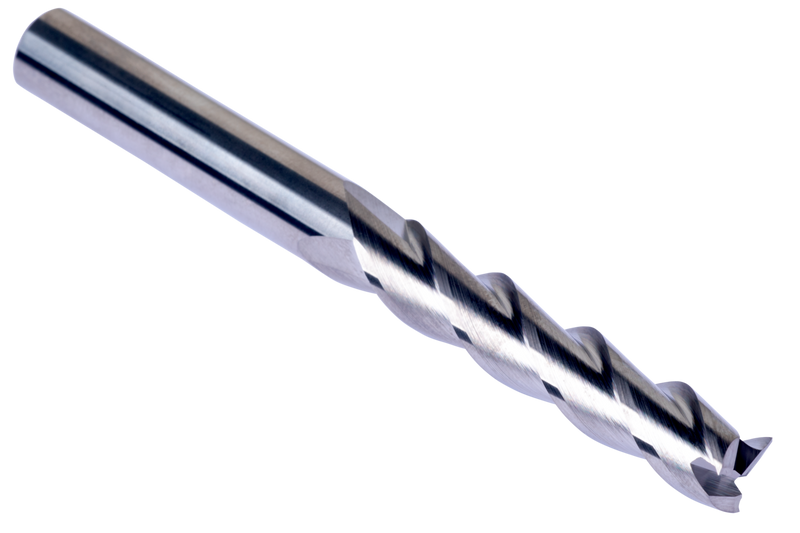

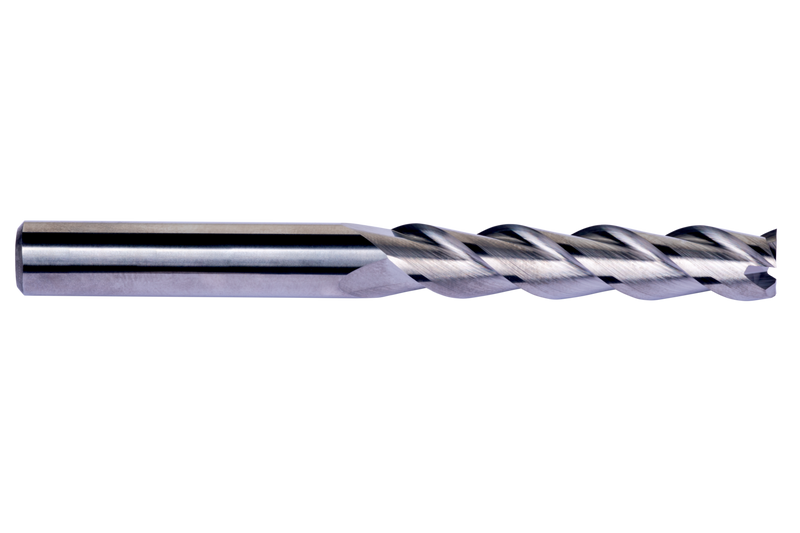

Fraises 3 dents série extra longue, diamètre 8mm avec une longueur de coupe de 41mm et une longueur totale de 100mm, selon le standard DORMER avec un diamètre de queue cylindrique de 8mm, carbure monobloc finition brillante, hélice 40° et angle de dépouille 13° pour le fraisage d'épaulement dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6148.0
GradeLumineux
Product Number8030301
Product FamilyS614
Insert Geometry

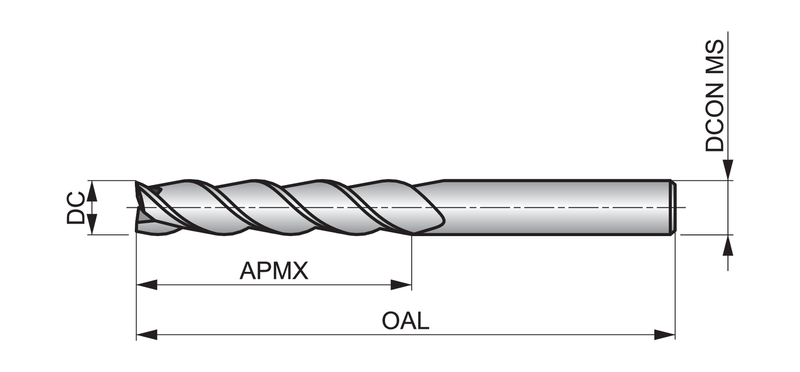

Depth of Cut Max — in (APMX)1.6142"
Depth of Cut Max — mm (APMX)41.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm

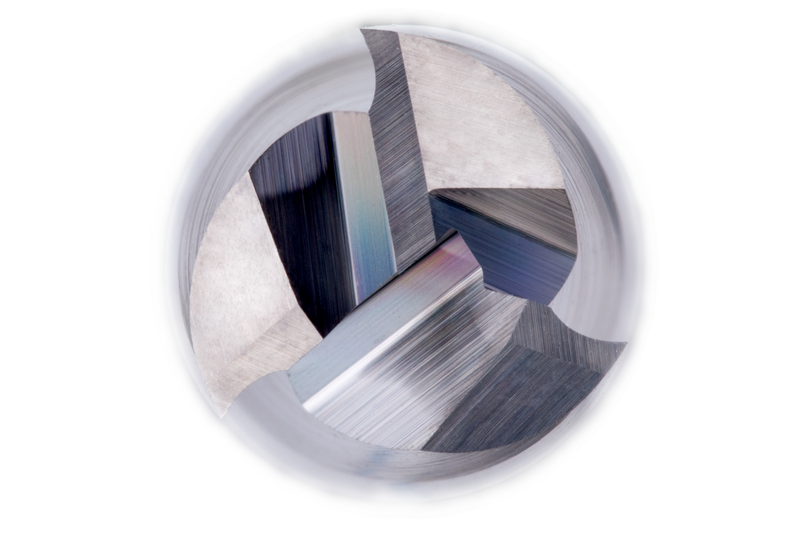

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030301
EAN7320760950234
File Type Download
S6148.0 — 3D Model STP Download
S6148.0 — 2D Model DXF Download
S6148.0 — Line Drawing PDF Download
