UGC DOR8030302
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.41 CAD - $109.41 CAD
$109.41 CAD
$109.41 CAD - $109.41 CAD
$109.41 CAD

Vendu en lots de : 1

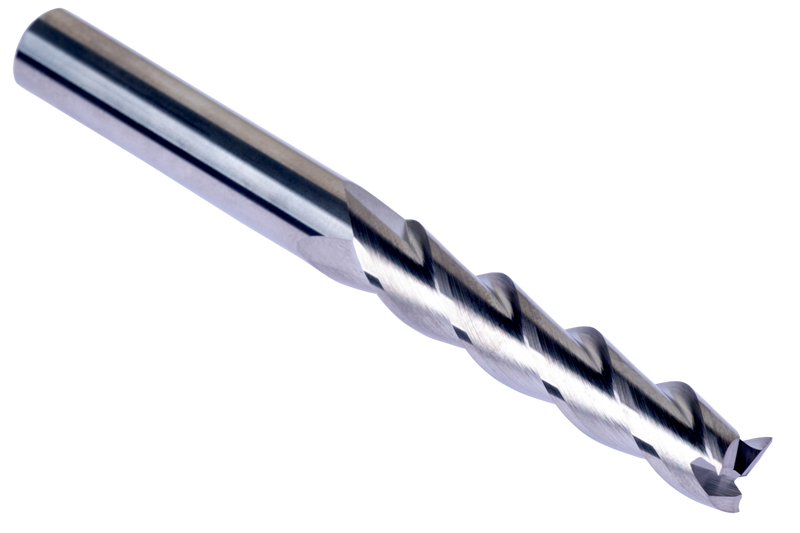

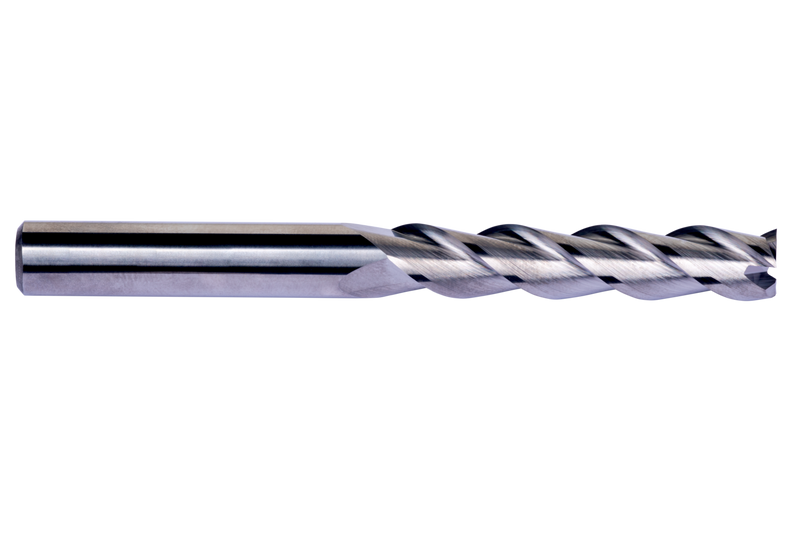

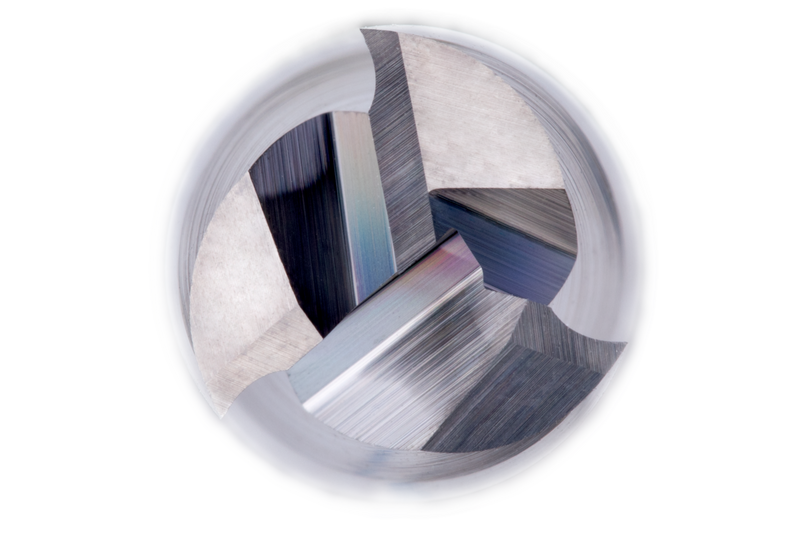

Fraise en bout série extra longue à 3 dents, diamètre 10mm avec une longueur de coupe de 50mm et une longueur totale de 100mm, selon la norme DORMER avec un diamètre de queue cylindrique de 10mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de dépouille de 13° pour le surfaçage d'épaulements dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61410.0
GradeLumineux
Product Number8030302
Product FamilyS614
Insert Geometry

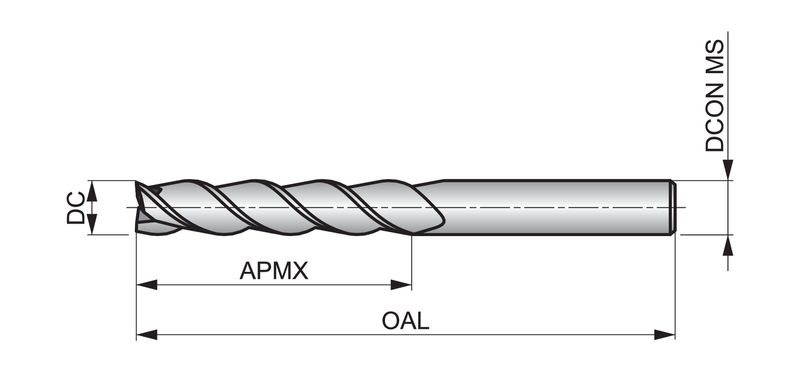

Depth of Cut Max — in (APMX)1.9685"
Depth of Cut Max — mm (APMX)50.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030302
EAN7320760950241
File Type Download
S61410.0 — 3D Model STP Download
S61410.0 — 2D Model DXF Download
S61410.0 — Line Drawing PDF Download
