UGC DOR8030303
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.70 CAD - $151.70 CAD
$151.70 CAD
$151.70 CAD - $151.70 CAD
$151.70 CAD

Vendu en lots de : 1

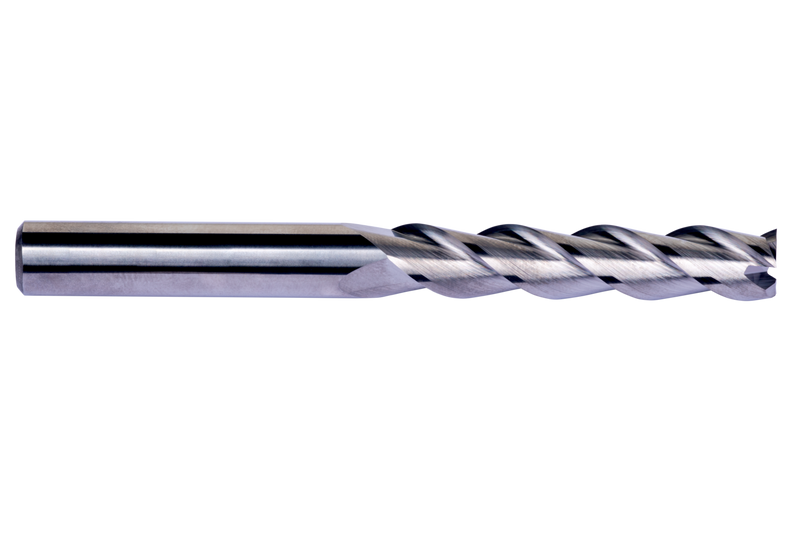

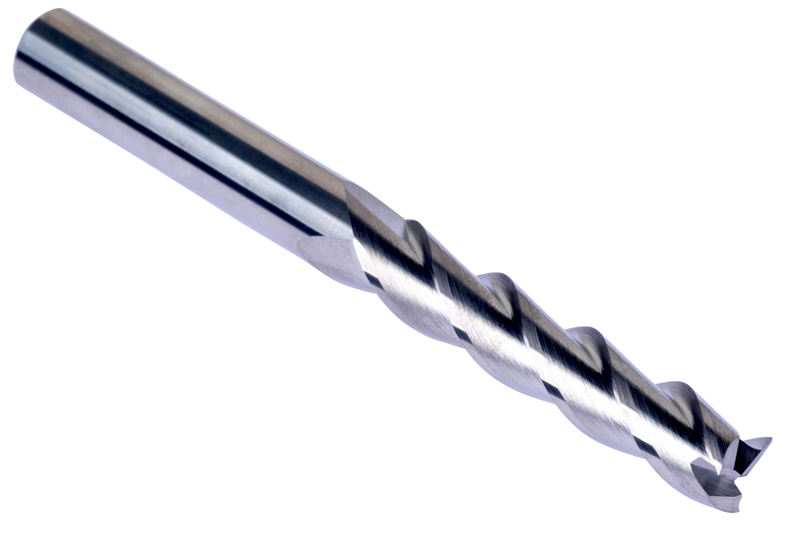

Fraise en bout série extra longue à 3 dents, diamètre 12mm avec une longueur de coupe de 50mm et une longueur totale de 100mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc finition brillante, hélice 40° et angle de dépouille de 13° pour le fraisage d'épaulement dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61412.0
GradeLumineux
Product Number8030303
Product FamilyS614
Insert Geometry

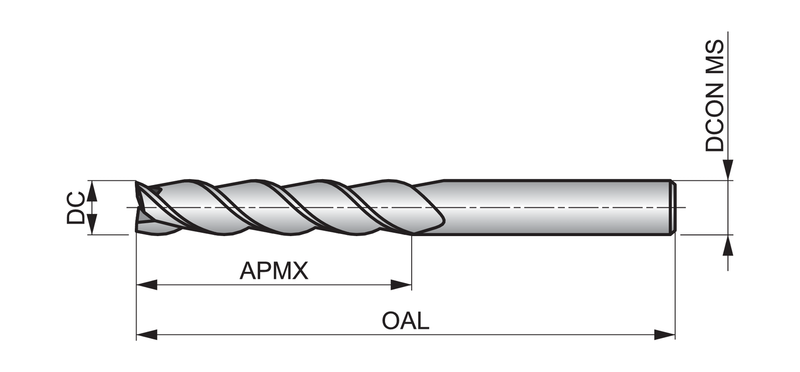

Depth of Cut Max — in (APMX)1.9685"
Depth of Cut Max — mm (APMX)50.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

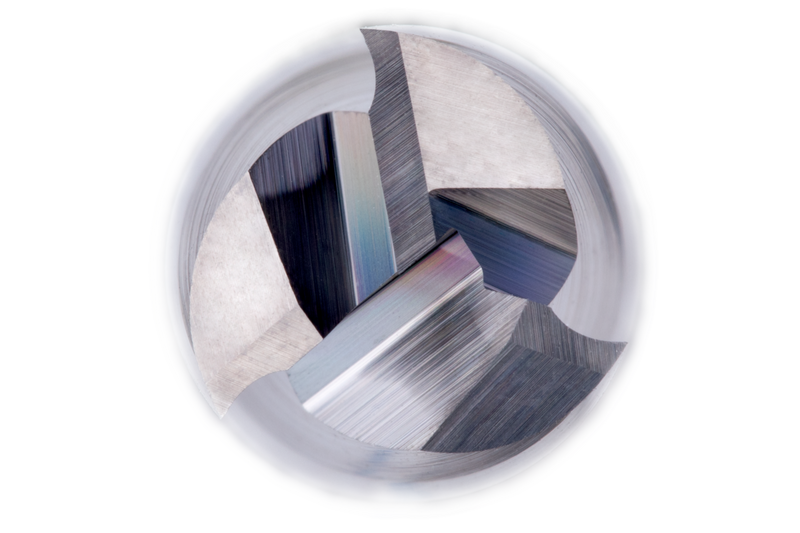

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030303
EAN7320760950258
File Type Download
S61412.0 — 3D Model STP Download
S61412.0 — 2D Model DXF Download
S61412.0 — Line Drawing PDF Download
