UGC DOR8030304
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$189.76 CAD - $189.76 CAD
$189.76 CAD
$189.76 CAD - $189.76 CAD
$189.76 CAD

Vendu en lots de : 1

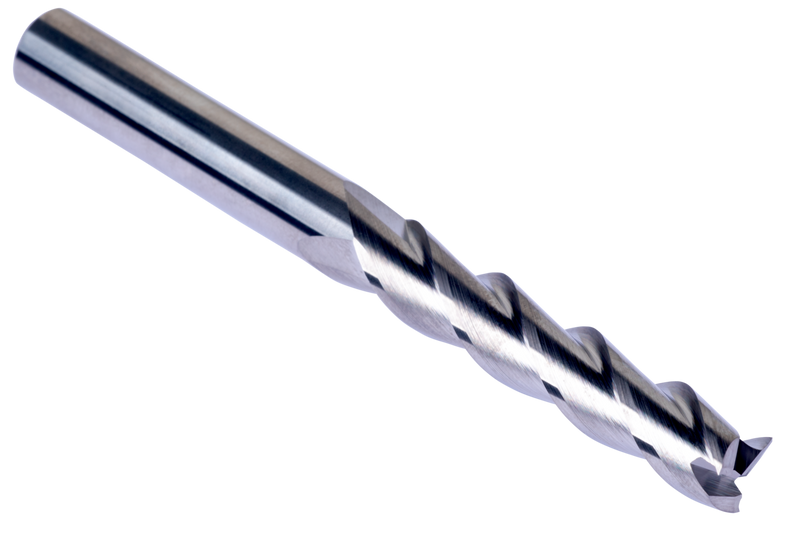

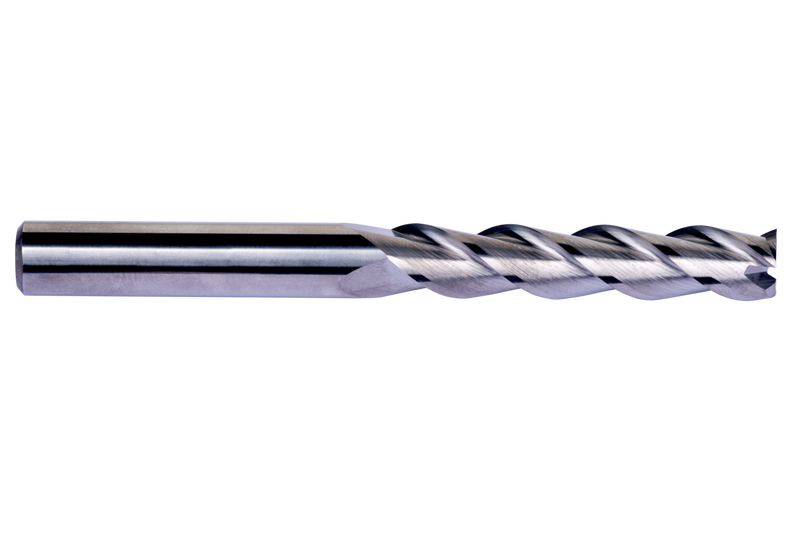

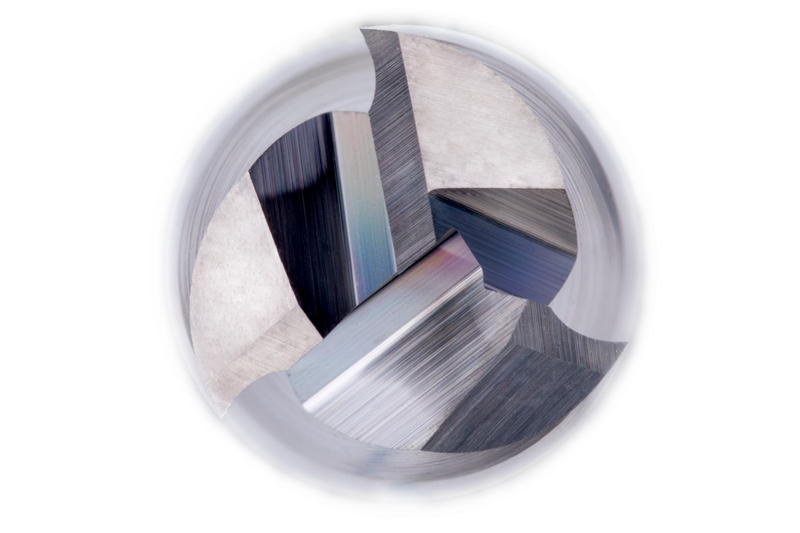

Fraise en bout série extra-longue 3 dents, diamètre 14mm avec 57mm de longueur de coupe et 125mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 14mm, carbure monobloc avec finition brillante, hélice à 40° et angle de dépouille de 13° pour le fraisage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61414.0
GradeLumineux
Product Number8030304
Product FamilyS614

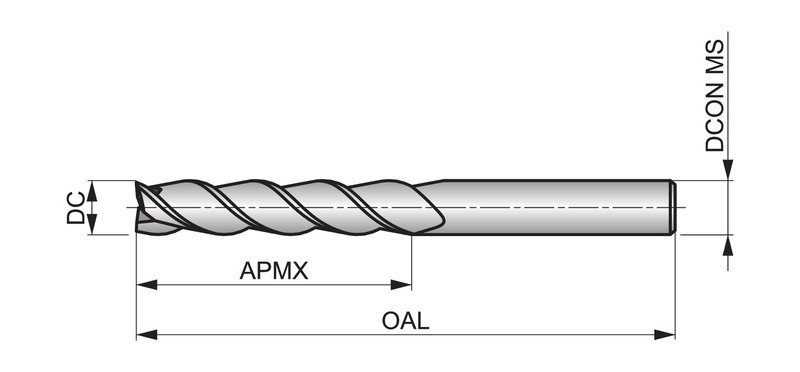

Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030304
EAN7320760950265
File Type Download
S61414.0 — 3D Model STP Download
S61414.0 — 2D Model DXF Download
S61414.0 — Line Drawing PDF Download
