UGC DOR8030305
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$247.37 CAD - $247.37 CAD
$247.37 CAD
$247.37 CAD - $247.37 CAD
$247.37 CAD

Vendu en lots de : 1

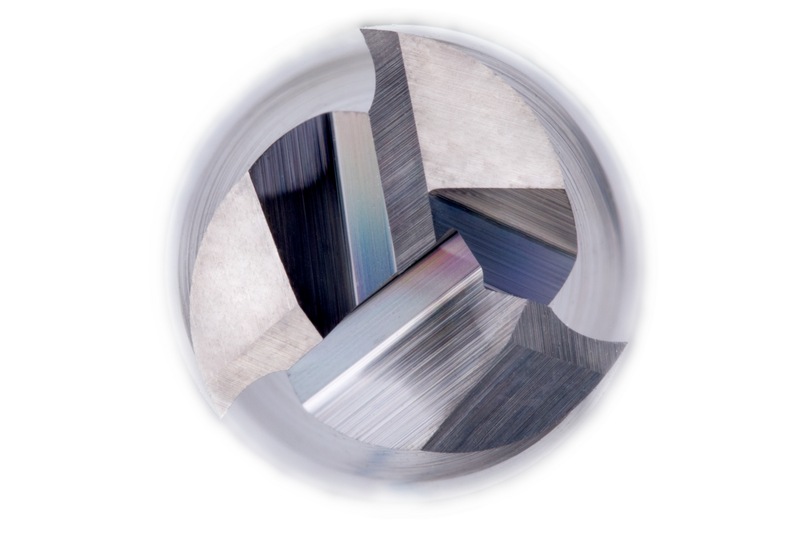

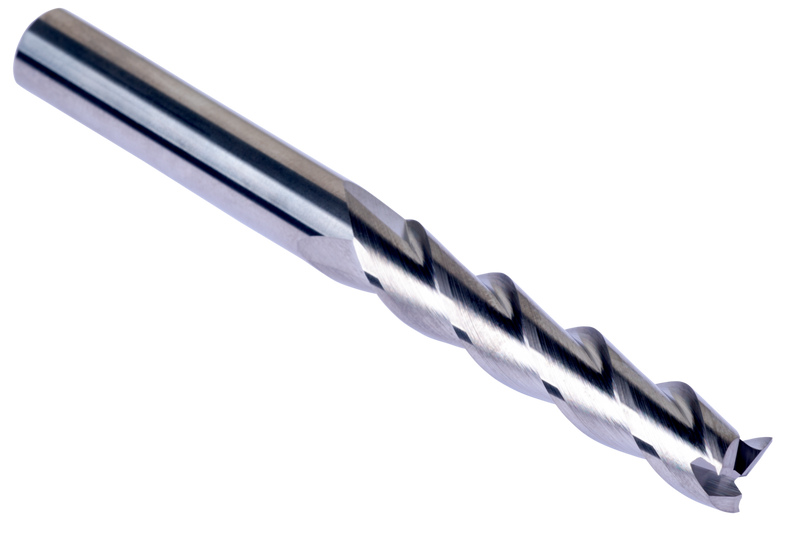

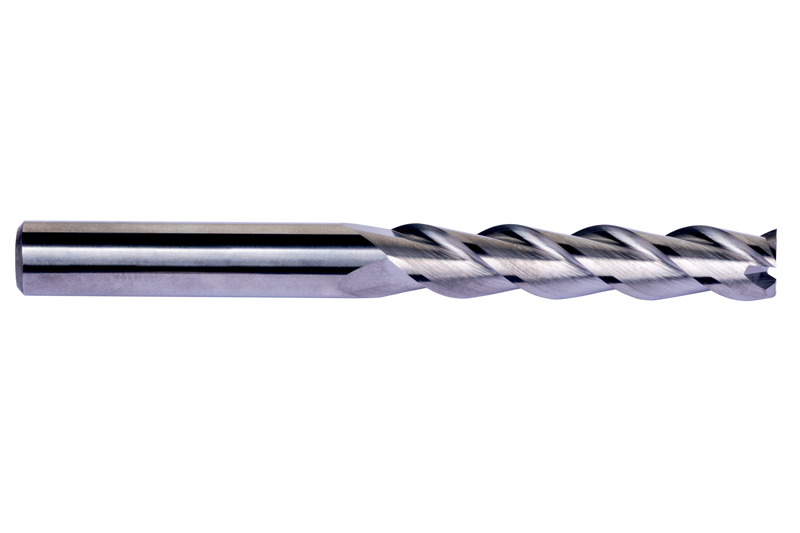

Fraises 3 dents de la série extra-longue, diamètre 16mm, longueur de coupe 57mm et longueur totale 125mm, selon la norme DORMER avec une queue cylindrique de 16mm, en carbure monobloc finition brillante, hélice 40° et angle de dépouille 13° pour le fraisage d'épaulements dans les métaux non-ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61416.0
GradeLumineux
Product Number8030305
Product FamilyS614
Insert Geometry

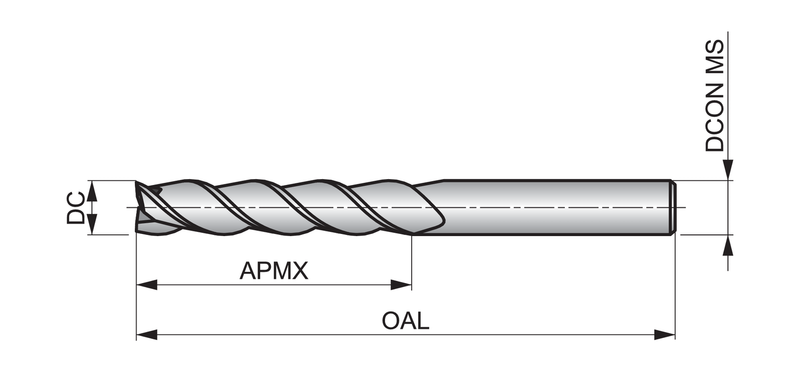

Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030305
EAN7320760950272
File Type Download
S61416.0 — 3D Model STP Download
S61416.0 — 2D Model DXF Download
S61416.0 — Line Drawing PDF Download
