UGC DOR8030306
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

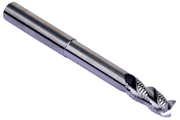

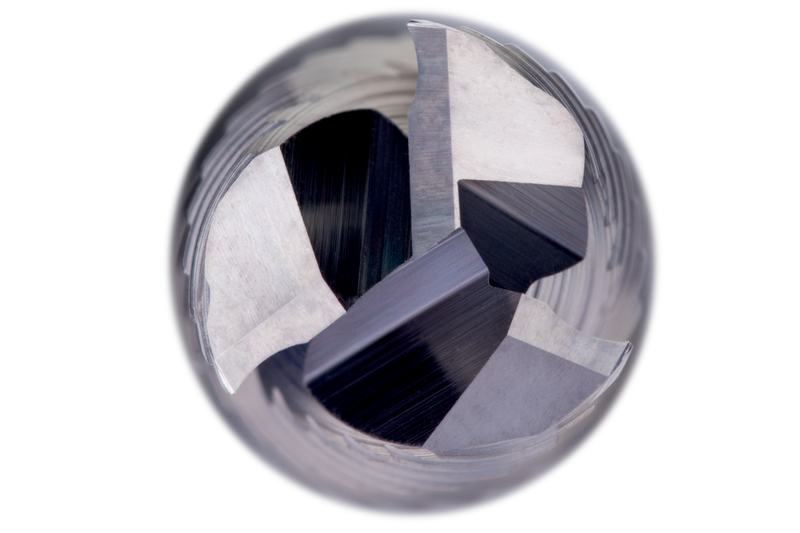

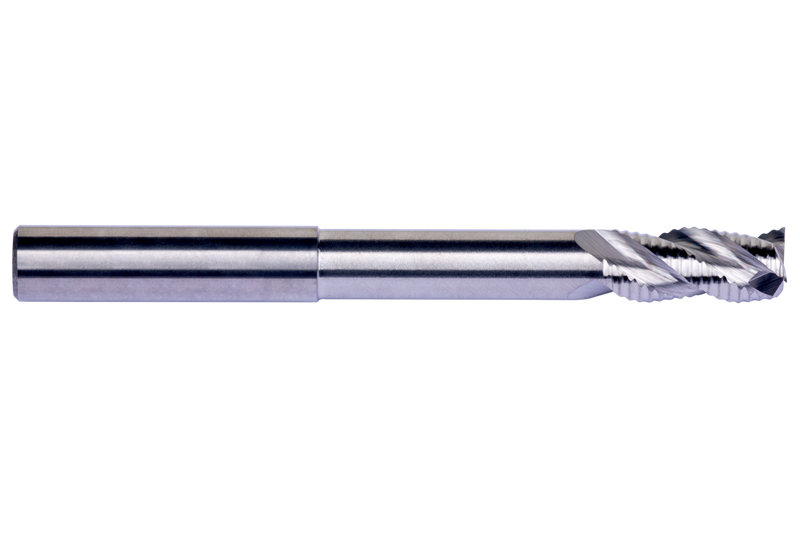

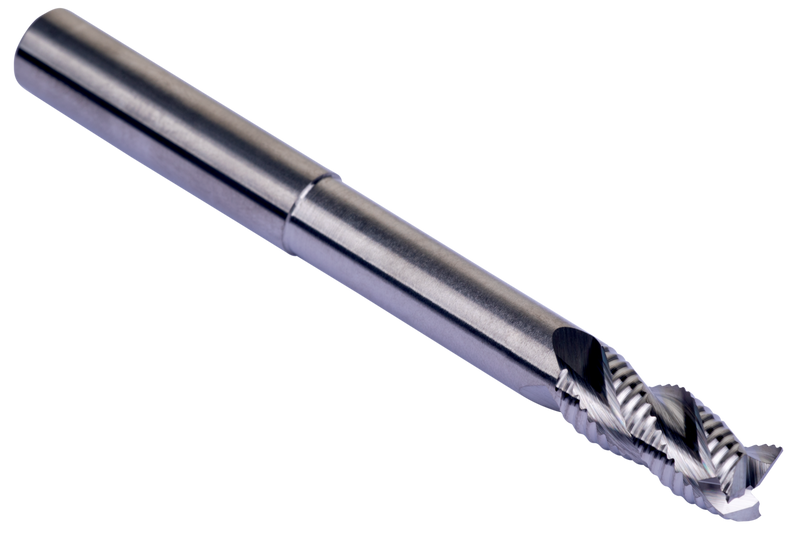

Fraise trois tailles courte à dégrossir, diamètre 6 mm, 13 mm de longueur de coupe, 75 mm de longueur totale, 40 mm de dégagement avec dépouille et rayons de coin de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc, finition brillante, hélice de 40° et angle de coupe de 15° pour le fraisage en bout, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6546.0
GradeLumineux
Product Number8030306
Product FamilyS654
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

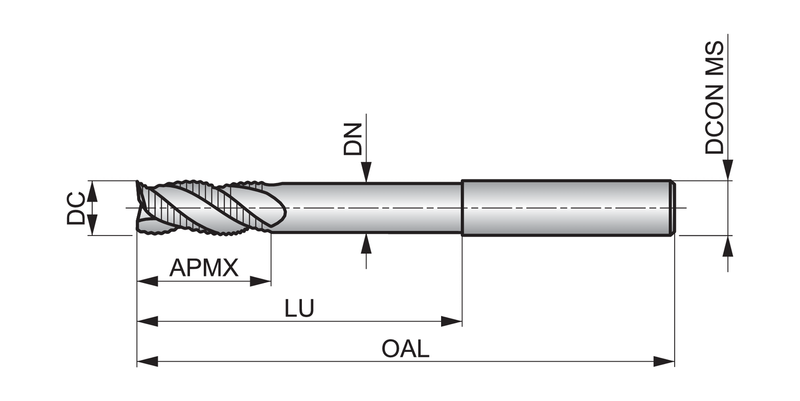

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030306
EAN7320760950289
File Type Download
S6546.0 — 3D Model STP Download
S6546.0 — 2D Model DXF Download
S6546.0 — Line Drawing PDF Download
