UGC DOR8030307
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.53 CAD - $111.53 CAD
$111.53 CAD
$111.53 CAD - $111.53 CAD
$111.53 CAD

Vendu en lots de : 1

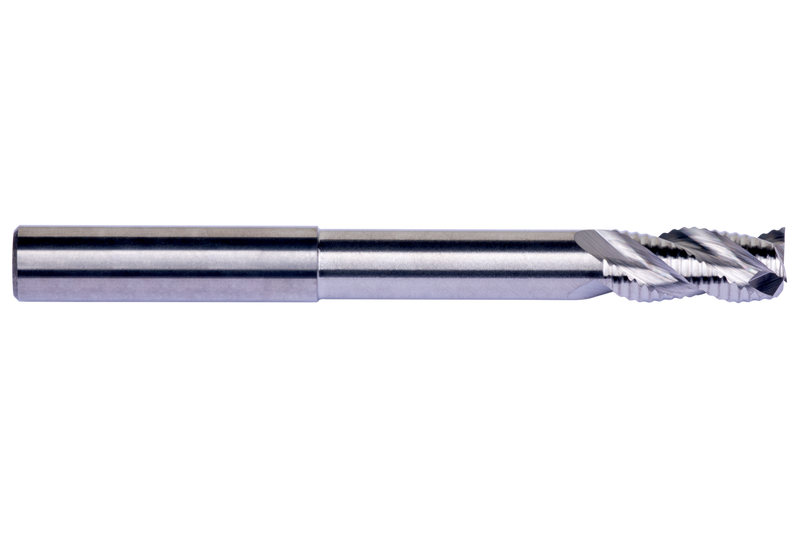

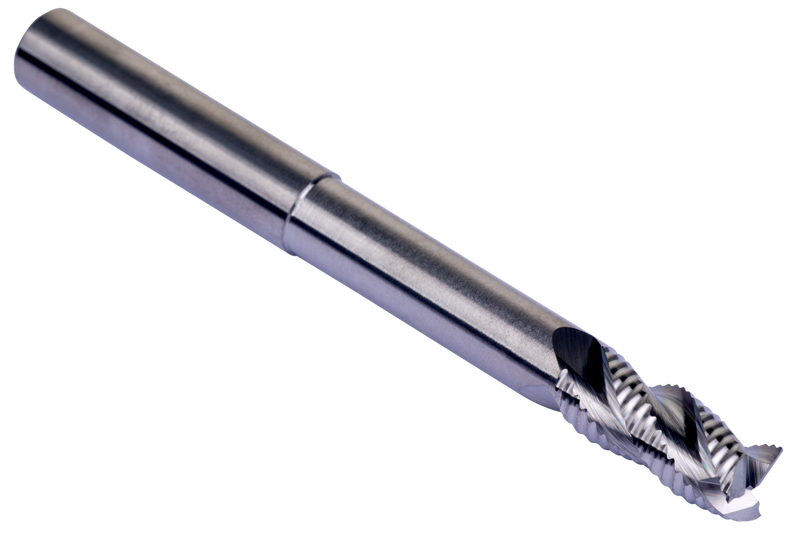

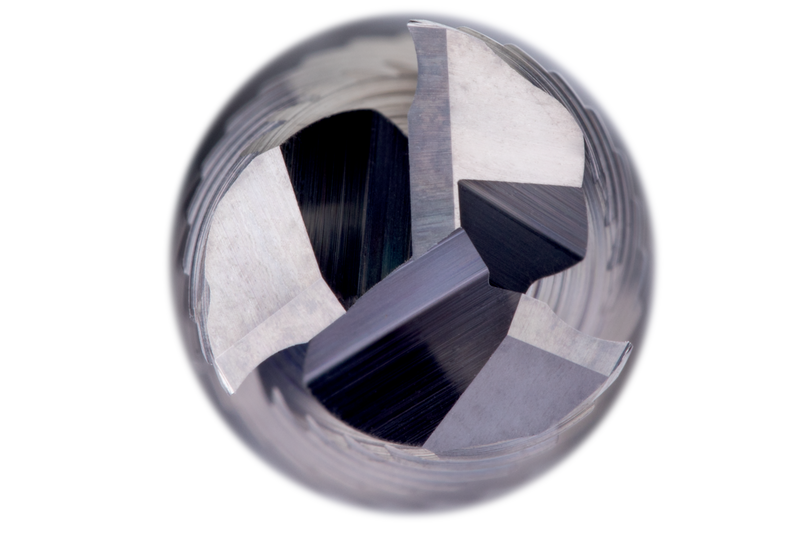

Fraise trois tailles d'ébauche série courte, diamètre 8mm avec une longueur de coupe de 20mm, longueur totale de 75mm, dégagement de 40mm avec réduction de col et rayons d'angle de 0,1mm, selon la norme DORMER avec une queue cylindrique de 8mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de coupe de 15° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6548.0
GradeLumineux
Product Number8030307
Product FamilyS654
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

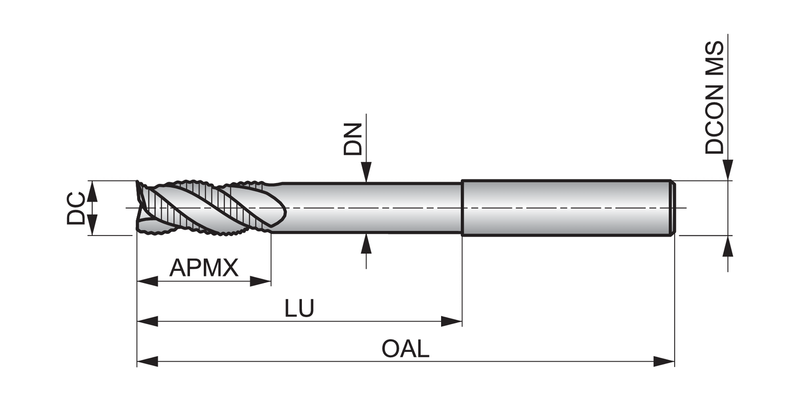

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030307
EAN7320760950296
File Type Download
S6548.0 — 3D Model STP Download
S6548.0 — 2D Model DXF Download
S6548.0 — Line Drawing PDF Download
