UGC DOR8030308
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$147.47 CAD - $147.47 CAD
$147.47 CAD
$147.47 CAD - $147.47 CAD
$147.47 CAD

Vendu en lots de : 1

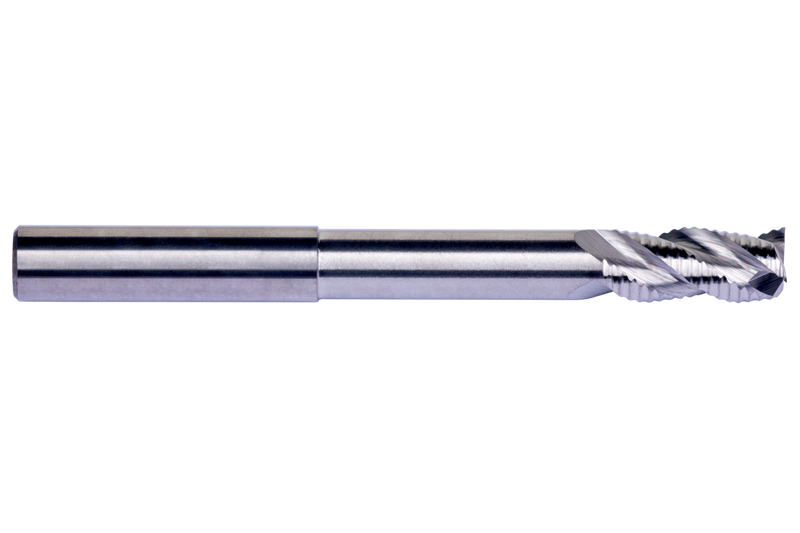

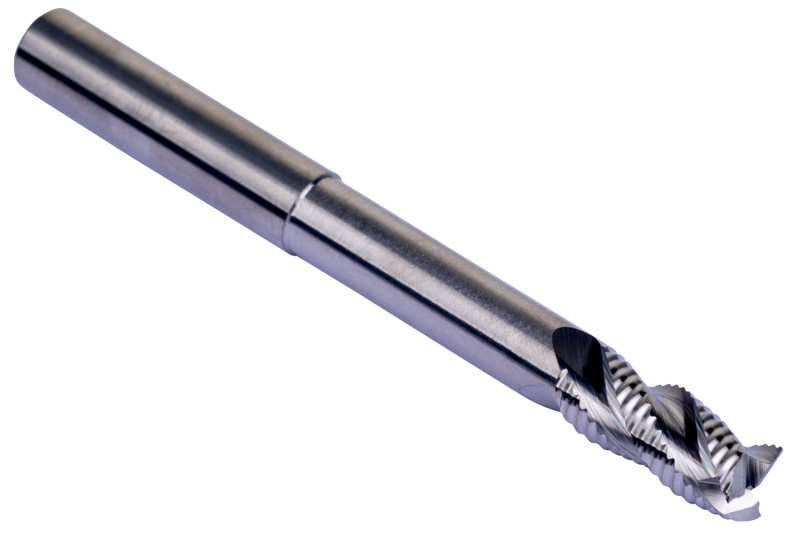

Fraise trois tailles d'ébauche série courte, diamètre 10 mm avec une longueur de coupe de 22 mm, une longueur totale de 100 mm, une portée de 60 mm avec dégagement de col et des rayons d'angle de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de coupe de 15° pour le surfaçage en bout, l'usinage de rainures et l'usinage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65410.0
GradeLumineux
Product Number8030308
Product FamilyS654
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

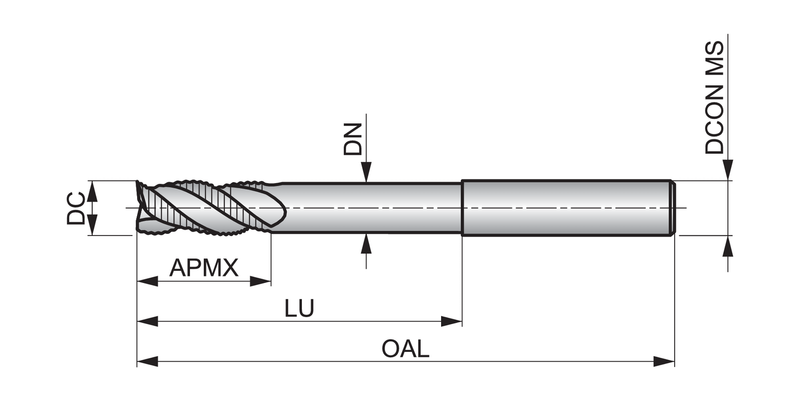

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

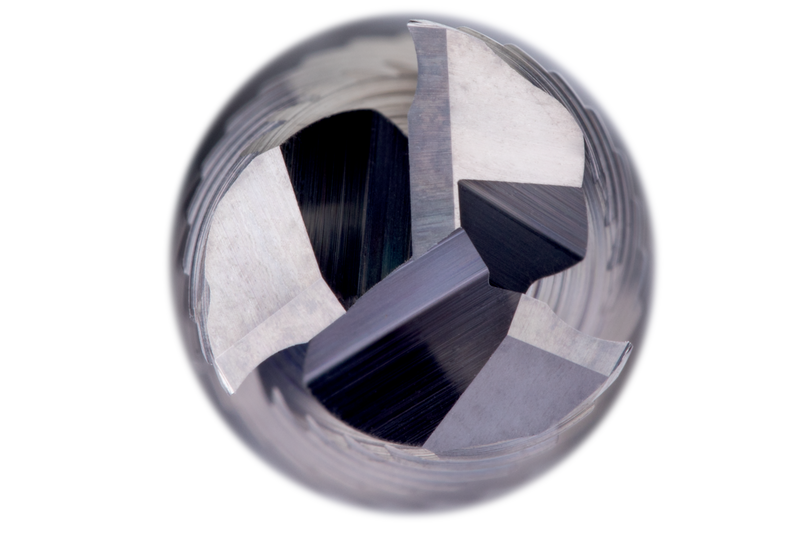

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030308
EAN7320760950302
File Type Download
S65410.0 — 3D Model STP Download
S65410.0 — 2D Model DXF Download
S65410.0 — Line Drawing PDF Download
