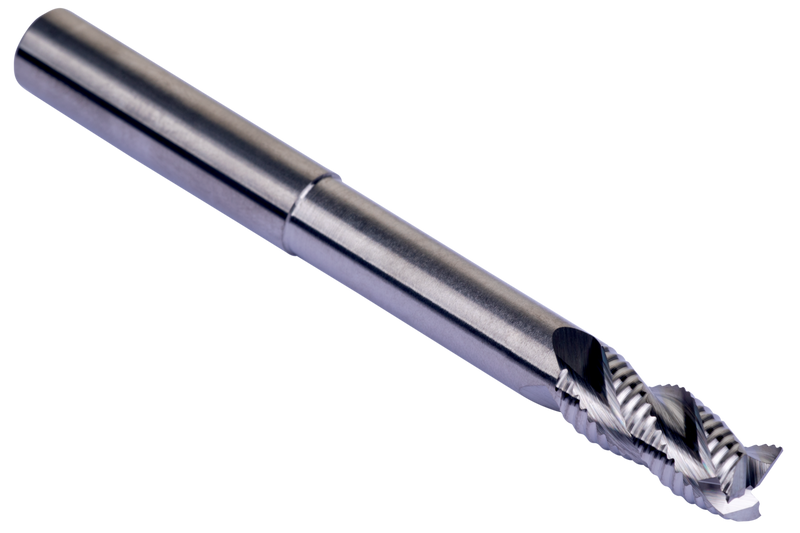

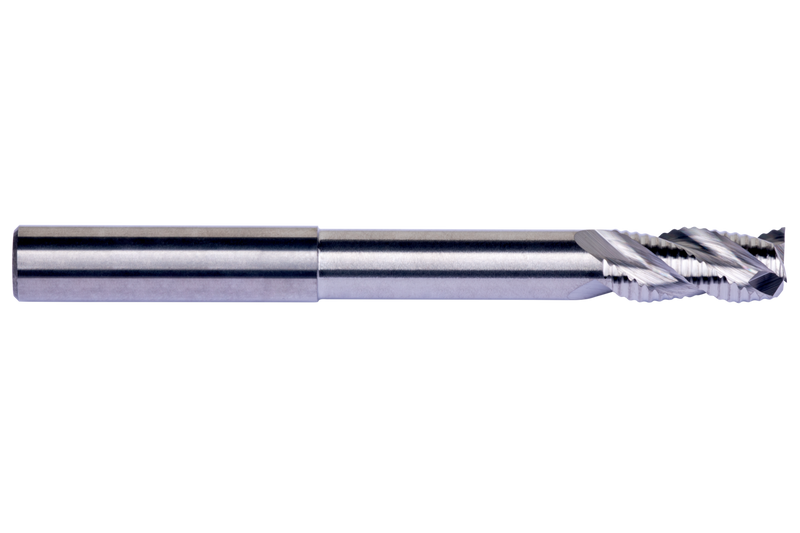

Fraise trois tailles à ébaucher série courte, diamètre 12 mm avec une longueur de coupe de 26 mm, une longueur totale de 100 mm, une portée de 60 mm avec un dégagement de col et des rayons de coin de 0,12 mm, selon la norme DORMER avec une queue cylindrique de 12 mm, en carbure monobloc avec finition brillante, un angle d'hélice de 40° et un angle de coupe de 15° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65412.0
GradeLumineux
Product Number8030309
Product FamilyS654
Insert Geometry
Corner Radius — in (RE)0.0047"
Corner Radius — mm (RE)0.12 mm
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

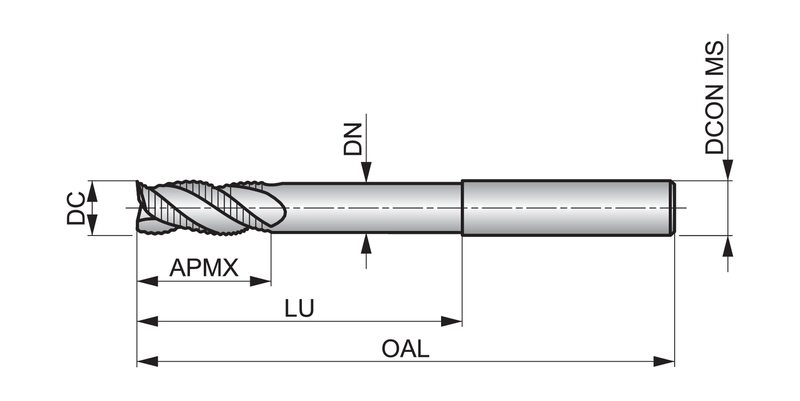

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

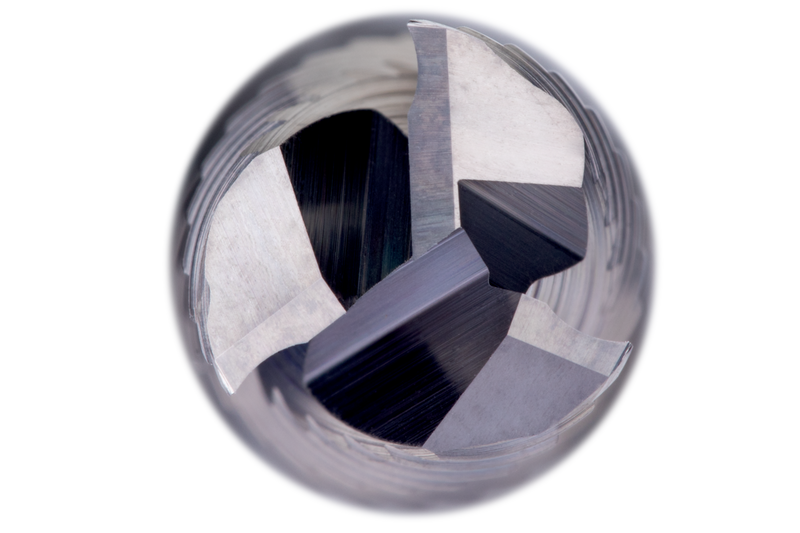

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030309
EAN7320760950319
File Type Download
S65412.0 — 3D Model STP Download
S65412.0 — 2D Model DXF Download
S65412.0 — Line Drawing PDF Download
